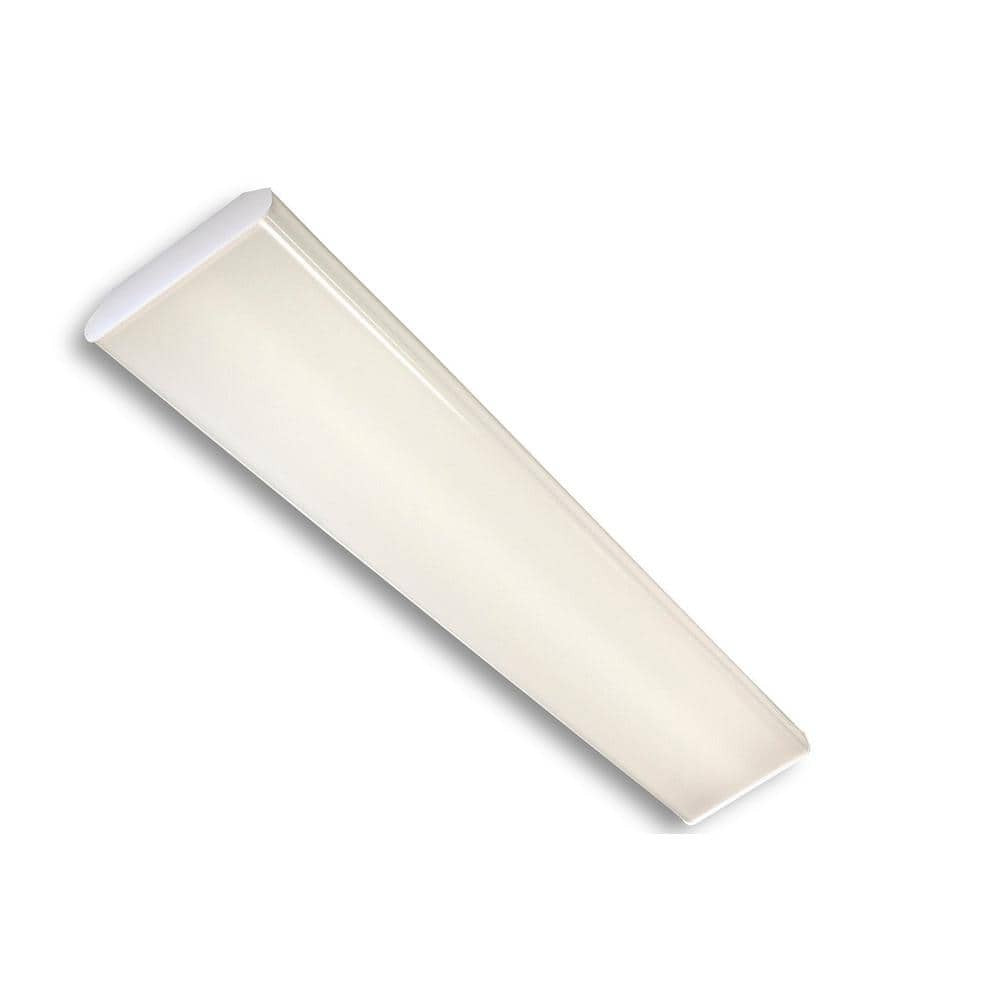

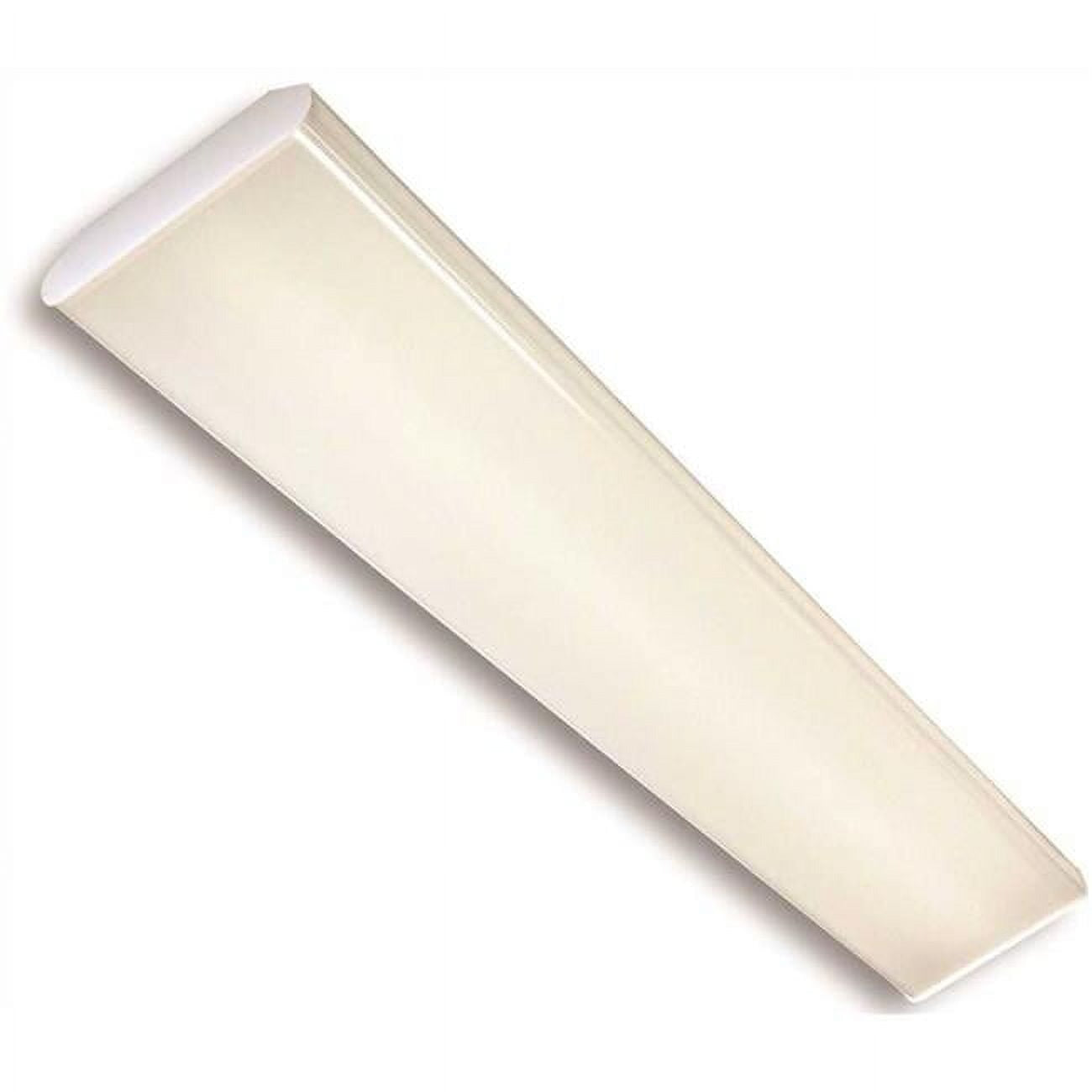

Halco Lighting 10301 LWA-D46U4-40 46W Linear Wraparound Architectural Diffused Lens (4ft) 10301

Product Description

Halco Lighting 10301 is a 4 ft LED linear wraparound with an architectural diffused acrylic lens, rated at 46W and delivering 6,242 lumens (136 LPW). The fixture operates on universal 120-277 VAC input, provides 0-10V continuous dimming to 10%, and is suitable for surface or chain mounting. Its die-formed 22-gauge steel housing with aluminum reflector and damp-location listing supports commercial and utility interior lighting applications with long lumen maintenance.

• 46W integrated LED producing 6,242 lumens with 136 lumens per watt and CRI >80
• Universal 120-277 VAC input with 0-10V continuous dimming (dimmable to 10%), power factor >0.9, THD <20%
• Architectural diffused acrylic lens, die-formed 22-gauge steel housing, surface or chain mounting, L70 >100,000 hours (architectural lens)

Product Highlights

46W 4 ft LED wraparound, 6,242 lm, 120-277 VAC, 0-10V dimming, architectural diffused acrylic lens, L70 >100,000 hours

Product Information

Standard Information

• Brand: HALCO LIGHTING
• Manufacturer Part Number: 10301
