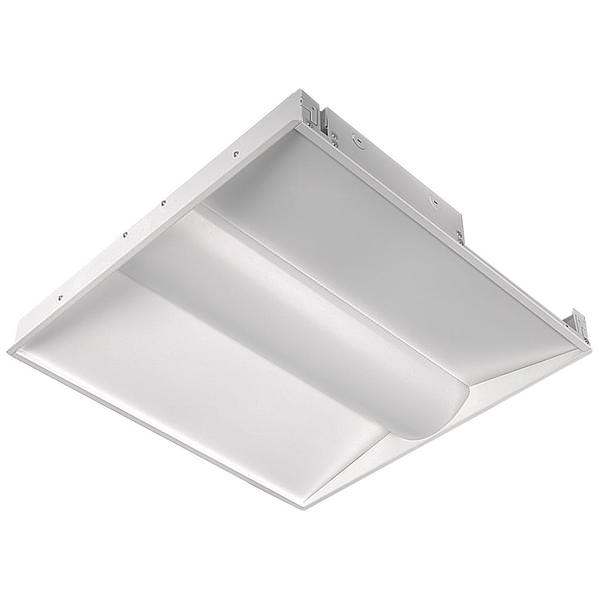

Halco 81976 xProLED volumetric panel gen 3 29W 2x2 22VPL29/840/LED3

Product Description

The HALCO 81976 xProLED Volumetric Panel Gen 3 is an energy-efficient 2x2 LED luminaire, operating at 29W and delivering over 130 lumens/watt. Designed for recessed installation in T-grid ceilings, it provides consistent color and CRI for uniform illumination. This 0-10V dimmable panel operates on 120-277V, making it suitable for commercial, education, and healthcare applications, with a long useful life of 75,000 hours.

• Specification Grade Architectural Design
• Direct Backlit Design Provides Smooth, Uniform Illumination
• Rated for Damp Locations

Product Highlights

Energy-efficient 29W LED panel with 0-10V dimming, 75,000-hour life, and damp location rating.

Product Information

Standard Information

• Brand: HALCO
• Manufacturer Part Number: 81976

Technical Specifications

• Manufacturer: Halco
• Brand: Halco
• Technology: LED
• Max Watts: 29W
• Equivalent Watts: 2 x 32W T8
• Dimmable: Yes (0-10V)
• Wattage Selectable: No
• Color Selectable: No
• Amps: 0.10A
• Input Frequency: 50/60Hz
• Applications: Commercial, Education, Healthcare, Hospitality, Retail Office, Lobby, Hallway, Conference Room, Classroom
• Voltage: 120-277V
• Market: Commercial, Industrial
• Average Life: 75000 hours
• Color Rendering Index (CRI): 80
• Power Factor: 0.9
• Min Operating Temperature: -20C (-4F)
• Max Operating Temperature: 40C (104F)
• Mount Included: No
• Mount Options: T Grid, Surface Mount
• Finish: White
• Trim Color: White
• Lens: Diffused
• Housing Material: Aluminum
• Emergency Backup Available: Yes
• ETL Listed: Yes
• DLC Qualified: No
• Energy Star Certified: No
• Environment: Damp
• IP Rating: IP20
• IC Rated: Yes
• UL Listed: No
• Title 20 Compliant: No
• Title 24 Compliant: No
• Dark Sky Compliant: No
• JA-8 Compliant: No
• RoHS Compliant: Yes
• MPN: 81976
• Sensor Type: Light
• Type: Panel Light
• Alternate MPN: 22VPL29/840/LED3
• Size: 2' x 2'
• Light Output: 3,805 lumens
• Color Temperature: 4,000K
• Dimensions (L x W x H): 23.8 inches x 23.7 inches x 2.8 inches
• Beam Angle: 120°
• Lumens per Watt (LpW): 131
