Halco 55116 Electromagnetic HID Ballast 150W (4-Tap HX Kit) S55/150HX/4T/K

Product Description

Halco 55116 is an electromagnetic HID ballast kit rated for 150W, designed for LU150 high pressure sodium lamps (ANSI S55). The kit employs an HX high-reactor circuit and standard start to regulate lamp current and supports four input taps for 120, 208, 240, and 277 V operation at 60 Hz. The complete kit includes an ignitor, a 14 uF dry capacitor (280 V, 100°C), and mounting hardware.

• 150W electromagnetic high pressure sodium ballast for LU150 lamps (ANSI S55) with HX high-reactor circuit and standard start
• Four input taps: 120 V, 208 V, 240 V, 277 V; 60 Hz operation; rated to operate down to -40°F (-40°C)
• Kit includes ballast, ignitor, 14 uF dry capacitor (280 V, 100°C) and mounting hardware; UL, cUL and cRUus listings; Insulation Class N (200°C)

Product Highlights

4-tap electromagnetic 150W HPS ballast kit for LU150 (ANSI S55) with ignitor and 14 uF capacitor

Product Information

Standard Information

• Brand: HALCO
• Manufacturer Part Number: 55116
• Country of Origin: China

Technical Specifications

• Brand: Halco
• MPN: 55116
• Model: S55/150HX/4T/K
• Manufacturer Part Number: S55/150HX/4T/K
• UPC: 807154551163
• Wattage: 150 W
• Ballast Type: HID electromagnetic high pressure sodium
• Lamp Type: HID / HPS
• Primary Lamp: LU150 (150W) ANSI S55
• ANSI Code: S55
• Circuit Type: HX (high reactor)
• Start Type: Standard
• Input Voltage: 120 V, 208 V, 240 V, 277 V
• Frequency: 60 Hz
• Number of Lamps: 1
• Kit Contents: Ballast, ignitor, 14 uF dry capacitor (280 V, 100°C), mounting hardware
• Capacitor Capacitance: 14 uF
• Capacitor Rating: 280 V, 100°C (dry)
• Ignitor Included: Yes
• Mounting Hardware Included: Yes
• Operating Temperature (Min): -40°F (-40°C)
• Insulation Class: Class N (200°C)
• Listings / Certifications: UL, cUL, cRUus

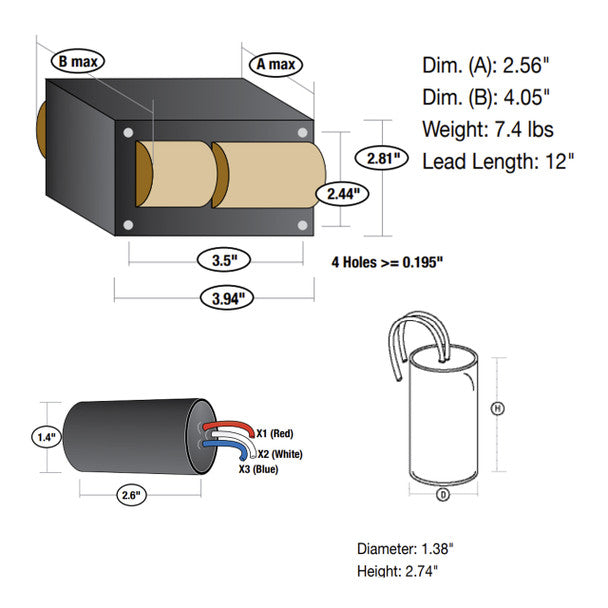

• Ballast Dimensions: 3.94 in x 2.81 in (length x width) - height not specified
• Capacitor Dimensions: 1.38 in x 2.74 in
• Ignitor Dimensions: 2.60 in x 1.40 in
• Country of Origin: China
• Technology: HID
• Ballast Lamp Watts: 150W
• Specific Uses: Commercial and industrial HID lighting applications
• Circuit / Model Code: S55/150HX/4T/K
• Condition: New
