Halco 55108 Electromagnetic Hid Ballast 70W (4-Tap Hx Kit)

Product Description

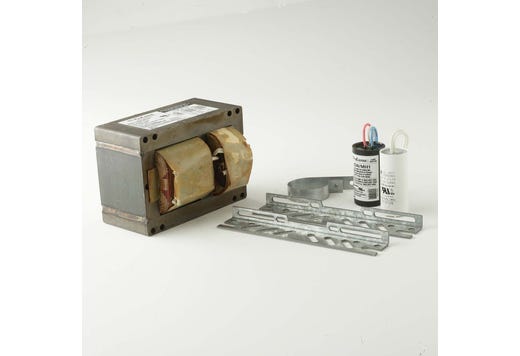

Halco 55108 is an electromagnetic Hid ballast kit engineered to operate a 70W high pressure sodium (HPS) lamp, primary lamp LU70 (ANSI S62). The kit uses a 4-tap Hx configuration to accept 120V, 208V, 240V, or 277V input and employs standard start ignition. It includes a dry capacitor, ignitor, and mounting hardware and is intended for commercial and industrial lighting applications.

• Operates a single 70W LU70 high pressure sodium lamp (ANSI S62) with standard start
• 4-tap Hx input for 120V, 208V, 240V, 277V; includes dry capacitor (7 µF, 280V, 100°C), ignitor, and mounting hardware
• Core-and-coil electromagnetic construction; starts down to -40°F (-40°C); insulation class N (200°C); UL, cUL, cRUus listings

Product Highlights

Electromagnetic 70W HPS ballast kit with 4-tap 120–277V input, includes capacitor and ignitor, ANSI S62 LU70 compatibility.

Product Information

Standard Information

• Brand: HALCO
• Manufacturer Part Number: 55108

Technical Specifications

• Brand: Halco
• Manufacturer Part Number: 55108
• Model: S62/70HX/4T/K
• Product Code: S62/70HX/4T/K
• UPC: 807154551088
• Technology: HID
• Ballast Type: Electromagnetic high pressure sodium (core-and-coil)
• Wattage: 70W
• Number of Lamps: 1
• Primary Lamp: LU70 (ANSI S62)
• ANSI Code: S62
• Start Type: Standard
• Circuit Type: HX-HPF
• Number of Taps: 4
• Input Voltage: 120V, 208V, 240V, 277V
• Capacitor Included: Yes
• Capacitance: 7 uF
• Capacitor Rating: 280V, 100°C
• Ignitor Included: Yes
• Mounting Hardware Included: Yes
• Start Temperature (Min.): -40°F / -40°C
• Insulation Class: Class N (200°C)
• Listings/Certifications: UL, cUL, cRUus

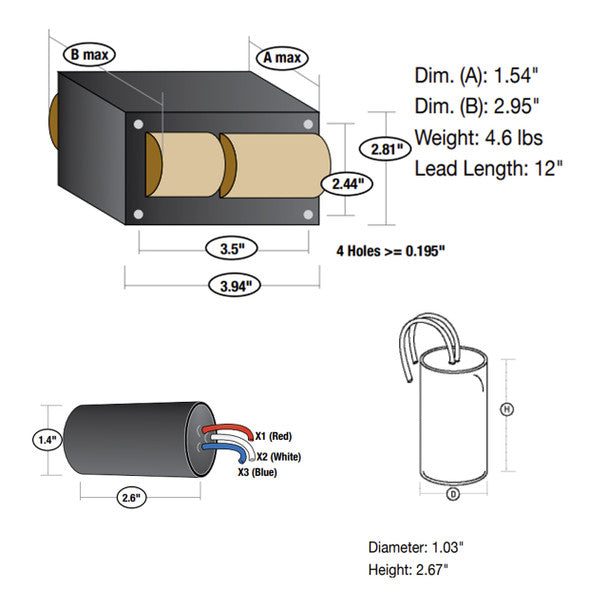

• Dimensions: 3.94 in x 2.81 in
• Capacitor Dimensions: 1.03 in x 2.67 in
• Ignitor Dimensions: 2.60 in x 1.40 in
• Weight: 6.79 lb
• Market: Commercial, Industrial
• Condition: New
• Product ID: 55108
• Model #: 55108
• Ballast Lamp Type: HID-HPS
• Ballast Lamp Watts: 70W
• Power Factor: N/A
