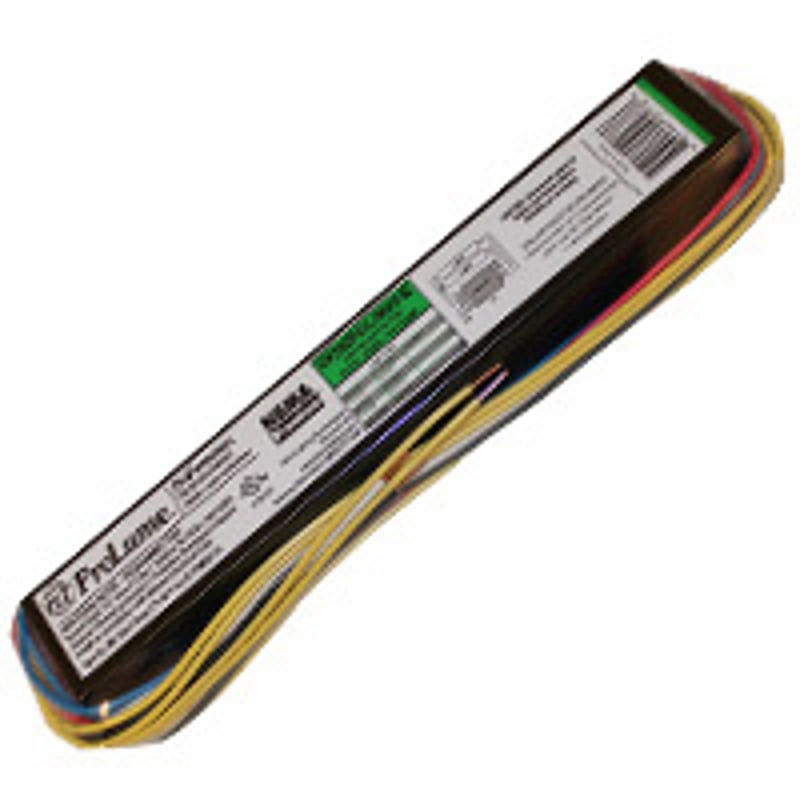

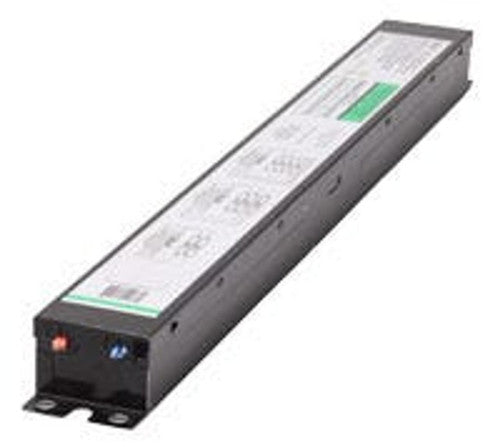

Halco 50186 Electronic Fluorescent Ballast T5 54W 4-Lamp (EP454HO/PS/MV)

Product Description

The Halco 50186 is an electronic fluorescent ballast designed for T5 high-output lamps, intended primarily for four F54T5/HO fixtures. The ballast provides multi-voltage operation (120-277 V) with programmed start to regulate lamp current and reduce lamp stress, supporting lamp wattages in the 49-54 W range and intended for commercial and industrial applications.

• Multi-voltage input: 120-277 V with programmed start for reduced lamp stress
• Designed for four F54T5/HO high-output T5 lamps; available in 2-, 3- or 4-lamp configurations
• Electronic linear ballast, non-dimmable, ballast factor = 1 with high power factor (~0.98) and low THD (~10%)

Product Highlights

4-lamp T5 electronic ballast, 120-277 V, programmed start, for F54T5/HO (49-54 W) lamps

Product Information

Standard Information

• Brand: HALCO
• Manufacturer Part Number: 50186

Technical Specifications

• Manufacturer: Halco
• Manufacturer Part Number: 50186
• Model / Product Code: EP454HO/PS/MV
• UPC: 807154501861
• Type: High Output Linear Ballast
• Ballast Type: Electronic fluorescent linear
• Lamp Type: Fluorescent T5
• Primary Lamp: F54T5/HO
• Lamp Wattage: 54 W (compatible range 49-54 W)
• Number of Lamps: 4
• Available Configurations: 2, 3, or 4 lamps
• Input Voltage: 120-277 V
• Input Frequency: 60 Hz
• Input Current: 0.86 A / 2 A
• Total Wattage: 231 W / 228 W
• Ballast Factor: 1
• Power Factor: 0.98
• Total Harmonic Distortion: 10%
• Start Type: Programmed Start
• Dimmable: No
• Minimum Starting Temperature: -20 °F
• Operating Temperature (max listed): 194 °F
• Thermal Protection: Class A / Class P
• Dimensions: 16.75 in L x 1.8 in W x 1.2 in H
• Weight: 2.7 lbs
• Applications: Commercial, industrial, retail, office, education, healthcare, warehouse, manufacturing, food service
