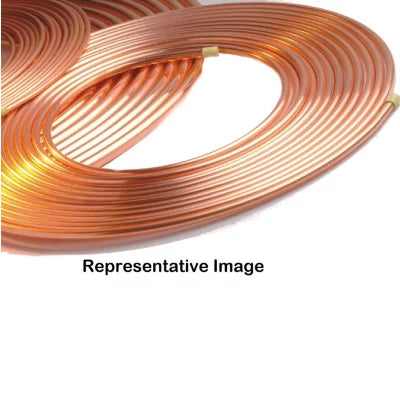

Hailiang v-hlr-050-1125 Refrigeration Copper Coil

Product Description

The HAILIANG v-hlr-050-1125 is a 1.125-inch outer-diameter soft refrigeration copper coil supplied in a 50-foot length. Soft-drawn copper coil is the standard material for refrigerant line fabrication and field-formed suction and liquid lines in residential and light commercial HVAC and refrigeration systems. At 32.75 pounds, the coil is sized for jobs requiring longer straight runs or multiple connections without field splices. HVAC technicians and refrigeration mechanics select this diameter for larger-capacity systems where line sizing calls for 1.125-inch tubing to minimize pressure drop and maintain system efficiency.

This coil is suited for new installations and retrofit work on split-system air conditioners, heat pumps, commercial refrigeration cases, and walk-in cooler line sets where 1.125-inch tubing is specified. The 50-foot length provides enough material for most residential and light commercial runs. The coil format allows the technician to unroll and cut to the required length on site, reducing material waste.

Key Features

• 1.125-inch outer diameter sized for larger-capacity refrigerant line applications
• 50-foot coil length reduces the need for field splices on longer runs
• Soft-drawn copper construction allows field bending without a tubing bender on gradual curves
• Coil format ships compactly and unrolls to the required cut length on site
• Compatible with standard copper tube fittings, swage connections, and brazed joints

Compatibility

Designed as a standard soft-drawn refrigeration copper coil for use in split-system HVAC, heat pump, and commercial refrigeration line set applications requiring 1.125-inch outer-diameter copper tubing.

Installation Notes

Installation of refrigerant copper line sets should be performed by an EPA Section 608 certified HVAC technician or refrigeration mechanic. Isolate and recover any refrigerant from the system before cutting or disconnecting existing lines. Use a proper tube cutter to avoid deforming the tube wall, and deburr all cuts before fitting or brazing. Braze joints in accordance with applicable mechanical codes and purge the line with dry nitrogen to prevent oxidation scale inside the tubing.

Technical Specifications

• Outer Diameter: 1.125 inches
• Length: 50 feet
• Coil Outer Diameter: 37.0079 inches
• Coil Height: 1.125 inches
• Weight: 32.75 pounds
• Material: Copper
• Form: Soft-drawn coil

Standard Information

• Brand: HAILIANG
• Manufacturer Part Number: v-hlr-050-1125
