Hailiang 3/445cest 3/4 in 45 Deg Copper Street Elbow

Product Description

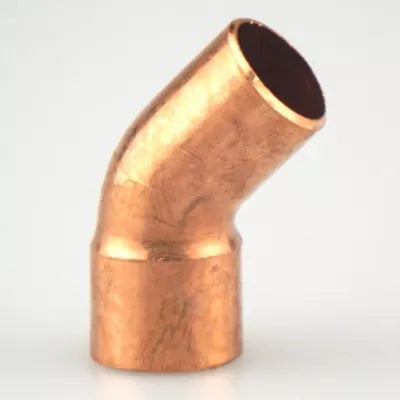

The HAILIANG 3/445cest is a 3/4-inch OD short-radius street elbow made from copper, formed at a 45-degree angle for directional changes in tight spaces. Street elbows feature one male (spigot) end and one female (socket) end, allowing direct connection to fittings without an additional coupling. This fitting is used in sweat-soldered copper piping systems and is installed by licensed plumbers and HVAC technicians in both new construction and service work.

This fitting is suited for residential and light commercial plumbing, hydronic heating, refrigerant piping, and HVAC condensate or water supply lines where a 45-degree directional change is required. The short-radius design keeps offsets compact, making it a practical choice when working in confined mechanical spaces or tight wall cavities.

Key Features

• 45-degree angle provides a gradual directional change without a full 90-degree turn
• Short-radius body minimizes the space needed for the offset
• Street configuration eliminates the need for an extra coupling at one end
• 3/4-inch OD sizing fits standard copper tubing of that diameter
• Copper construction is compatible with sweat soldering using standard lead-free solder and flux

Compatibility

Designed as an OEM-style replacement fitting for standard 3/4-inch OD copper tube systems in plumbing and HVAC applications.

Installation Notes

Installation is performed by a licensed plumber or HVAC technician following applicable IPC and IFGC guidelines. Shut off and drain the line before cutting or fitting. Clean all mating surfaces with emery cloth and apply lead-free flux before sweating the joint. Do not overheat the fitting, as excessive heat can damage the copper or cause flux to burn off before solder flows properly.

Technical Specifications

• Outside Diameter: 3/4 inches
• Angle: 45 degrees
• Radius Type: Short Radius
• End Configuration: Street (one male spigot, one female socket)
• Material: Copper
• Unit of Measure: Each
• Alternate MPN: HL15-295-0090

Standard Information

• Brand: HAILIANG
• Manufacturer Part Number: 3/445cest
