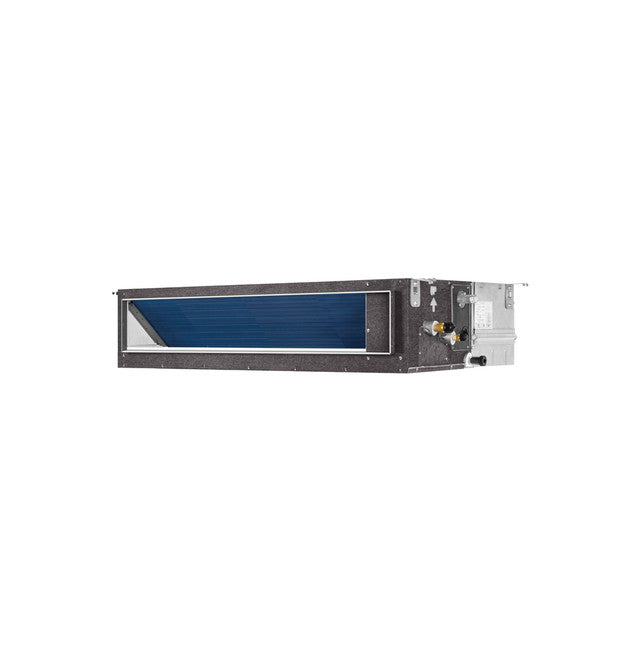

Haier USYM24UCDDA 208-230V 24,000 BTU Ductless Mid-Static Ducted Indoor Unit

Product Description

The Haier USYM24UCDDA is a 208-230V 24,000 BTU ductless mid-static ducted indoor unit. This unit is suited for installations requiring longer ductwork with a static pressure capability of up to 0.6 inches wg. It includes built-in WiFi powered by SmartHQ, allowing for real-time feedback and performance optimization. The compact design, measuring less than ten inches in height, facilitates discreet installation within ceilings.

• Built-in WiFi, Powered by SmartHQ
• Designed for static pressure up to 0.6 inches wg
• Compact design for easy concealment

Product Highlights

The Haier USYM24UCDDA offers significant flexibility in ducted systems, making it ideal for various commercial and residential applications.

Product Information

Standard Information

• Color Appearance: White
• Product Type: Single Zone

Technical Specifications

• Cooling Rated Capacity: 24,000 BTU/Hr
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 3/8 inches
• Net Weight: 65 pounds
• Overall Depth: 27.625 inches
• Overall Height: 9.875 inches
• Overall Width: 43.375 inches
• Suction O.D. Refrigerant Line: 5/8 inches
• Fan Speeds CFM: 927, 844, 667, 564, 482
• Indoor Sound Level: 44 dBA, 43 dBA, 42 dBA, 40 dBA, 38 dBA
• Internal Condensate Pump: Standard
• Max. Drain-Lift Height: 39 3/8 inches
• Max. External Static Pressure: 0.6
• Series: Indoor Units (Compatible with Select Series)
• Style: Mid-Static Ducted
• Unit Type: Indoor
• Parts Warranty: 5-Year limited parts warranty, 10-Year registered limited parts warranty
