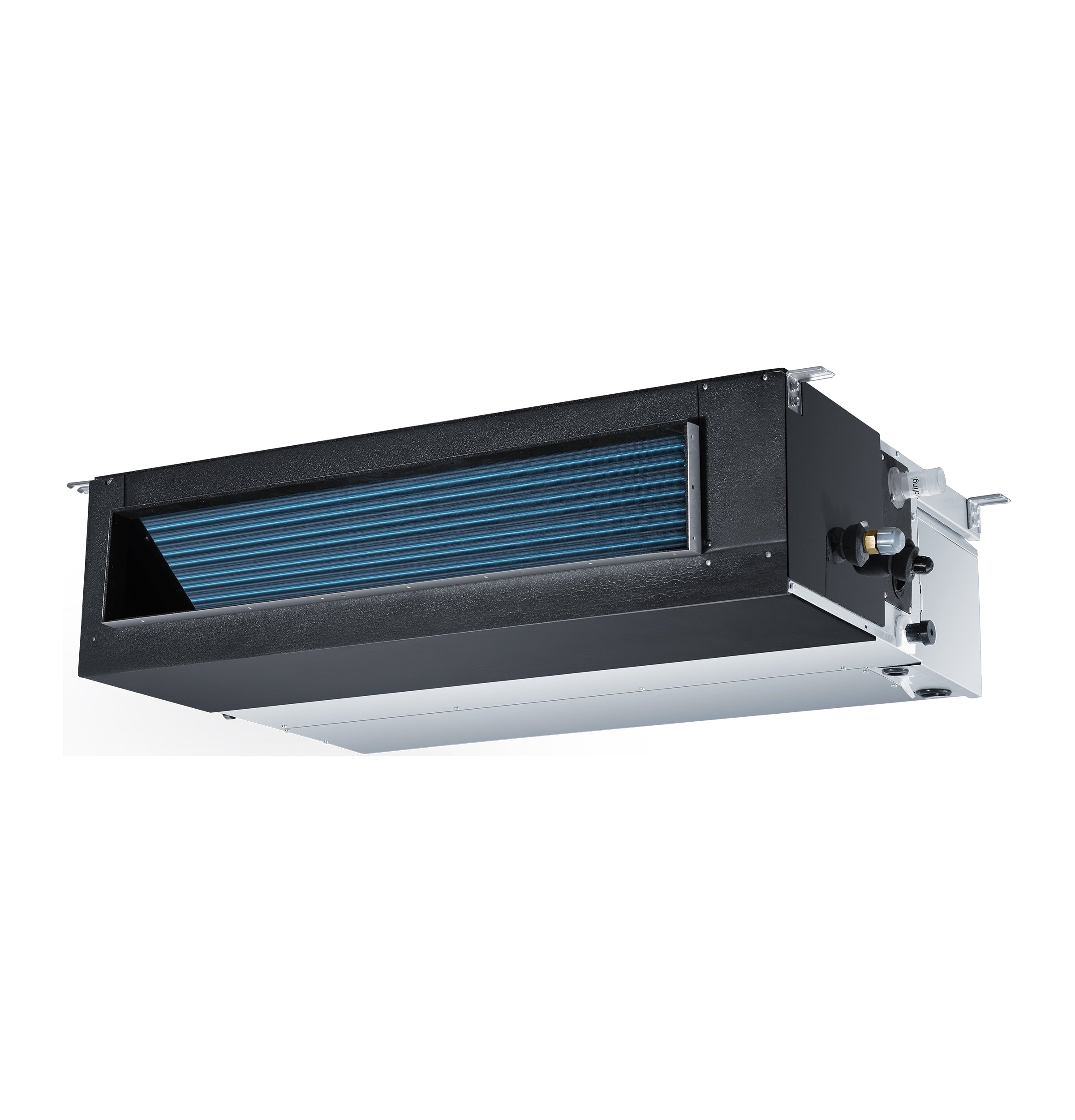

Haier USYM12UCDSA Ductless Mid-Static Ducted Indoor Unit 12,000 BTU

Product Description

The Haier USYM12UCDSA is a ductless mid-static ducted indoor unit operating at 208-230V and delivering twelve thousand BTU. This indoor unit works with select Single and Multi Zone Outdoor Units. It is equipped with built-in WiFi powered by SmartHQ for real-time updates and performance optimization.

• Hydrophilic aluminum fin for efficient water drainage.
• Offers warm start, turbo, and quiet modes.
• Compact design for easy installation and concealment.

Product Highlights

This product allows for longer duct runs making it versatile for various installations.

Product Information

Standard Information

• Brand: Haier
• MPN: USYM12UCDSA

Technical Specifications

• Color Appearance: White
• Cooling Rated Capacity BTU/Hr: 12,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4 inches
• Net Weight: 59.4 pounds
• Overall Depth: 27.5 inches
• Overall Height: 9.75 inches
• Overall Width: 27.5 inches
• Suction O.D. Refrigerant Line: 3/8 inches
• Connected Capabilities: Amazon Alexa, Google Home
• Drainpipe Size: 0.625 inches
• Fan Speeds CFM: 494, 424, 353, 294, 235
• Indoor Sound Level: 47 dBA, 44 dBA, 41 dBA, 38 dBA, 35 dBA
• Internal Condensate Pump: Standard
• Max. Drain-Lift Height: 39.375 inches
• Max. External Static Pressure: 0.6 inches wg
• Product Type: Single Zone, Multi Zone
• Series: Indoor Units (Compatible with Select Series)
• Style: Mid-Static Ducted
• Unit Type: Indoor
• WiFi Connect: Built-In
• SmartHQ Home Built-In: Yes
