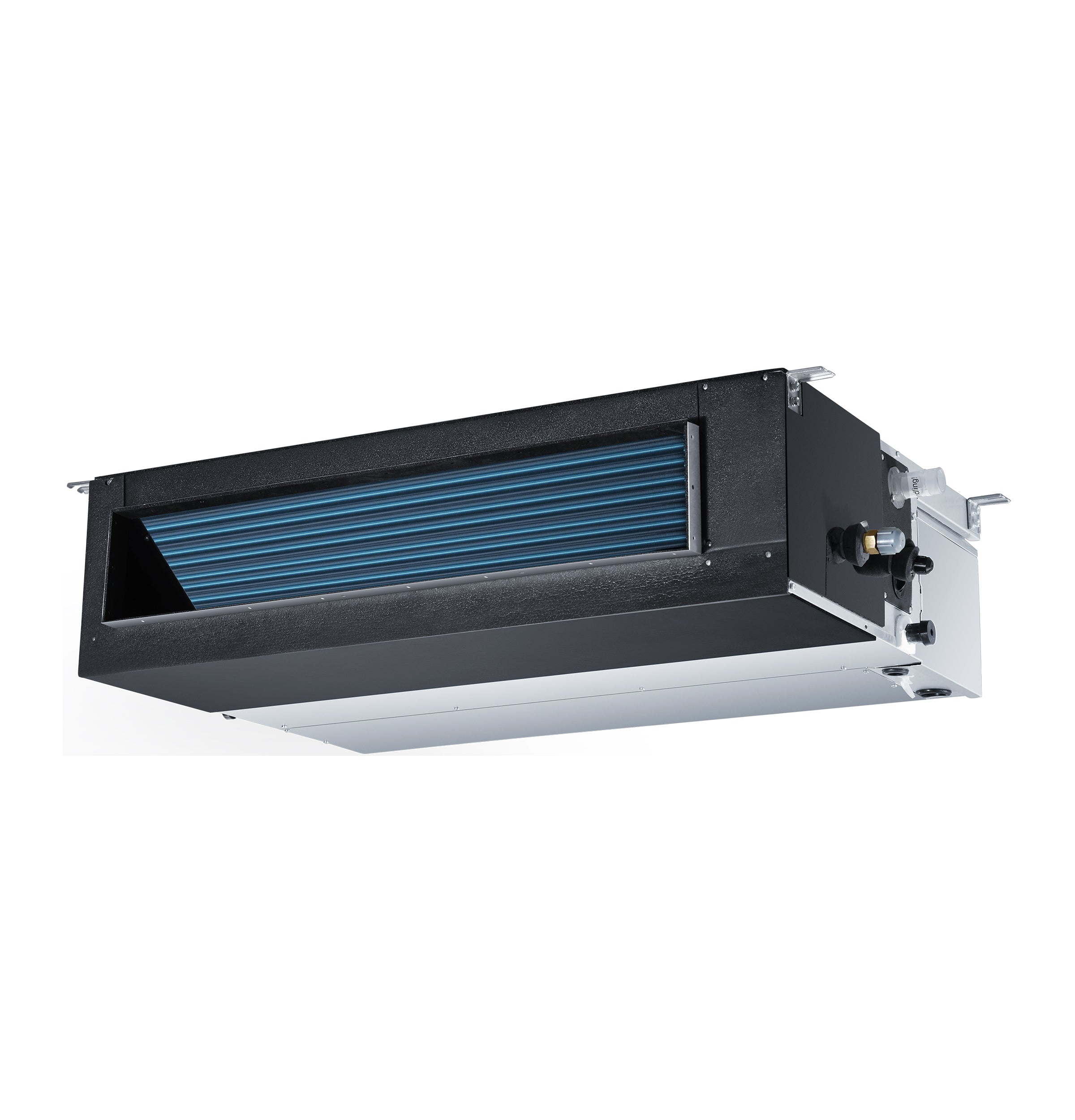

Haier USYM09UCDSA Ductless Mid-Static Ducted Indoor Unit 9000 BTU

Product Description

The Haier USYM09UCDSA is a ductless mid-static ducted indoor unit designed for use with select single and multi-zone outdoor units. This unit operates on 208-230 volts and provides a cooling capacity of 9,000 BTU. It features a hydrophilic aluminum fin that helps water condensation flow away efficiently.

• Compatible with select single and multi-zone outdoor units
• Designed for static pressure up to 0.6 inches wg for extended ductwork options
• WiFi capable for performance monitoring and alerts

Product Highlights

The Haier USYM09UCDSA features various fan speeds and operates quietly, making it suitable for residential and commercial settings.

Product Information

Standard Information

• Make: Haier
• Model code: USYM09UCDSA

Technical Specifications

• Cooling Rated Capacity: 9,000 BTU/Hr
• Voltage/Hertz/Phase: 208-230/60/1
• Refrigerant Line Sizes: Liquid - 1/4 inch, Suction - 3/8 inch
• Indoor Sound Level: 44 dBA to 32 dBA
• Max Drain Lift Height: 39 3/8 inches
• WiFi Connect: Built-In
• Parts Warranty: Limited 5-Year, 10-Year with Registration
