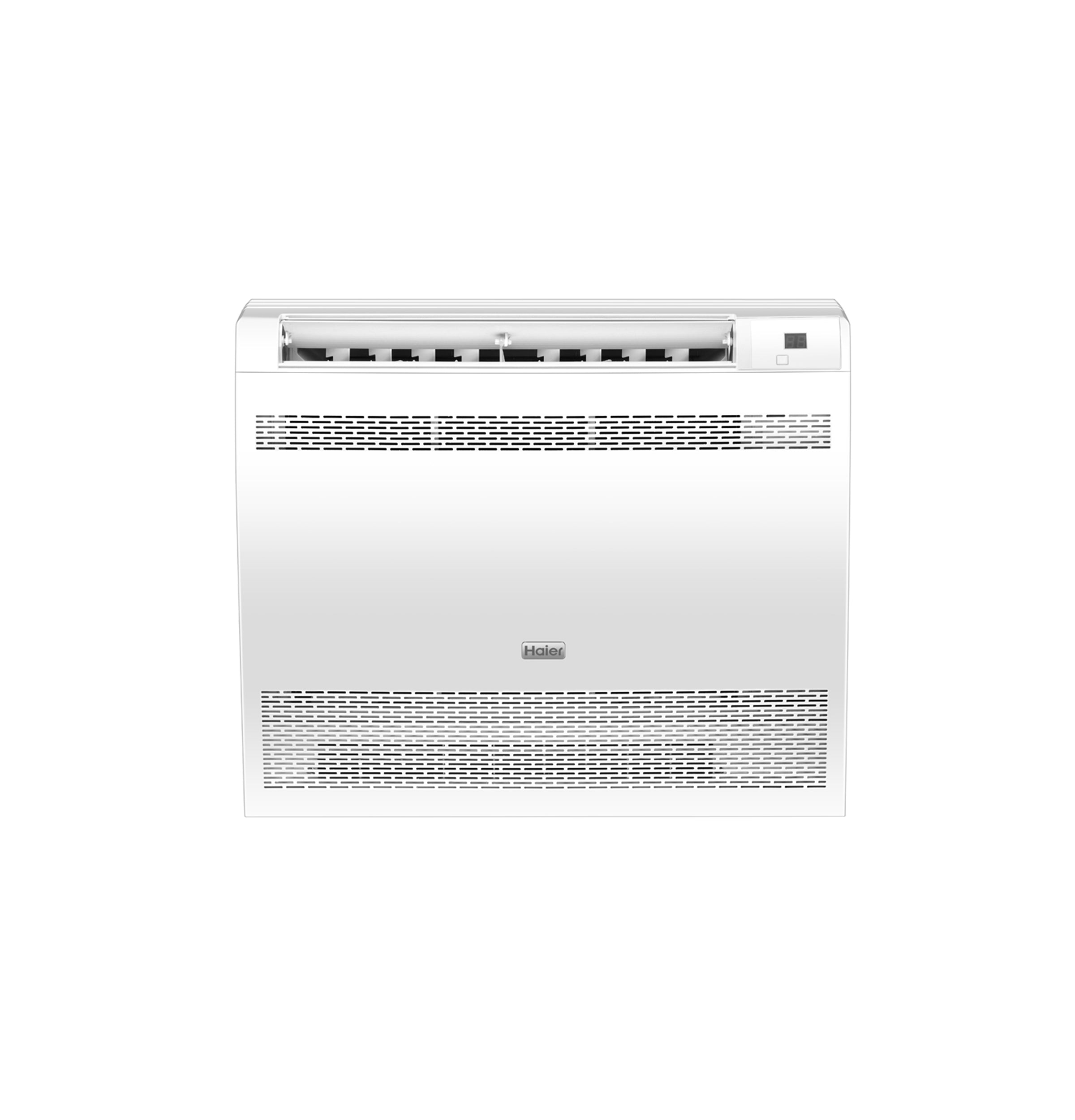

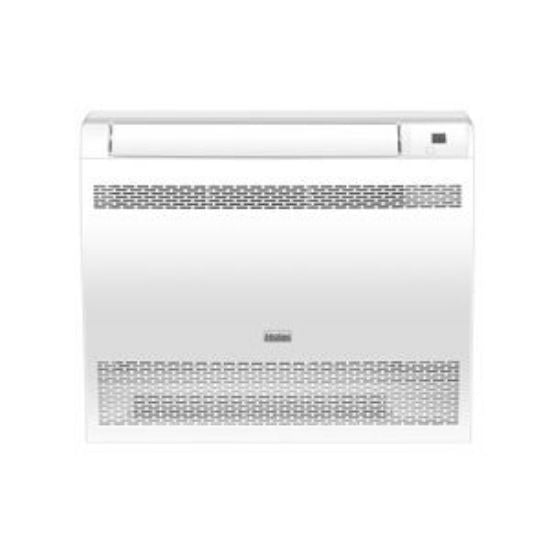

Haier USYF09UCDWA Floor Console - For Multi Zone (Indoor) Line Size OD Gas - 3/8 inches, Line Size OD Liquid - 1/4 inches - 9 MBTU - 3/4 Ton Dimensions: 23-3/4 inches H X 27-1/2 inches W X 8-1/4 inches D

Product Description

The Haier USYF09UCDWA FlexFit Series (Multi Zone) mini split AC can power two to four indoor units with a single outdoor unit. It allows individual temperature control in each space for flexible heating or cooling across multiple rooms in your home or small business. The unit has dimensions of 23-3/4" H x 27-1/2" W x 8-1/4" D and operates at 208/230 V.

• Built-in Wifi, Powered by SmartHQ
• Works With Amazon Alexa
• Works With Google Assistant

Product Highlights

This multi-zone mini-split system offers efficient and customizable climate control for homes and small businesses.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: USYF09UCDWA

Technical Specifications

• Series: Flex Fit
• Voltage Rating: 208/230 V
• Tonnage: 3/4 Ton
• Phase: 1
• MBTU: 9
• Color Appearance: White
• Max. Heating Capacity -22°F BTU/Hr: 4000 Btu
• Style: Console
• Model Type: Indoor
• Fan Speeds CFM: 147, 176, 205, 235, 264
• Product Type: Multi Zone, Single Zone
• Indoor Sound Level: 20, 25, 32, 36, 40 dBA
• Drainpipe Size (in): 0.625
• Voltage/Hertz/Phase: 208-230/60/1
• Cooling Rated Capacity BTU/Hr: 9,000
• Overall Depth: 8.875 in
• Overall Width: 27.5 in
• Overall Height: 23.625 in
• Suction O.D. Refrigerant Line: 3/8"
• Liquid O.D. Refrigerant Line: 1/4"
• Heating Capacity Range (BTU): 3,100 - 18,000
• Cooling Capacity Range (BTU): 3,100 - 12,000
• Heat: Heat Pump
• SEER/EER/HSPF Non-Ducted: 20/11.0/10.0
• Rated Heating Capacity 47°F Btu/hr: 10,000
• Fuse: 15
• Voltage: 208/230
• Wireless Remote Controller: Included
• Air Filter Included: Yes
• Maximum Air Flow: 264 CFM
• Connected Capabilities: Amazon Alexa, Google Home
• Unit Type: Indoor
• WiFi Connect: Built-In
• SmartHQ Home Built-In: True
• Brand: Haier
• SKU: HARUSYF09UCDWA
• Style Name: Arctic (Flexfit) Series
• Application: Residential
• Indoor/Outdoor: Indoor
• BTU (btu/hr): 9000
