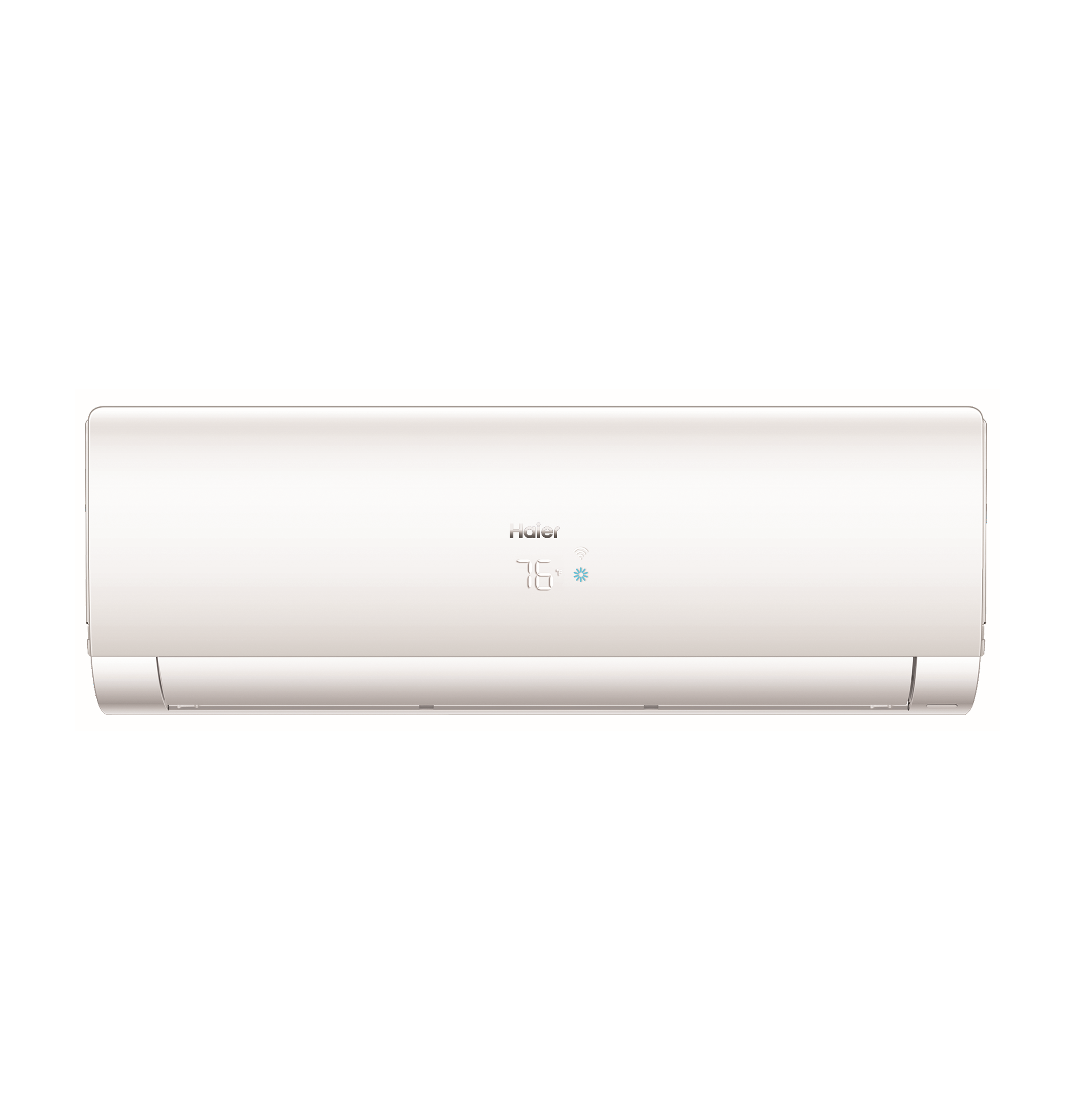

Haier AW30TL2HFA Indoor Unit Tempo Heatpump 2.5 Ton High Wall 23MBTU 18 SEER

Product Description

The HAIER AW30TL2HFA is an indoor unit tempo heatpump with a 2.5 ton high wall, 23MBTU, and 18 SEER rating. A hydrophilic aluminum fin ensures condensing water flows away smoothly. It features a fan that will not blow cold air during heating mode startup and cools or heats the room quickly. Maintain comfort levels while minimizing indoor noise with quiet mode.

• Compatible with 1U3036TL2HFA Outdoor Unit
• Built-In WiFi allows you to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone
• Enjoy hands-free temperature control by connecting your ductless system to Google Assistant or Amazon Alexa

Product Highlights

This HAIER indoor unit offers efficient cooling and heating with smart features and easy installation.

Product Information

Standard Information

• Brand: HAIER
• Manufacturer Part Number: AW30TL2HFA

Technical Specifications

• Brand: Haier
• MPN: AW30TL2HFA
• Cooling Rated Capacity BTU/Hr: 30,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 3/8"
• Net Weight: 41.6 lb
• Overall Depth: 10.875 in
• Overall Height: 14.5 in
• Overall Width: 51.875 in
• Suction O.D. Refrigerant Line: 5/8"
• Connected Capabilities: Amazon Alexa, Google Home
• Fan Speed Stages: 5+ Auto
• Fan Speeds CFM: 875, 810, 660, 520, 440
• Indoor Sound Level: 55 dBA, 53 dBA, 49 dBA, 43 dBA, 38 dBA
• Outdoor Model to Complete Single Zone System: 1U3036TL2HFA
• Product Type: Single Zone
• Series: Indoor Units (Compatible with Select Series)
• Style: Highwall
• Unit Type: Indoor
• WiFi Connect: Built-In
• BTU Cooling Rating: 30,000 BTU/h
• BTU Heating Rating: 34,000 BTU/h
• CFM Airflow: 440-875 CFM
• Depth: 10.875 in
• EER: 9.5
• EER2: 9.5
• HSPF: 9.5
• HSPF2: 9.0
• Height: 14.5 in
• Liquid Line Size: 3/8 in
• Number of Speeds: 5
• Phase: 1 ph
• Product Family: Tempo
• Product Weight: 42 lbs
• Refrigerant Type: R-410A
• SEER: 18.0
• SEER2: 18.0
• Sound Level: 55 dB(A)
• Suction Line Size: 5/8 in
• Tonnage: 2.5 Ton
• Voltage Rating: 208/230 V
