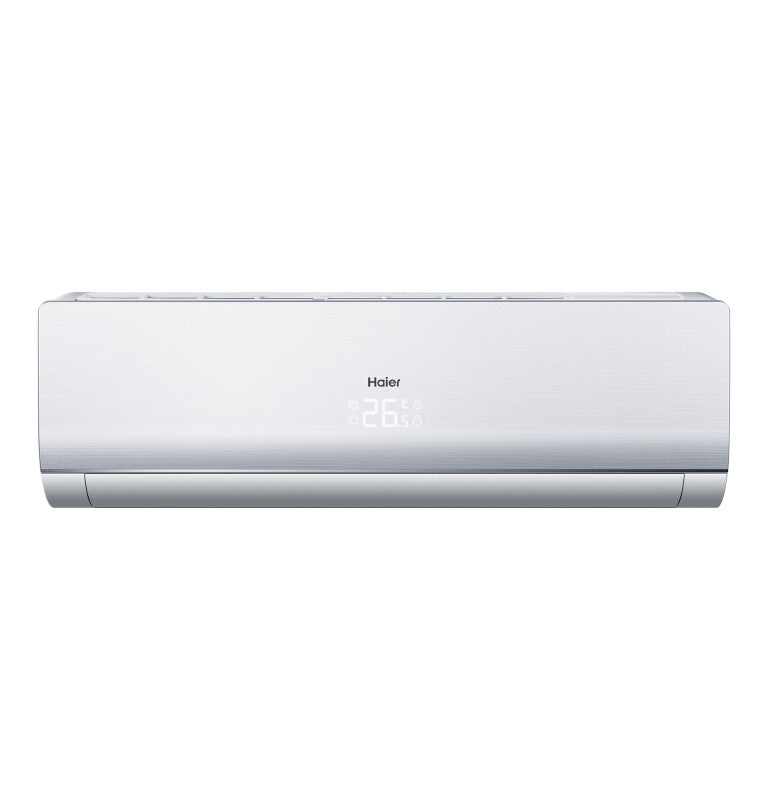

Haier AW24AP2HDB Advanced Plus Series 24,000 BTU Single-Zone Ductless Highwall Indoor Unit

Product Description

The HAIER AW24AP2HDB Advanced Plus Series single-zone ductless highwall indoor unit is designed for efficient heating and cooling. It features ODU compatibility, 3-D air flow for even air distribution, and Blue Fin technology. Compatible with the 1U24AP2HDB outdoor unit, it operates at 208-230V and offers multiple fan speed stages.

• Features ODU Compatibility and is compatible with 1U24AP2HDB Outdoor Unit
• 3-D Air Flow designed to deliver air vertically and horizontally for even distribution
• Blue Fin hydrophilic aluminum fin ensures condensing water flows away smoothly

Product Highlights

This unit provides efficient heating and cooling with features like warm start, turbo mode, and quiet mode. It also has long-distance air supply and a 2-way piping drain for simplified installation.

Product Information

Standard Information

• Brand: HAIER
• Manufacturer Part Number: AW24AP2HDB

Technical Specifications

• Color Appearance: White
• Fan Speed Stages: 5 + Auto
• Indoor Sound Level: 49 dBA, 47 dBA, 42 dBA, 36 dBA, 34 dBA
• Outdoor Model to Complete Single Zone System: 1U24AP2HDB
• Product Type: Wall-Mount Indoor Unit
• Series: Advanced Plus
• Style: Highwall
• System: 24K Advanced Plus
• Unit Type: Indoor
• WiFi Connect: Optional
• WiFi Module: WiFi Adaptable with WiFi Adapter (QAWF01A, sold separately)
• Max. Heating Capacity -15°F BTU/Hr: 14,000
• Max. Heating Capacity 5°F BTU/Hr: 20,000
• Cooling Rated Capacity BTU/Hr: 22,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Suction O.D. Refrigerant Line: 1/2"
• BTU Cooling Rating: 24,000 BTU/h
• BTU Heating Rating: 27,600 BTU/h
• CFM Airflow: 800-1,250 CFM
• Depth: 9.625 in
• EER2: 12.5
• HSPF2: 9.6
• Height: 13.25 in
• Liquid Line Size: 1/4 in
• Number of Speeds: 5
• Phase: 1 ph
• Product Family: Advanced Plus
• Refrigerant Type: R-410A
• SEER2: 20.0
• Sound Level: 49 dB(A)
• Suction Line Size: 1/2 in
• Tonnage: 2.0 Ton
• Voltage Rating: 208/230 V
• Width: 43.875 in
