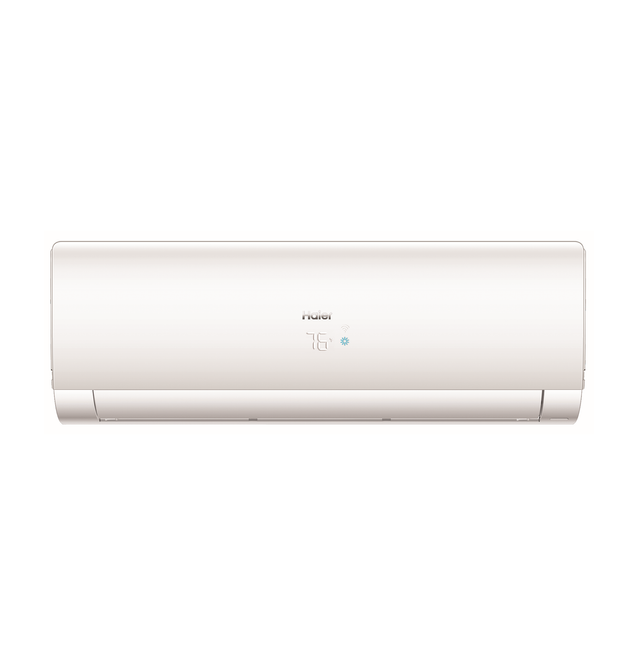

Haier AW12TC2HDA Indoor Unit FlexFit NG 1 Ton High Wall 12K BTU

Product Description

The Haier AW12TC2HDA is an indoor unit designed for FlexFit multi-zone heat pump systems. This high wall unit features built-in WiFi and Smart HQ for convenient control. It operates quietly, down to 22dB(A), and includes a blue fin coating. Compatible with select outdoor units, it ensures efficient and reliable performance.

• Built-in WiFi for remote monitoring and control
• Blue Fin coating for enhanced durability
• Quiet operation, down to 22dB(A)

Product Highlights

This Haier indoor unit combines smart features with quiet operation, making it a great choice for maintaining a comfortable environment.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: AW12TC2HDA

Technical Specifications

• MPN: AW12TC2HDA
• Brand: HAIER
• Series: Flex Fit/Artic Multi-Zone
• Voltage Rating: 208/230 V
• Tonnage: 1.0 Ton
• Phase: 1
• MBTU: 12
• Cooling Rated Capacity BTU/Hr: 12,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Suction O.D. Refrigerant Line: 3/8"
• Connected Capabilities: Amazon Alexa, Google Home
• Fan Speed Stages: 5+ Auto
• Fan Speeds CFM: 426 360 310 265 200
• Indoor Sound Level: 42 dBA 38 dBA 34 dBA 31 dBA 26 dBA
• Outdoor Model to Complete Multi Zone System: Select Multi Zone Outdoor Units
• Outdoor Model to Complete Single Zone System: 1U12TE2HDA
• Product Type: Multi Zone, Single Zone
• Style: Highwall
• Unit Type: Indoor
• WiFi Connect: Built-In
• SmartHQ Home Built-In:
• Cooling Capacity: 12,000 BTU/hr (Range: 4,100–13,000)
• Heating Capacity: 12,000 BTU/hr (Range: 4,500–13,000)
• SEER2 / EER2: 19.0 / 11.0
• HSPF2 (IV / V): 9.2 / 7.2
• Motor Speeds: 5 fan speeds + Auto
• Refrigerant Lines: 1/4" Liquid • 3/8" Suction (Flare connections)
• Max Line Length / Height: 66 ft / 33 ft
• Built-in Features: WiFi, Auto Louver, Child Lock, Dry Mode
• EER2: 11.0
• HSPF2: 9.2
• Liquid Line Size: 1/4 in
• Number of Speeds: 5
• Product Family: FlexFit
• Refrigerant Type: R-410A
• SEER2: 19.0
• Sound Level: 42 dB(A)
• Suction Line Size: 3/8 in
• Make: Haier
• Manufacturer: Haier
• Category: Cooling
• Model code: AW12TC2HDA
• Power: 10,000 ~ 15,000 BTU/H
• Refrigerant Lines - Liquid/Suction: 1/4 / 3/8 inches
• Electrical: 208-230/1/60 V/phase/Hz
