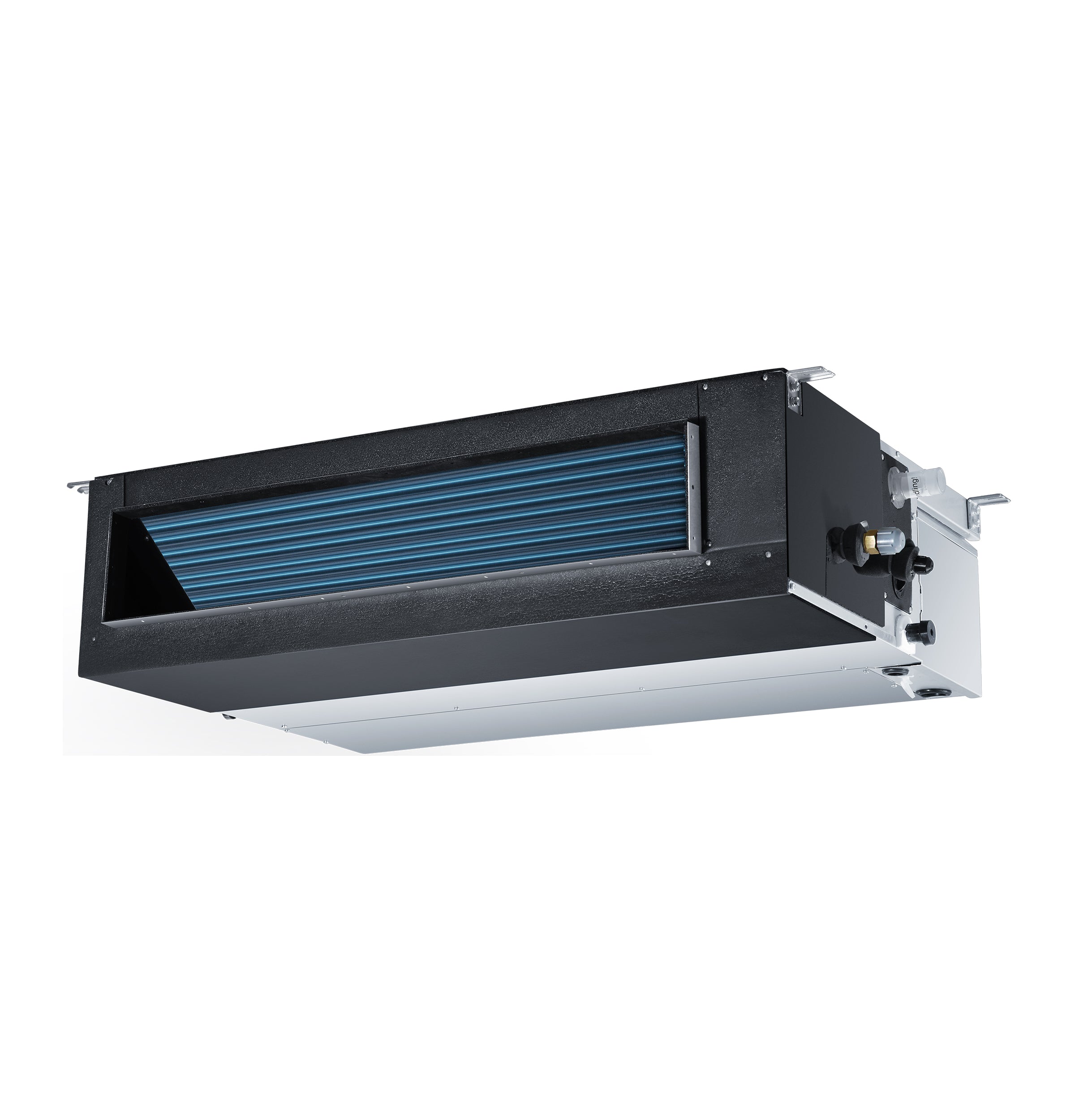

Haier AM36LP2VHA FlexFit Single-Zone Series High Static Duct Indoor Unit 35,000 BTU Cooling Capacity, 37,500 BTU Heating Capacity 208/230V

Product Description

The Haier AM36LP2VHA FlexFit Single-Zone Series High Static Duct Indoor Unit requires an additional outdoor unit. It features a 35,000 BTU cooling capacity and a 37,500 BTU heating capacity, operating at 208/230V. This unit delivers air vertically and horizontally for even distribution and has five-speed modes, including turbo and quiet modes.

• 3D Airflow delivers air vertically and horizontally for even distribution.
• Features turbo mode to cool or heat the room quickly and quiet mode to minimize noise.
• Optimized fan motor and blower design enable up to 60 feet of airflow.

Product Highlights

This high static duct indoor unit provides efficient heating and cooling with multiple fan speeds and quiet operation.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: AM36LP2VHA

Technical Specifications

• Product Type: Single Zone
• Series: FlexFit Pro Series
• Heating Capacity (BTU): 37,500
• Cooling Capacity (BTU): 35,000
• Heat: Heat Pump
• Voltage: 208/230V
• Cycle: 60
• Phase: 1
• Decibel Rating: 32 dBA
• Maximum Air Flow: 1100 CFM
• Number of Cooling Speeds: 4
• Air Filter Included: Yes
• Color Appearance: White
• Style: High-Static Ducted
• Model Type: Indoor
• Max. Drain-Lift Height (in): 27.5625
• Fan Speeds CFM: 1000, 790, 840, 900, 980
• Indoor Sound Level: 23, 25, 28, 32, 34 dBA
• Drainpipe Size (in): 1.25
• Max. External Static Pressure: 0.6
• Internal Condensate Pump: Standard
• System: 36K FlexFit Pro
• Cooling Rated Capacity BTU/Hr: 35,000
• Voltage/Hertz/Phase: 208-230/60/1
• Suction O.D. Refrigerant Line: 5/8"
• Liquid O.D. Refrigerant Line: 3/8"
• Overall Depth: 28.375 in
• Overall Width: 59 in
• Overall Height: 9.875 in
• Model code: AM36LP2VHA
• Power: 30,000 ~ 40,000 BTU/H
• Refrigerant Lines - Liquid/Suction: 3/8 / 5/8 inches
