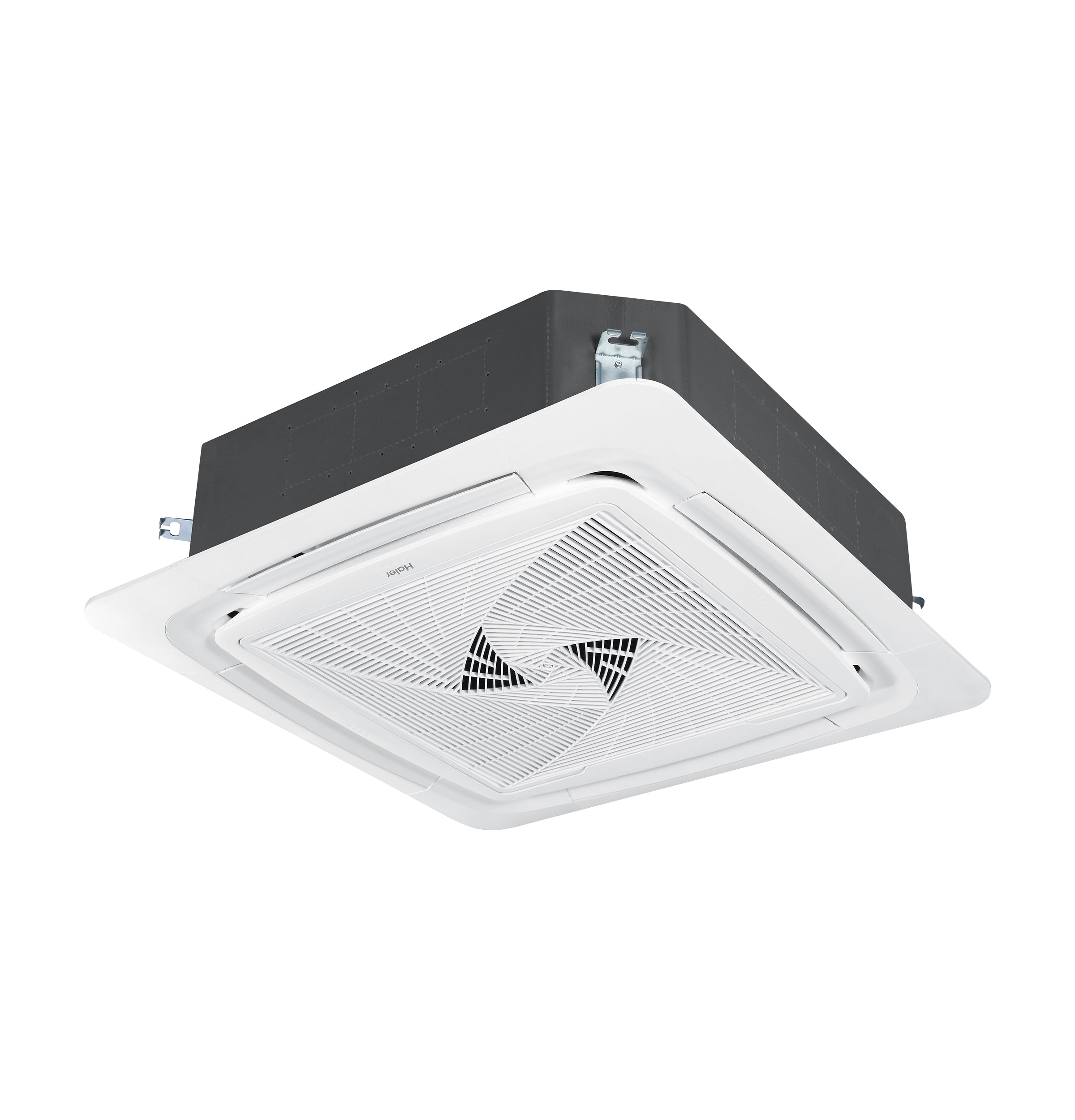

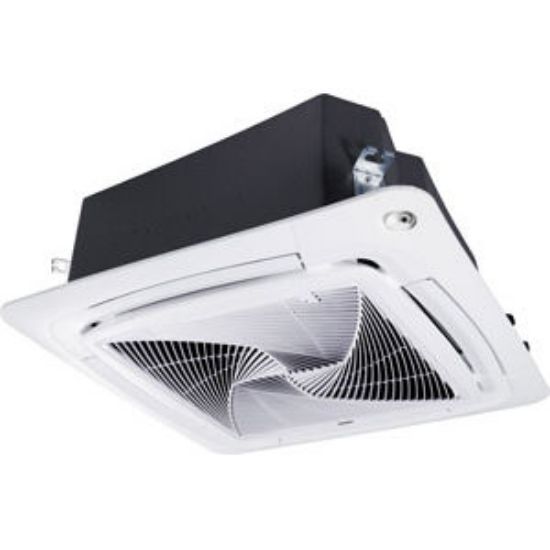

Haier AL36LP2VHA FlexFit Pro 36,000 BTU Single-Zone Ductless Large Cassette Indoor Unit

Product Description

The Haier AL36LP2VHA FlexFit Pro is a 36,000 BTU single-zone ductless large cassette indoor unit. Designed for indoor use, it operates on 208-230V and is compatible with the PB-950KB cassette panel (sold separately). This unit features a standard internal condensate pump and a 4" round fresh air knock-out. It has a cooling rated capacity of 35,000 BTU/Hr.

• Features quiet mode to minimize indoor noise.
• Offers turbo mode for quickly cooling or heating a room.
• Provides individual louver control for enhanced flexibility.

Product Highlights

The Haier AL36LP2VHA is ideal for residential applications, providing efficient and customizable climate control with its various operation modes and flexible control options.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: AL36LP2VHA

Technical Specifications

• Color Appearance: White
• Style: Large Cassette
• Model Type: Indoor
• Series: FlexFit Pro
• Max. Drain-Lift Height (in): 39.375
• Fan Speeds CFM: 400, 450, 550, 650, 700
• Indoor Sound Level: 34, 38, 42, 45, 47 dBA
• Drainpipe Size (in): 1
• Product Type: Single Zone
• Grille Model: PB-950KB (2" H x 37-3/8" W x 37-3/8" D)
• Internal Condensate Pump: Standard
• System: 36K FlexFit Pro
• Cooling Rated Capacity BTU/Hr: 35,000
• Voltage/Hertz/Phase: 208-230/60/1
• Net Weight: 68.3 lb
• Suction O.D. Refrigerant Line: 5/8"
• Liquid O.D. Refrigerant Line: 3/8"
• Overall Depth: 33.125 in
• Overall Width: 33.125 in
• Overall Height: 9.625 in
• Brand: Haier
• SKU: HARAL36LP2VHA
• Application: Residential
• Make: Haier
• Manufacturer: Haier
• Category: Cooling
• Model code: AL36LP2VHA
• Power: 30,000 ~ 40,000 BTU/H
• Refrigerant Lines - Liquid/Suction: 3/8 / 5/8 inches
