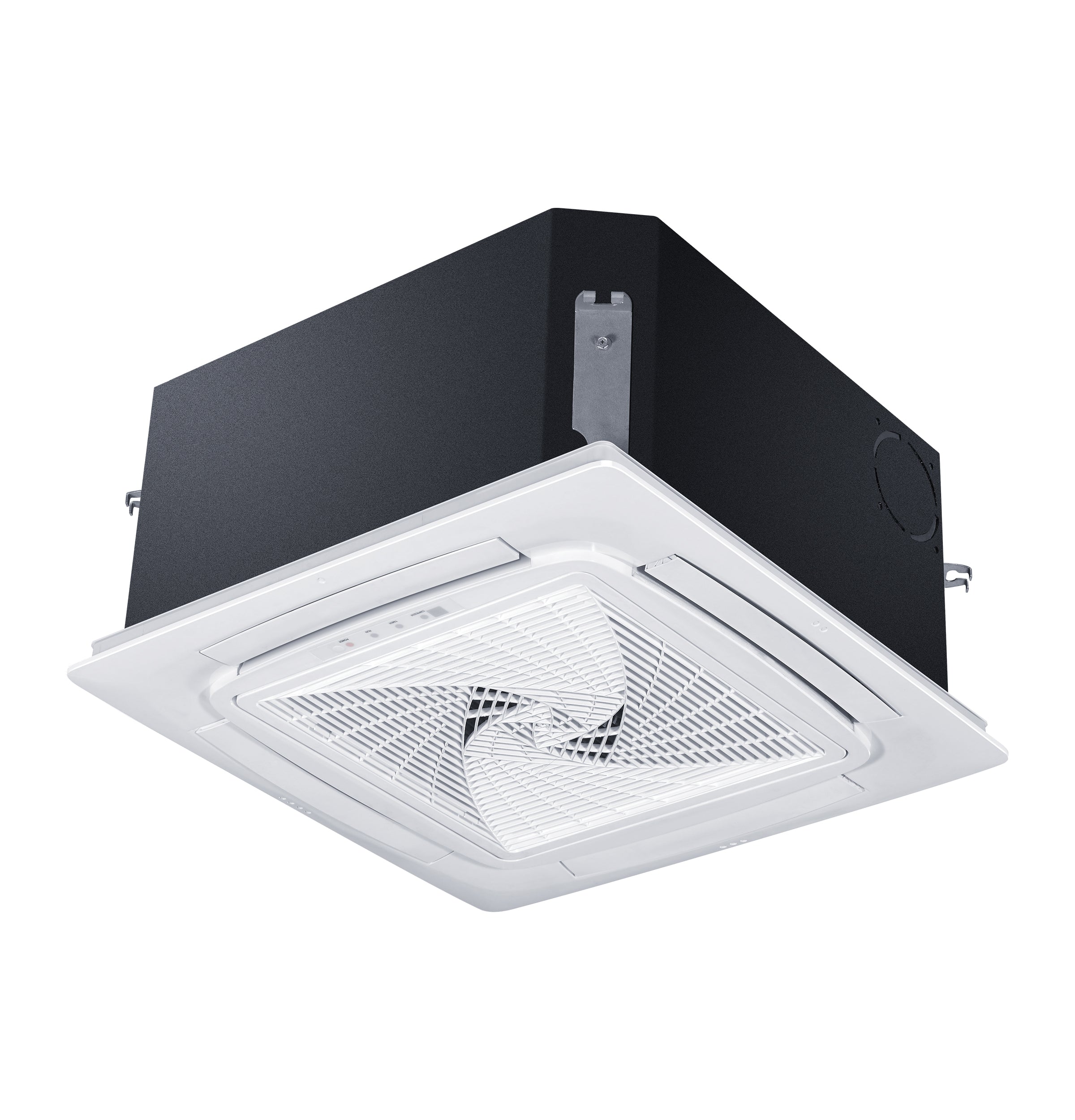

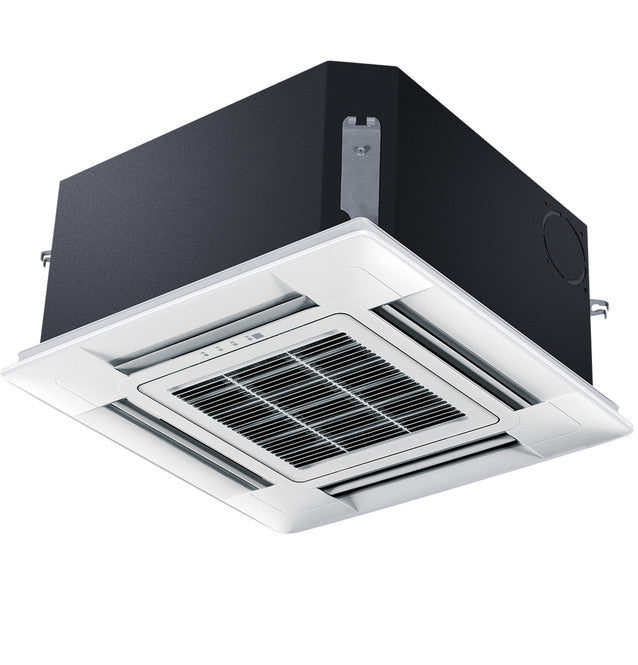

Haier AB18SC2VHA Indoor Unit FlexFit Cassette 18K BTU 208/230 Volt 1 Phase

Product Description

The Haier AB18SC2VHA is an indoor unit FlexFit cassette operating at 208/230V. Designed for multi-zone systems, it allows individual temperature control in multiple rooms when paired with a compatible outdoor unit. It is suitable for residential and commercial applications. Grille Model PB-700KB sold separately.

• Built-in Wifi, Powered by SmartHQ™ for real-time feedback and optimized performance.
• Features 3D Airflow for even air distribution.
• Offers turbo and quiet modes for rapid cooling/heating and minimized noise.

Product Highlights

This FlexFit series cassette provides year-round comfort with flexible control options and is compatible with wired and wireless controllers.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: AB18SC2VHA

Technical Specifications

• Series: Flex Fit
• Voltage Rating: 208/230 V
• Tonnage: 1.5 Ton
• Phase: 1
• MBTU: 18
• Color Appearance: White
• Drainpipe Size (in): 1 1/4
• Fan Speeds CFM: 470 410 365 295 252
• Indoor Sound Level: 45 dBA 42 dBA 40 dBA 36 dBA 32 dBA
• Internal Condensate Pump: Standard
• Max. Drain-Lift Height (in): 19 5/8
• Product Type: Single Zone Multi Zone
• Style: Compact Cassette
• Unit Type: Indoor
• Max. Heating Capacity -22°F BTU/Hr: 11,000 Btu
• Cooling Rated Capacity BTU/Hr: 17,000
• Voltage/Hertz/Phase: 230-208/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Suction O.D. Refrigerant Line: 1/2"
• Heating Capacity (BTU): 19,000
• Cooling Capacity (BTU): 18,000
• Heat: Heat Pump
• Voltage: 208/230V
• Cycle: 60
• Width: 22.4375"
• Height: 10.25"
• Depth: 22.4375"
• Wireless Remote Controller: Included
• Decibel Rating: 45 dBA
• Maximum Air Flow: 470 CFM
• Number of Cooling Speeds: 5
• Air Filter Included: Yes
• Adjustable Air Direction: Yes
• Model Type: Indoor
• Application: Residential
• Indoor Unit Type: Ceiling Cassette
• Brand: Haier
• SKU: HARAB18SC2VHA
• Style Name: Flexfit
• Volts: 208/230V
• Mini-Split Multi-Zone: Mini-Split Multi-Zone
• Indoor/Outdoor: Indoor
