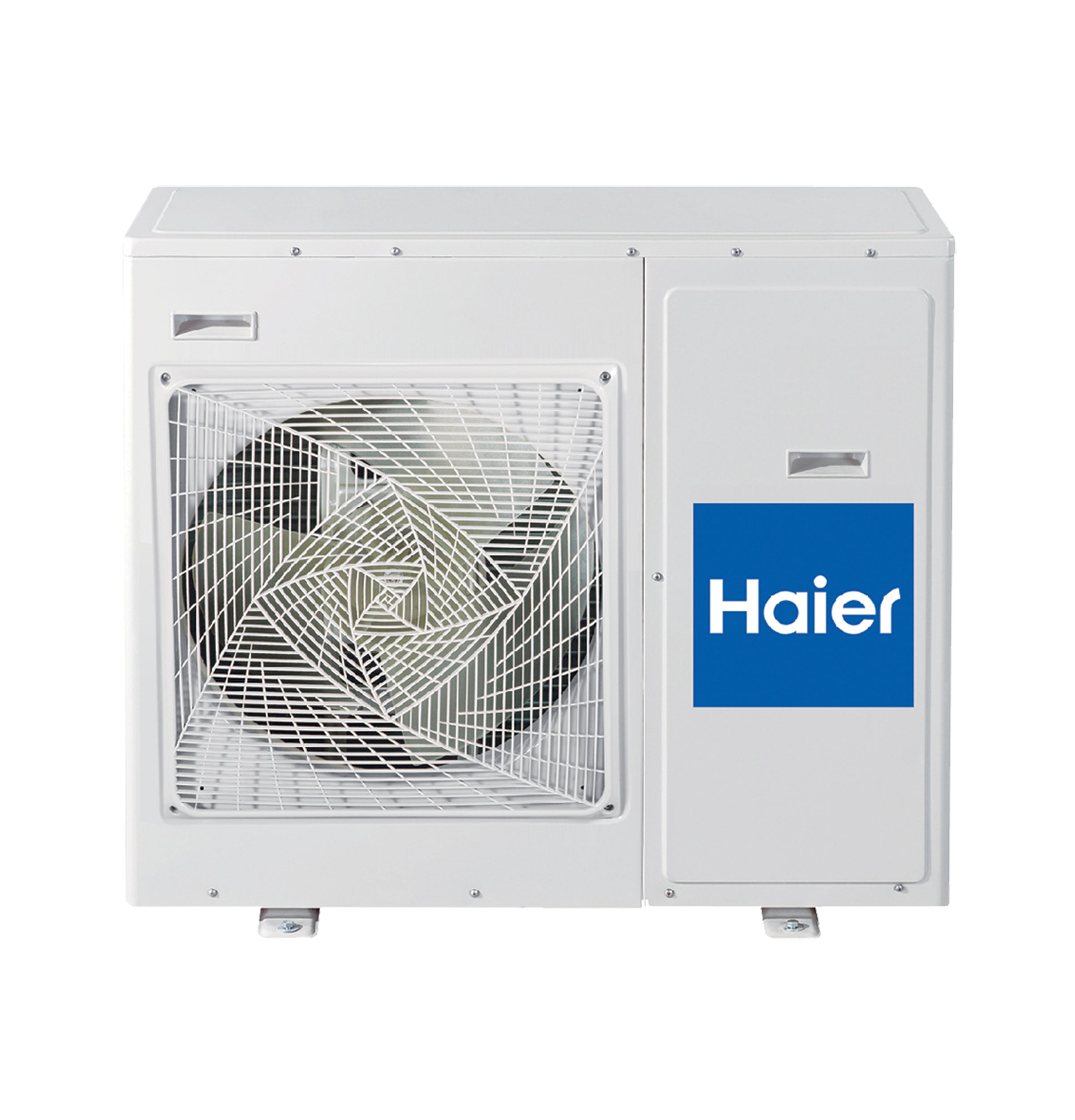

Haier 4U36MS2VHB Inverter Driven Heat Pump for Flex Fit Multi Zone (Outdoor Unit) 36 MBTU

Product Description

The Haier 4U36MS2VHB is an inverter-driven heat pump designed for Flex Fit multi-zone systems. This outdoor unit operates at 208/230V and delivers 36 MBTU of power. It features a DC inverter-driven rotary compressor and is compatible with select Haier Multi Zone indoor units. The system supports 2-4 indoor models.

• Features a hydrophilic aluminum fin for smooth water flow.
• Compatible with QAWB40A wind baffle.
• Equipped with A-PAM DC inverter technology for high efficiency.

Product Highlights

This multi-zone heat pump offers efficient and quiet operation for residential and commercial spaces.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: 4U36MS2VHB

Technical Specifications

• Series: Flex Fit
• Voltage Rating: 208/230 V
• Tonnage: 3 Ton
• SEER: 16
• Phase: 1
• MBTU: 36
• EER: 8.5
• Zone(s): 3 - 4
• Color Appearance: White
• Style: Outdoor
• Model Type: Outdoor
• Maximum Line Length (Ft/M): 82/25
• Product Type: Ductless
• Rotary Compressor: DC Inverter Driven Rotary
• Maximum Height (Ft/m): 50/15
• Compatible Indoor Models: Select Haier Multi Zone Indoor Units
• Temperature Range - Heating Mode: -4-75 F (-20-24 C)
• Temperature Range - Cooling Mode: 14-115 F (-10-46 C)
• Number of Indoor Models: 2-4
• Connections: Flare
• System: 36K FlexFit Multi Zone
• Fan Speed RPM: 300 - 900
• Outdoor Noise Level: 56.0 dBA
• Outdoor Airflow CFM: 300-900
• Voltage/Hertz/Phase: 208-230/60/1
• Maximum Fuse Size A: 30
• Minimum Circuit Amp: 23
• Suction O.D. Refrigerant Line: 3/8" - 3/8" - 3/8" - 1/2"
• Wire Size between ID and OD: 14/4 AWG Stranded
• Liquid O.D. Refrigerant Line: 1/4" - 1/4" - 1/4" - 1/4"
• Factory Charge (ounces): 113.0
• Cooling Rated Capacity BTU/Hr: 34,000
