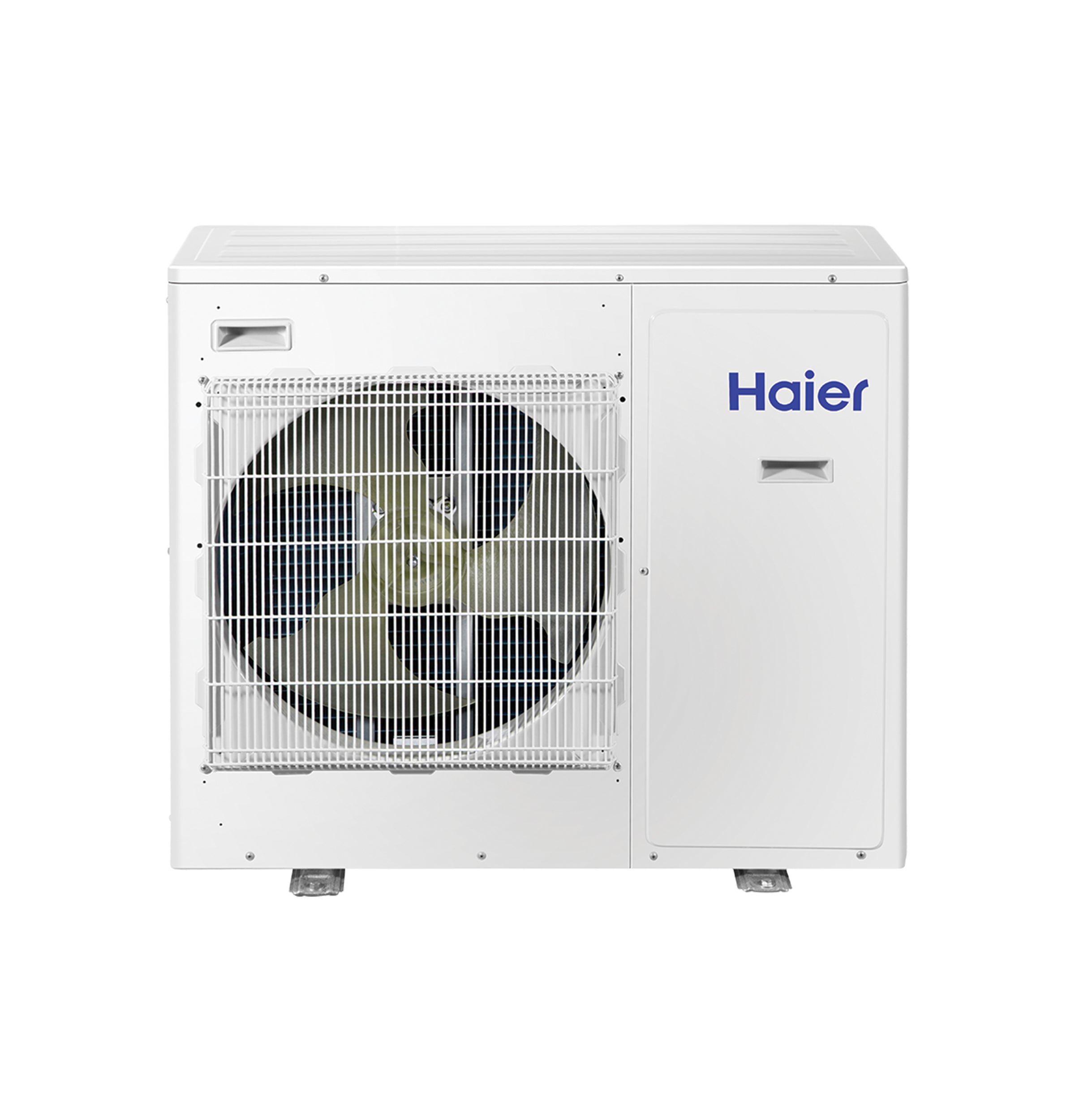

Haier 3U24EH2VHA Arctic Series 208-230V 3 Zones 24,000 BTU Multi-Zone Ductless Mini-Split Outdoor Heat Pump System

Product Description

The Haier 3U24EH2VHA Arctic Series is a 208-230V, 24,000 BTU multi-zone ductless mini-split outdoor heat pump system. It features a DC inverter-driven rotary compressor and a base pan heater. This outdoor unit supports 2-3 indoor models and uses flare connections. It operates efficiently in cooling mode from 14-115 F and in heating mode from -15-75 F.

• High Efficiency Ductless Heat Pump
• Non-Ducted SEER of 18.5 and HSPF of 10.5
• Compatible with QAWB46A Wind Baffle and UAWB80A Snow Hood

Product Highlights

The Haier Arctic Series offers efficient, quiet operation with wind baffle compatibility for enhanced performance in various conditions.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: 3U24EH2VHA

Technical Specifications

• Color Appearance: White
• Style: Outdoor
• Model Type: Outdoor
• Maximum Line Length (Ft/M): 196/50
• Compatible Indoor Models: Select Haier Multi Zone Indoor Units
• Series: Arctic Multi
• Maximum Height (Ft/m): 50/15
• Rotary Compressor: DC Inverter Driven Rotary
• Base Pan Heater: Standard
• Temperature Range - Cooling Mode: 14-115 F (-10-46 C)
• Temperature Range - Heating Mode: -15-75 F (-26-24 C)
• Factory Charge (ounces): 99 oz
• Maximum Fuse Size A: 25
• Outdoor Noise Level: 56 dBA
• Number of Indoor Models: 2-3
• Connections: Flare
• Product Type: Multi Zone
• System: 24K Arctic Multi Zone
• Cooling Rated Capacity BTU/Hr: 22,000
• Voltage/Hertz/Phase: 208-230/60/1
• Minimum Circuit Amp: 16
• Net Weight: 167 lb
• Suction O.D. Refrigerant Line: 3/8" 3/8" 1/2"
• Liquid O.D. Refrigerant Line: 1/4" - 1/4" - 1/4"
• Overall Depth: 13.5 in
• Overall Width: 37.375 in
• Overall Height: 33.125 in
• Unit Type: Outdoor
