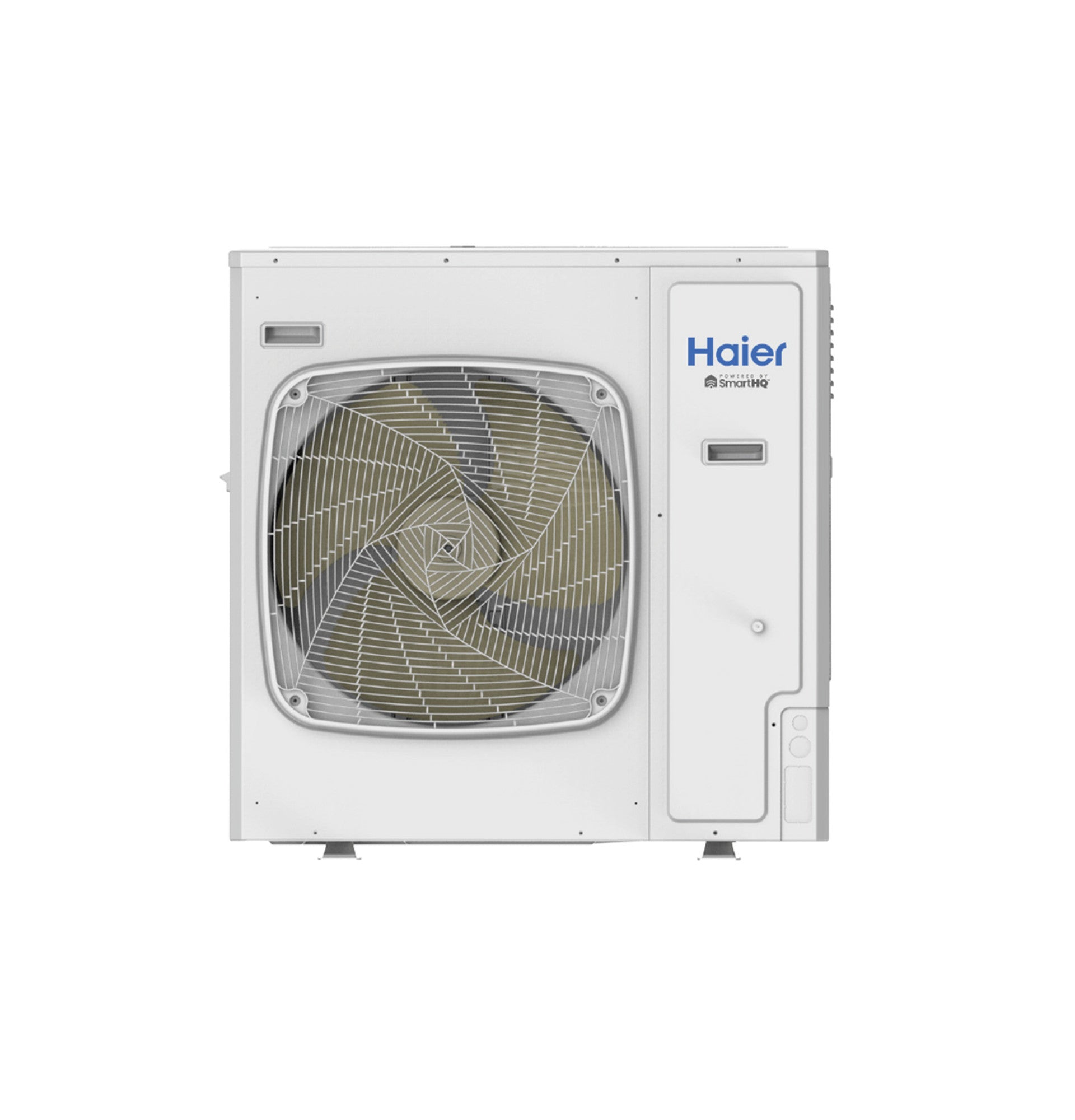

Haier 1U3036LP2HDA Arctic Series Ductless Mini-Split Outdoor Heat Pump System

Product Description

The HAIER 1U3036LP2HDA is an Arctic series ductless mini-split outdoor heat pump system. This single zone unit features a DC inverter driven rotary compressor and a blue fin for smooth water flow. It operates on 208-230V and offers cooling and heating modes. Compatible with multiple indoor models for flexible installation.

• High Efficiency Ductless Heat Pump with A-PAM DC Inverter.
• Features a base pan heater to prevent freezing.
• Offers a cooling temperature range of -4-115 F and a heating temperature range of -15-75 F.

Product Highlights

The HAIER 1U3036LP2HDA is designed for high performance and comfort, with quiet operation and long-distance refrigerant piping for installation flexibility.

Product Information

Standard Information

• Brand: HAIER
• Manufacturer Part Number: 1U3036LP2HDA

Technical Specifications

• MPN: 1U3036LP2HDA
• Brand: HAIER
• Optional Outdoor Cover Accessory: QAWB38A
• Base Pan Heater: Standard
• Compatible Indoor Models: AW30TL2HFA AW36TL2HFA USYL30UCDDA USYL36UCDDA USYM30UCDDA USYM36UCDDA
• Connections: Flare
• Factory Charge (ounces): 88
• Maximum Fuse Size A: 30
• Maximum Height (Ft/m): 100/30
• Maximum Line Length (Ft/M): 165/50
• Outdoor Noise Level: 60 dBA
• Product Type: Single Zone
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Arctic
• Style: Outdoor
• System: 30/36K Arctic
• Temperature Range - Cooling Mode: -4-115 F (-20-46 C) (With Wind Baffle)
• Temperature Range - Heating Mode: -15-75 F (-26-24 C)
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 30,000/36,000
• Minimum Circuit Amp: 26
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 3/8"
• Overall Depth: 14.625 in
• Overall Height: 37.875 in
• Overall Width: 37.5 in
• Suction O.D. Refrigerant Line: 5/8" (3/4" to 5/8" adapter required and shipped with outdoor unit. Install on outdoor unit.)
• BTU Cooling Rating: 36,000 BTU/h
• BTU Heating Rating: 37,000 BTU/h
• Compressor Type: Rotary
• Depth: 14.625 in
• EER2: 8.8
• ENERGY STAR Certified: Yes
• HSPF2: 9.0
• Height: 37.875 in
• Liquid Line Size: 3/8 in
• Max Breaker Size: 30 A
• Number of Stages: Inverter
• Number of Zones: 1
• Packaged Depth: 19.125 in
• Packaged Height: 46.375 in
• Packaged Width: 41.375 in
• Phase: 1 ph
• Product Family: Arctic
• Refrigerant Type: R-410A
• SEER2: 19.0
• Sound Level: 60 dB(A)
• Suction Line Size: 5/8 in
• Tonnage: 2.5-3.0 Ton
• Voltage Rating: 208/230 V
• Width: 37.5 in
