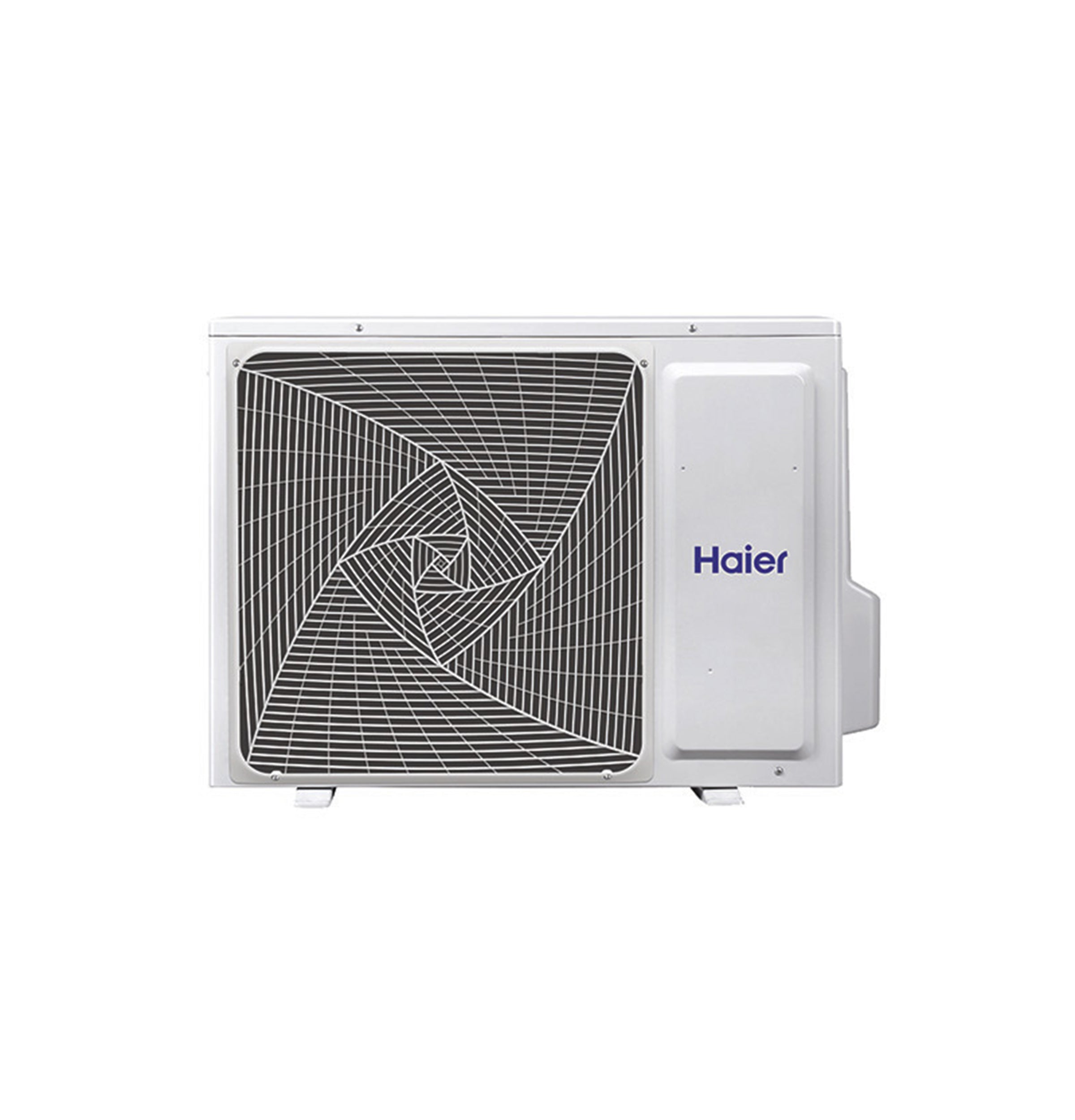

Haier 1U24TE2VHA Ductless Mini Split Air Conditioner System (Outdoor Unit)

Product Description

The Haier 1U24TE2VHA Ductless Mini Split Air Conditioner System is an outdoor unit. It features an auto louver that adjusts airflow and offers turbo and quiet modes for customized comfort. The warm start ensures no cold air during heating, and auto changeover maintains the set temperature. A dry function reduces indoor humidity.

• Auto Louver adjusts airflow for cooling and heating.
• Turbo & Quiet Mode offers 5-speed settings for rapid or silent operation.
• Warm Start prevents cold air during heating mode startup.

Product Highlights

This Haier outdoor unit provides efficient and consistent heating and cooling with features like auto louver, turbo mode, and warm start.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: 1U24TE2VHA

Technical Specifications

• Make: Haier
• Manufacturer: Haier
• Category: Cooling > Mini-Split Systems
• Model code: 1U24TE2VHA
• Refrigerant Lines - Liquid/Suction: 1/4 / 1/2 inches
• Electrical: 208-230/1/60 V/phase/Hz
• Voltage/Hertz/Phase: 208-230/60/1
• Temperature Range - Heating Mode: -4-75 F (-20-24 C)
• Temperature Range - Cooling Mode: 0-115 F (-17-46 C)
• System: 24K Tempo
• Style: Outdoor
• Series: Tempo
• Rotary Compressor: DC Inverter Driven Rotary
• Product Type: Single Zone
• Outdoor Noise Level: 53 dBA
• Model Type: Outdoor
• Maximum Line Length (Ft/M): 83/25
• Maximum Height (Ft/m): 50/15
• Maximum Fuse Size A: 25
• Factory Charge (ounces): 67
• Connections: Flare
• Compatible Indoor Models: AW24TE2VHA
• Minimum Circuit Amp: 19
• Cooling Rated Capacity BTU/Hr: 22,600
• Suction O.D. Refrigerant Line: 1/2"
• Package Quantity: 1
• Overall Width: 36 3/16 in
• Overall Height: 30 in
• Overall Depth: 15 1/8 in
• Liquid O.D. Refrigerant Line: 1/4"
• Hertz: 60
• Electrical Requirements: 208/230V
