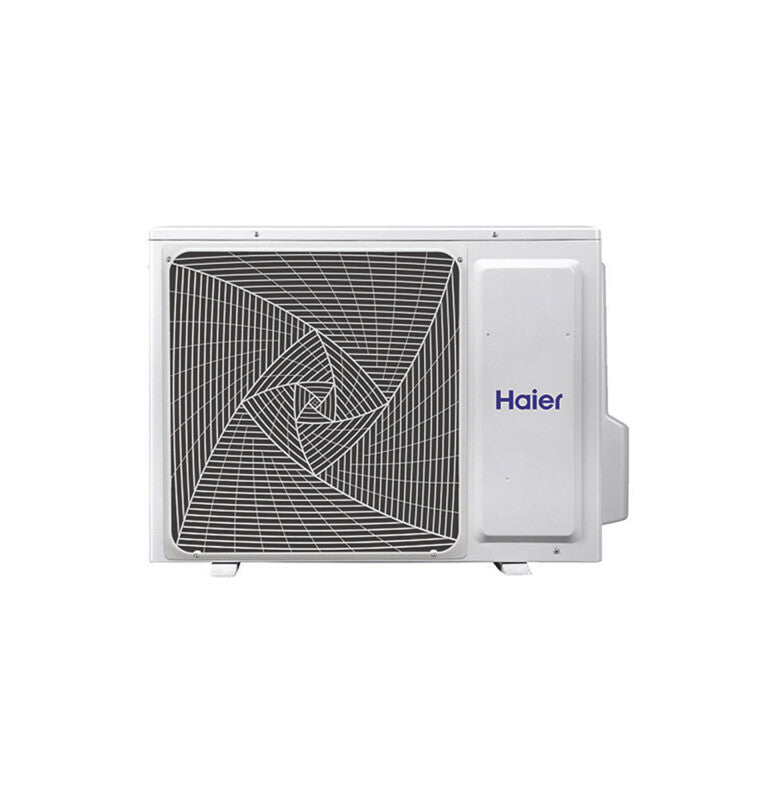

Haier 1U24AP2HDB Advanced Plus Series 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Product Description

The HAIER 1U24AP2HDB Advanced Plus Series is a 24,000 BTU ductless mini-split outdoor heat pump system with A-PAM DC inverter technology designed for high performance. It features a blue fin design that ensures condensing water flows smoothly. Compatible with AW24AP2HDB indoor models, this single zone system operates quietly for maximum comfort.

• High Efficiency Ductless Heat Pump
• A-PAM DC Inverter for high performance and maximum comfort
• Blue Fin design ensures smooth water flow

Product Highlights

This HAIER heat pump provides efficient heating and cooling with quiet operation and a durable design.

Product Information

Standard Information

• Brand: HAIER
• Manufacturer Part Number: 1U24AP2HDB

Technical Specifications

• Color Appearance: White
• Cooling Rated Capacity BTU/Hr: 22,000
• Minimum Circuit Amp: 20
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Net Weight: 126.9 lb
• Overall Depth: 15.125 in
• Overall Height: 30 in
• Overall Width: 36.1875 in
• Suction O.D. Refrigerant Line: 1/2"
• Base Pan Heater: Standard
• Compatible Indoor Models: AW24AP2HDB
• Connections: Flare
• Factory Charge (ounces): 74.1
• Maximum Fuse Size A: 30
• Maximum Height (Ft/m): 50/15
• Maximum Line Length (Ft/M): 83/25
• Outdoor Noise Level: 57 dBA
• Product Type: Heat Pump
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Advanced Plus
• Style: Outdoor
• System: 24K Advanced Plus
• Temperature Range - Cooling Mode: 14-115 F (-10-46 C)
• Temperature Range - Heating Mode: -15-75 F (-26-24 C)
• Unit Type: Outdoor
• Fan Speed Stages: 5 + Auto
• Indoor Sound Level: 49 dBA
• Outdoor Model to Complete Multi Zone System: Single Zone System Only
• Outdoor Model to Complete Single Zone System: 1U24AP2HDB
• WiFi Connect: Optional
• WiFi Module: WiFi Adaptable with WiFi Adapter (QAWF01A, sold separately)
• Max. Heating Capacity -15°F BTU/Hr: 14,000
• Max. Heating Capacity 5°F BTU/Hr: 20,000
• BTU Cooling Rating (Custom): 24,000 BTU/h
• BTU Heating Rating (Custom): 30,000 BTU/h
• Compressor Type: Rotary
• EER2 (Custom): 12.0
• EER2: 12.5
• ENERGY STAR Certified: Yes
• HSPF2 (Custom): 9.0
• HSPF2: 9.6
• Liquid Line Size: 1/4 in
• Max Breaker Size: 30 A
• Model Number: 1U
• Number of Stages: Inverter
• Number of Zones: 1
• Packaged Depth: 19.125 in
• Packaged Height: 33.25 in
• Packaged Width: 42.75 in
• Phase: 1 ph
• Product Family: Advanced Plus
• Product Weight: 126.9 lbs
• Refrigerant Type: R-410A
• SEER2 (Custom): 20.0
• SEER2: 20.0
• Shipping Weight: 149.5 lbs
• Sound Level: 57 dB(A)
• Suction Line Size: 1/2 in
• Tonnage (Custom): 2.0 Ton
• Tonnage: 2.0 Ton
• Voltage Rating: 208/230 V
• Width: 36.188 in
