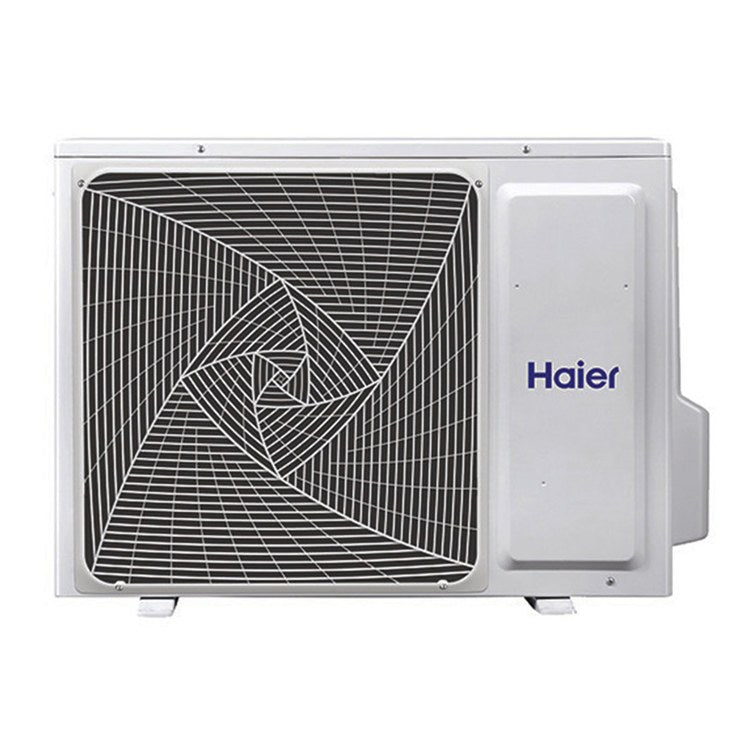

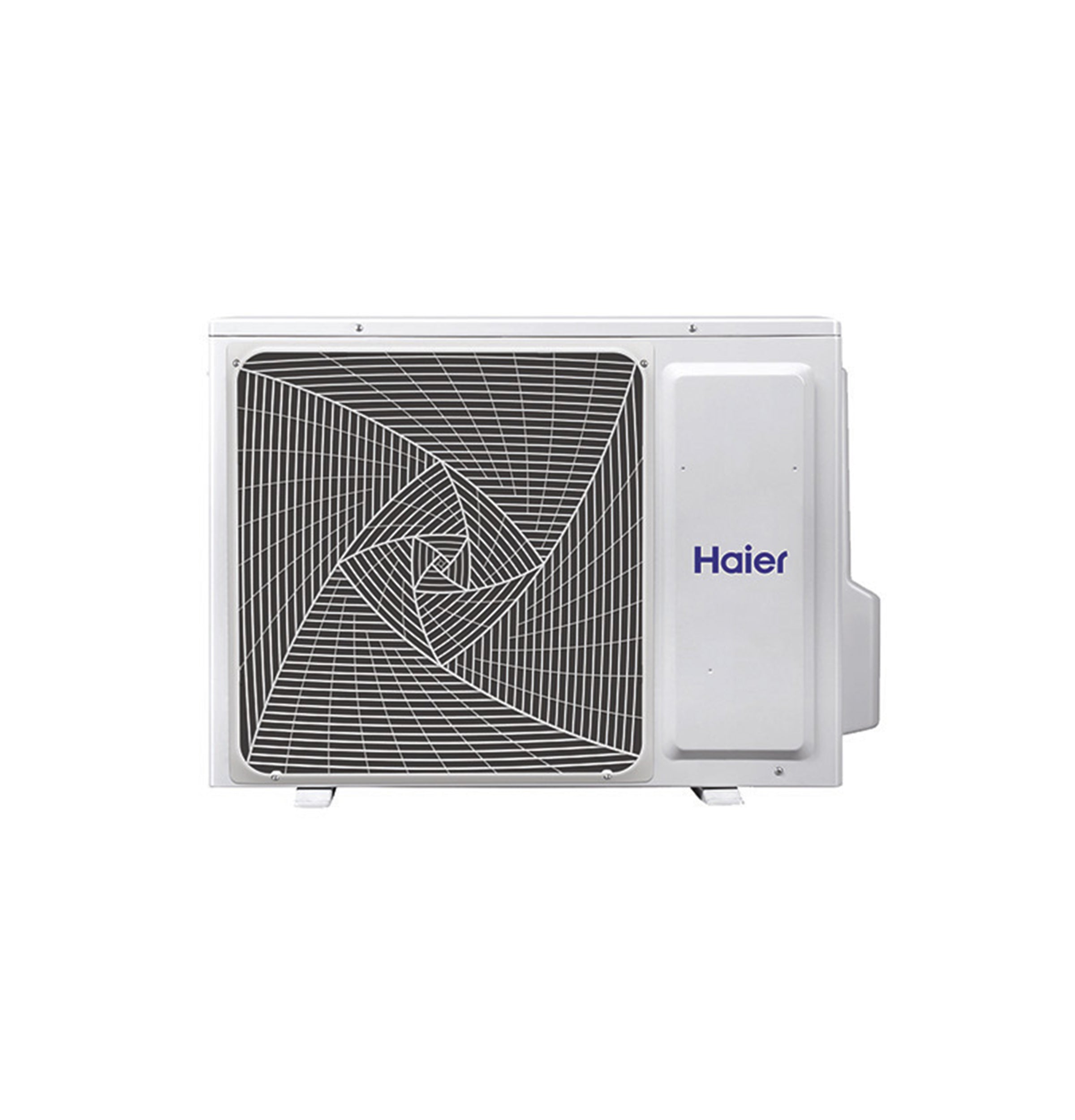

Haier 1U12TE2VHA Outdoor Unit Tempo Heatpump 1.0T 12K 230V

Product Description

The Haier 1U12TE2VHA is an outdoor unit tempo heat pump designed for mini-split ductless systems, operating at 1.0T 12K 230V. It features inverter compressor technology for high performance and comfort. Compatible with QAWB41A wind baffle. The hydrophilic aluminum fin ensures condensing water flows smoothly. Operates quietly for maximum homeowner comfort.

• High Efficiency Ductless Heat Pump
• 18 SEER and 10 HSPF when paired with AW12TE2VHA
• A-PAM DC Inverter

Product Highlights

This outdoor unit is designed for efficient and quiet operation, ensuring consistent heating and cooling in various climates.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: 1U12TE2VHA

Technical Specifications

• Brand: Haier
• MPN: 1U12TE2VHA
• Style: Outdoor
• Model Type: Outdoor
• Maximum Line Length (Ft/M): 66/20
• Compatible Indoor Models: AW12TE2VHA
• Series: Tempo
• Maximum Height (Ft/m): 33/10
• Rotary Compressor: DC Inverter Driven Rotary
• Temperature Range - Cooling Mode: -4-115 F (-20-46 C)
• Temperature Range - Heating Mode: -4-75 F (-20-24 C)
• Factory Charge (ounces): 40.6 oz
• Maximum Fuse Size A: 15
• Outdoor Noise Level: 50 dBA
• Connections: Flare
• Product Type: Single Zone
• System: 9K Tempo
• Cooling Rated Capacity BTU/Hr: 12,000
• Voltage/Hertz/Phase: 208-230/60/1
• Minimum Circuit Amp: 12
• Suction O.D. Refrigerant Line: 3/8"
• Liquid O.D. Refrigerant Line: 1/4"
• Overall Depth: 10.875 in
• Overall Width: 31.5 in
• Overall Height: 21.75 in
• Heating Capacity (BTU): 12,000
• Heating Range Btuh: 4,500-13,000
• SEER/EER/HSPF Non-Ducted: 18/11/10
• Max Heat @-4F: 7,500
• Fuse: 20
• Number of Zones: 1
• Voltage: 208/230
• Refrigerant Lines - Liquid/Suction: 1/4 / 3/8 inches
• Electrical: 208-230/1/60 V/phase/Hz
