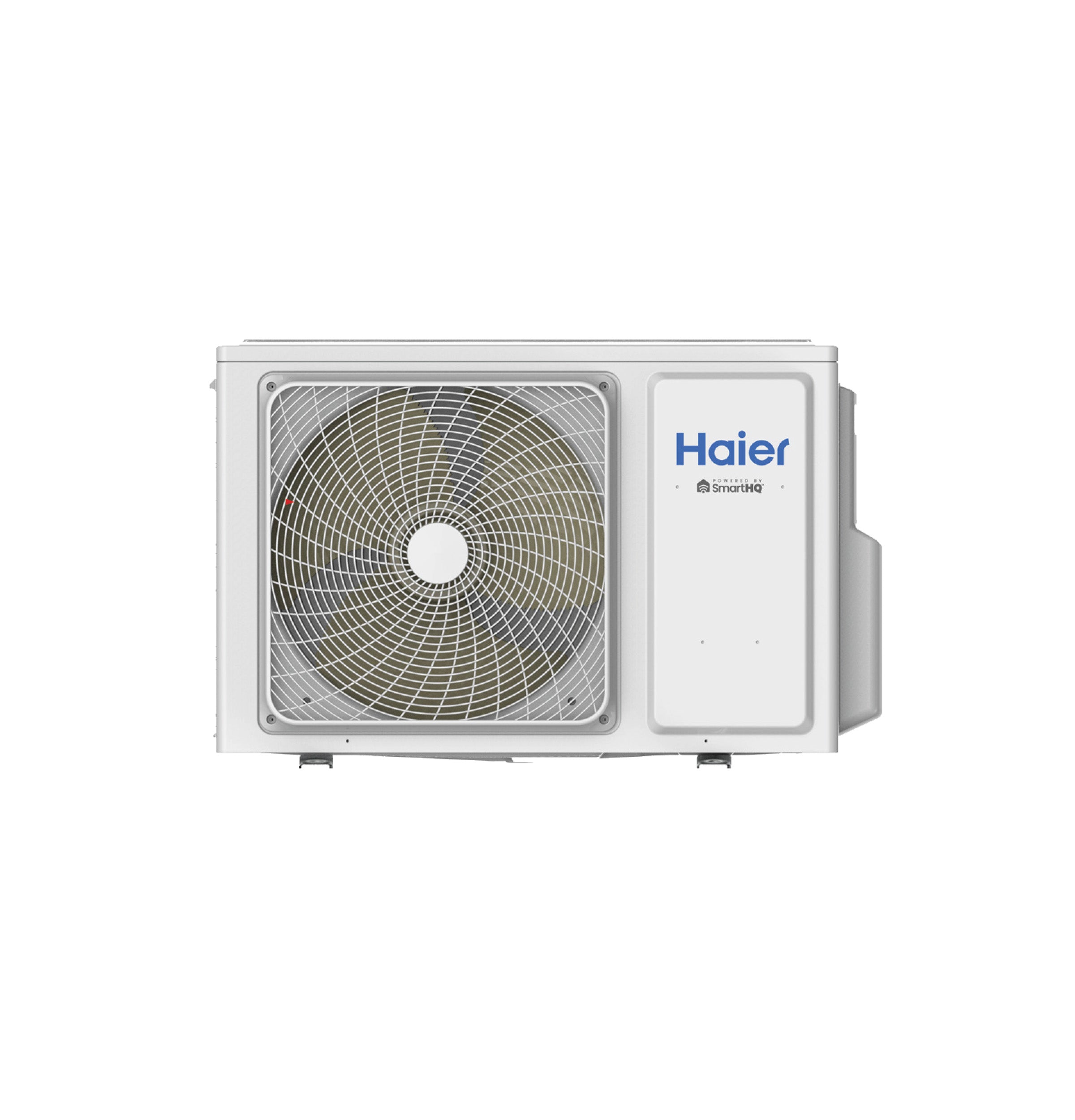

Haier 1U12TE2HDA Tempo Series 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Product Description

The Haier 1U12TE2HDA Tempo Series outdoor unit delivers efficient heating and cooling. This high efficiency ductless heat pump features A-PAM DC Inverter and Blue Fin technology. Dimensions are 21.75 x 31.5 x 10.875 inches. The system ensures optimal comfort even in low ambient conditions down to -4°F.

• High Efficiency Ductless Heat Pump with A-PAM DC Inverter.
• Blue Fin hydrophilic aluminum fin ensures condensing water flows smoothly.
• Quiet operation with an outdoor noise level around 50dB.

Product Highlights

This 12,000 BTU system is designed for single-zone applications and is wind baffle ready for enhanced outdoor durability.

Product Information

Standard Information

• Brand: Haier
• Manufacturer Part Number: 1U12TE2HDA

Technical Specifications

• Optional Outdoor Cover Accessory: QAWB41A
• Compatible Indoor Models: AW12TC2HDA
• Connections: Flare
• Factory Charge (ounces): 40.6
• Maximum Fuse Size A: 15
• Maximum Height (Ft/m): 33/10
• Maximum Line Length (Ft/M): 66/20
• Outdoor Noise Level: 50 dBA
• Product Type: Single Zone
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Tempo
• Style: Outdoor
• Temperature Range - Cooling Mode: -4-115 F (-20-46 C) (With Wind Baffle)
• Temperature Range - Heating Mode: -4-75 F (-20-24 C)
• Unit Type: Outdoor
• Color Appearance: White
• Cooling Rated Capacity BTU/Hr: 12,000
• Minimum Circuit Amp: 12
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Overall Depth: 10.875 in
• Overall Height: 21.75 in
• Overall Width: 31.5 in
• Suction O.D. Refrigerant Line: 3/8"
• SEER2 Rating: 19.0
• HSPF2 Rating: 9.2
• Operating Temperature Range: Cooling -4 °F to 115 °F; Heating -4 °F to 75 °F
• Voltage: 208–230 V, Single‑Phase, 60 Hz
• Cooling Capacity: 12,000 BTU
• Brand: Haier
• Air Conditioner Type: Mini-Split Air Conditioners
• BTU: 12000
