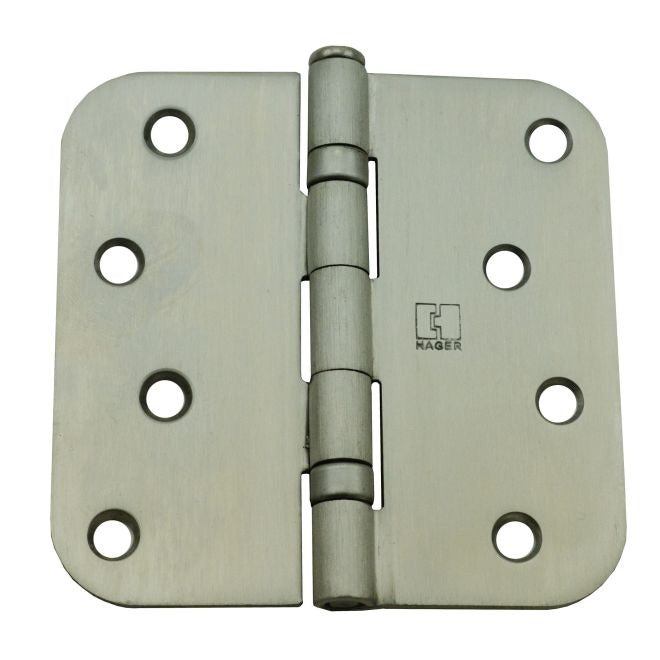

Hager Hinge RCBB1542432D58 Full Mortise Ball Bearing Hinge

Product Description

The HAGER HINGE RCBB1542432D58 is a full mortise, residential weight ball bearing hinge finished in satin stainless steel. It measures 4 inches x 4 inches with a 5/8 inches corner radius, making it suitable for standard residential door applications. The ball bearing construction reduces friction and supports smooth, consistent door operation over extended service life. Licensed carpenters, door hardware installers, and general contractors typically specify this hinge for interior and exterior door installations where a clean, corrosion-resistant finish is required. At 0.4 pounds per leaf, it is sized for residential-weight door assemblies.

This hinge is designed for full mortise installation on residential-grade doors. It fits flush into routed mortises cut into both the door edge and the door frame, providing a clean profile when the door is closed. The satin stainless steel finish suits environments where moisture resistance and aesthetic consistency with other hardware are priorities, including bathrooms, exterior entries, and commercial light-duty doors. Note that this part must be ordered in multiples of 2.

Key Features

• Full mortise design for flush, concealed installation in door edge and frame
• Ball bearing construction for smooth, low-friction operation
• 4 inches x 4 inches leaf size with 5/8 inches corner radius
• Satin stainless steel finish for corrosion resistance
• Residential weight rating appropriate for standard interior and exterior doors
• Must be ordered in multiples of 2

Compatibility

Designed as an OEM-style full mortise replacement hinge for residential-weight doors requiring a 4 inches x 4 inches ball bearing hinge with a 5/8 inches radius corner profile.

Installation Notes

Installation is performed by licensed carpenters or door hardware installers using standard mortise chisels or a router with a hinge template. Power down any electric strike or access control hardware on the door before removing the existing hinge. Ensure mortise depth matches the hinge leaf thickness to achieve a flush fit and proper door alignment. Local building codes may govern hinge quantity and placement for fire-rated door assemblies.
