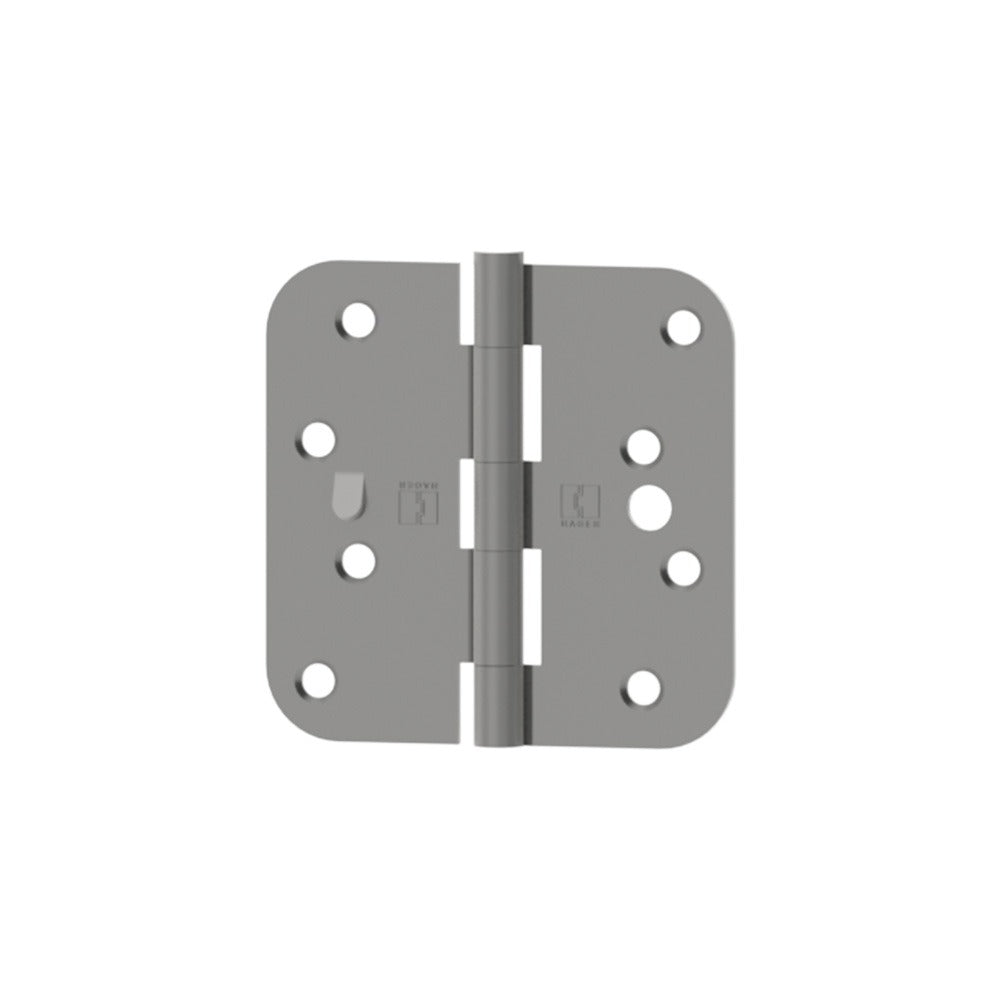

Hager Hinge RC1843415EA58 Full Mortise Residential Hinge

Product Description

The HAGER HINGE RC1843415EA58 is a full mortise residential weight door hinge designed for standard interior and light-duty exterior door applications. It features a 5/8-inch radius corner profile and a safety stud for added door security and alignment. The satin nickel finish provides a clean, neutral appearance suitable for a wide range of residential door hardware sets. This hinge is installed by carpenters, finish contractors, and door hardware specialists working on new construction or replacement projects.

This hinge is suited for residential-grade door installations where a full mortise mounting style is required. Full mortise hinges are recessed into both the door edge and the frame, producing a flush surface when installed correctly. The 4-inch x 4-inch leaf size is a standard fit for most residential interior doors. The safety stud feature helps keep the door aligned and secure even when the hinge pin is removed.

Key Features

• Full mortise design for flush, recessed installation on door edge and frame
• 4 inches x 4 inches leaf size fits standard residential door applications
• 5/8-inch radius corners for a traditional, softened look
• Safety stud retains door alignment when hinge pin is removed
• Satin nickel finish for a clean, versatile appearance
• Sold individually, with a case quantity of 50 units available

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential-grade full mortise door hardware applications.

Installation Notes

Installation is typically performed by a finish carpenter or door hardware technician using a chisel and router to mortise the hinge leaf into the door edge and frame. Ensure the door is properly supported and all hardware is laid out before cutting mortises. Follow local building codes and door manufacturer specifications for hinge placement and spacing. Remove all door hardware and ensure the door is stable before beginning installation.
