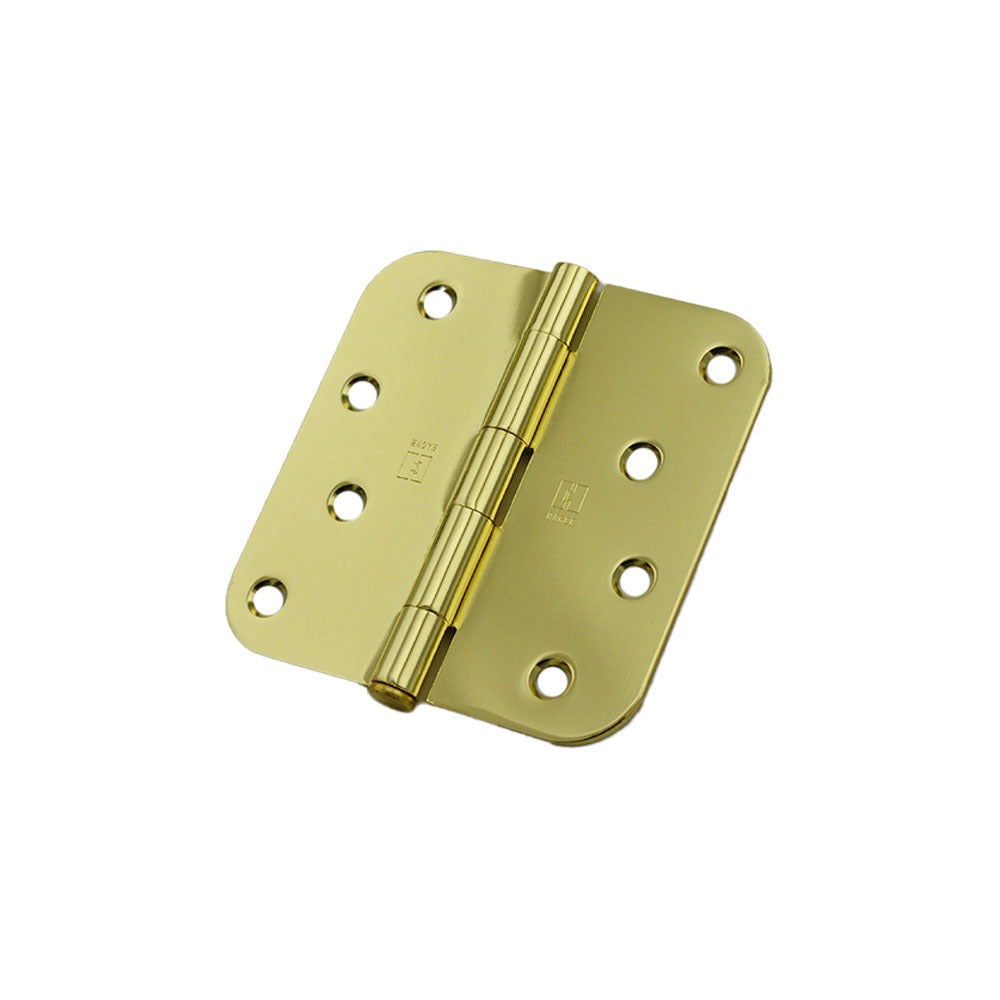

Hager Hinge RC184243EA58 Full Mortise Hinge 4x4 Bright Brass

Product Description

The HAGER HINGE RC184243EA58 is a full mortise plain bearing hinge designed for residential door installations. It measures 4 inches x 4 inches with a 5/8-inch radius corner profile and ships in a bright brass finish. Plain bearing construction suits standard residential traffic loads where a maintenance-free, low-cost hinge is appropriate. This hinge is installed by carpenters, finish contractors, and door hardware technicians working on residential entry, interior, or passage doors requiring a mortise-style application. The unit weighs 0.5 pounds and is sold individually.

This hinge is suited for residential full mortise door applications where the hinge leaf is recessed flush into both the door edge and the door frame. The bright brass finish integrates with traditional and transitional architectural hardware sets. Typical installations include interior passage doors, closet doors, and light residential exterior doors. This hinge is sold as a single unit, making it straightforward to source exact quantities for a job without overage.

Key Features

• Full mortise design for flush, recessed installation into door edge and frame
• 4 inches x 4 inches leaf size appropriate for standard residential door weight and height
• 5/8-inch radius corner profile for a clean, traditional appearance
• Plain bearing construction for low-maintenance residential service
• Bright brass finish compatible with traditional and transitional hardware sets
• Lightweight at 0.5 pounds for easy single-unit handling and installation

Compatibility

Designed as an OEM-style replacement or new-installation hinge for residential full mortise door applications requiring a 4-inch x 4-inch plain bearing hinge in a bright brass finish.

Installation Notes

Installation is performed by carpenters or door hardware technicians using standard chisels, a drill, and a screwdriver or bit driver. Mortise the hinge pocket to the correct depth so the leaf sits fully flush with the door edge and frame face before fastening. Ensure the door is properly blocked or held in position during hinge installation to maintain consistent gap alignment. Follow applicable local building codes for door hardware in the jurisdiction where the work is performed.
