Hager Hinge RC1741415NRP14 Full Mortise Hinge 4x4 Nrp

Product Description

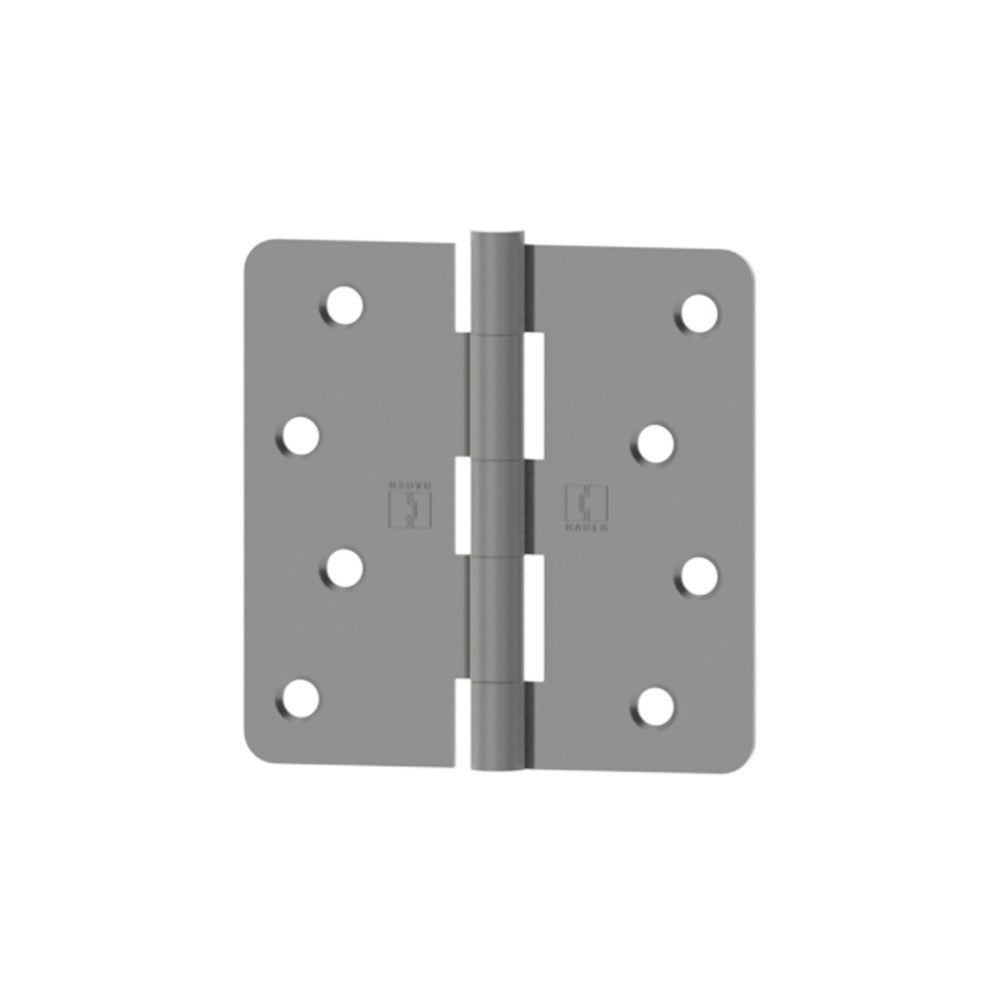

The HAGER HINGE RC1741415NRP14 is a full mortise plain bearing hinge designed for residential door applications. It measures 4 inches x 4 inches with a quarter-radius corner profile and ships in a satin nickel finish. The non-removable pin (NRP) construction prevents the hinge pin from being driven out from the exterior side, adding a layer of security to outswing door installations. Packaged and sold as a single unit, this hinge suits residential entry and interior doors where a clean, flush mortise installation is required. Licensed carpenters, door hardware installers, and general contractors are the primary installers.

This hinge is used in residential new construction and remodel projects where a standard full mortise hinge is specified. The 4-inch x 4-inch leaf size is a common specification for exterior and heavy interior residential doors. The quarter-radius corner geometry fits standard mortise pocket routing. The satin nickel finish coordinates with contemporary and transitional door hardware sets. One hinge is supplied per unit; most door installations require three hinges per door leaf.

Key Features

• Full mortise design for flush, clean installation in routed door and frame pockets
• Non-removable pin for improved door security on outswing applications
• Quarter-radius corners match standard mortise routing templates
• Plain bearing construction suitable for standard residential door weight and frequency of use
• Satin nickel finish for corrosion resistance and modern aesthetic compatibility
• Sold individually, allowing quantity purchasing to match per-door requirements

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential full mortise door applications requiring a 4-inch x 4-inch plain bearing hinge with a non-removable pin and quarter-radius corners.

Installation Notes

Installation is performed by carpenters or door hardware installers. Power down any electric door hardware and ensure the door is properly supported before removing existing hinges. Mortise pockets should be routed to the correct depth and dimensions to ensure the hinge leaf sits flush with the door and frame face. Follow local building codes for door hardware installation requirements, particularly on fire-rated door assemblies.
