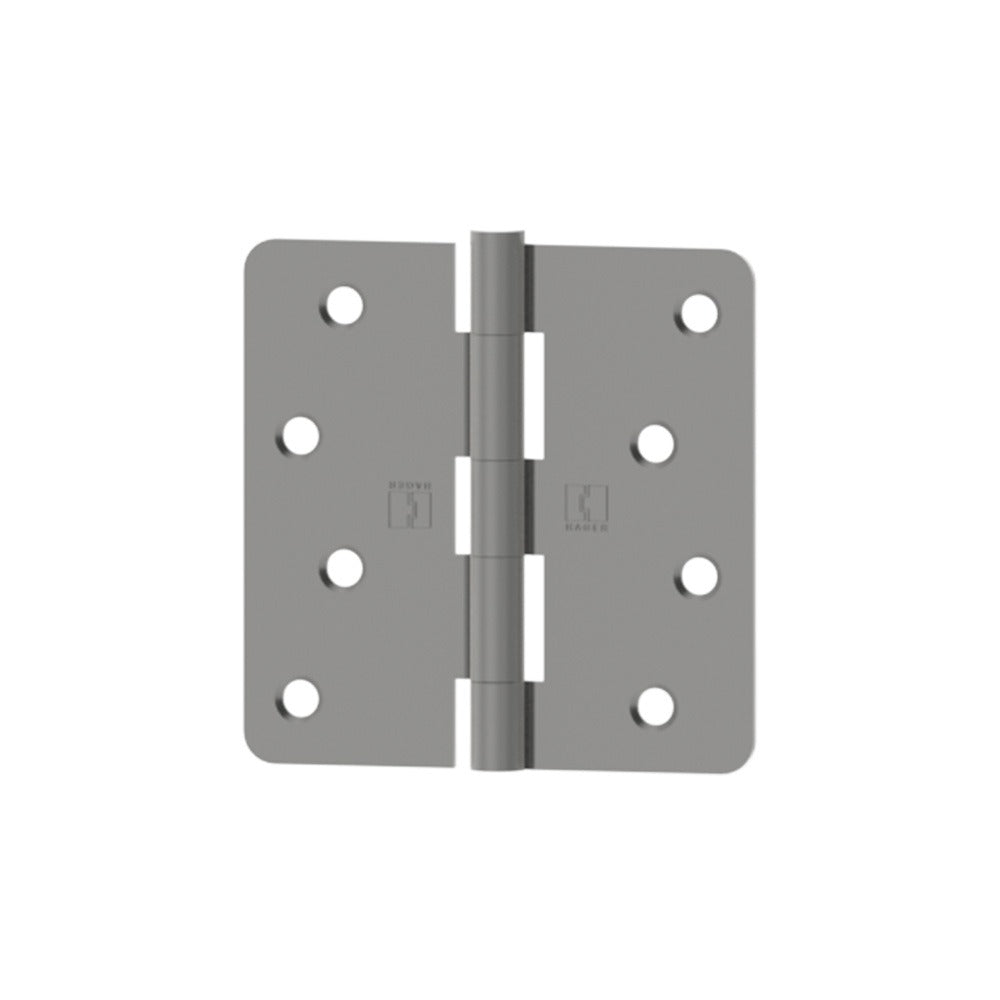

Hager Hinge RC1741415EA14 Full Mortise Hinge 4x4 Satin Nickel

Product Description

The HAGER HINGE RC1741415EA14 is a full mortise, plain bearing door hinge with a 1/4-inch radius corner profile and a satin nickel finish. Measuring 4 inches x 4 inches at the leaf face, this hinge is built for residential interior and exterior door applications where a clean, recessed installation is required. Plain bearing construction suits standard residential duty cycles where heavy-traffic or high-frequency swing counts are not a primary concern. The satin nickel finish provides a neutral, corrosion-resistant surface compatible with a wide range of door hardware sets.

This hinge is intended for residential door installations where a full mortise mount is specified. Full mortise hinges require routed pockets in both the door edge and the door frame, resulting in a flush, low-profile fit. It is sold individually and is appropriate for use on standard residential passage doors, bedroom doors, and closet doors. Installation is typically performed by carpenters, door hardware contractors, or skilled tradespeople working on new construction or retrofit projects.

Key Features

• Full mortise design seats flush with door edge and frame for a clean, professional finish
• Plain bearing construction suited to residential duty applications
• 1/4-inch radius corner profile for a classic, slightly rounded appearance
• 4 inches x 4 inches leaf dimensions appropriate for standard residential door weights and thicknesses
• Satin nickel finish offers a low-sheen, corrosion-resistant surface
• Sold individually, compatible with standard 50-unit case ordering

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential full mortise door applications requiring a 4 inches x 4 inches plain bearing hinge with a 1/4-inch radius corner and satin nickel finish.

Installation Notes

Full mortise hinges require precise router or chisel work to cut matching mortise pockets in the door stile and frame jamb before mounting. Power down any associated electric hardware and confirm the door is properly supported before removing existing hardware. Fasten with appropriately sized wood screws; do not overtighten into soft wood frames without using hardened inserts or backing. Verify hinge quantity and placement comply with the door manufacturer specifications and applicable building codes for the door size and weight.
