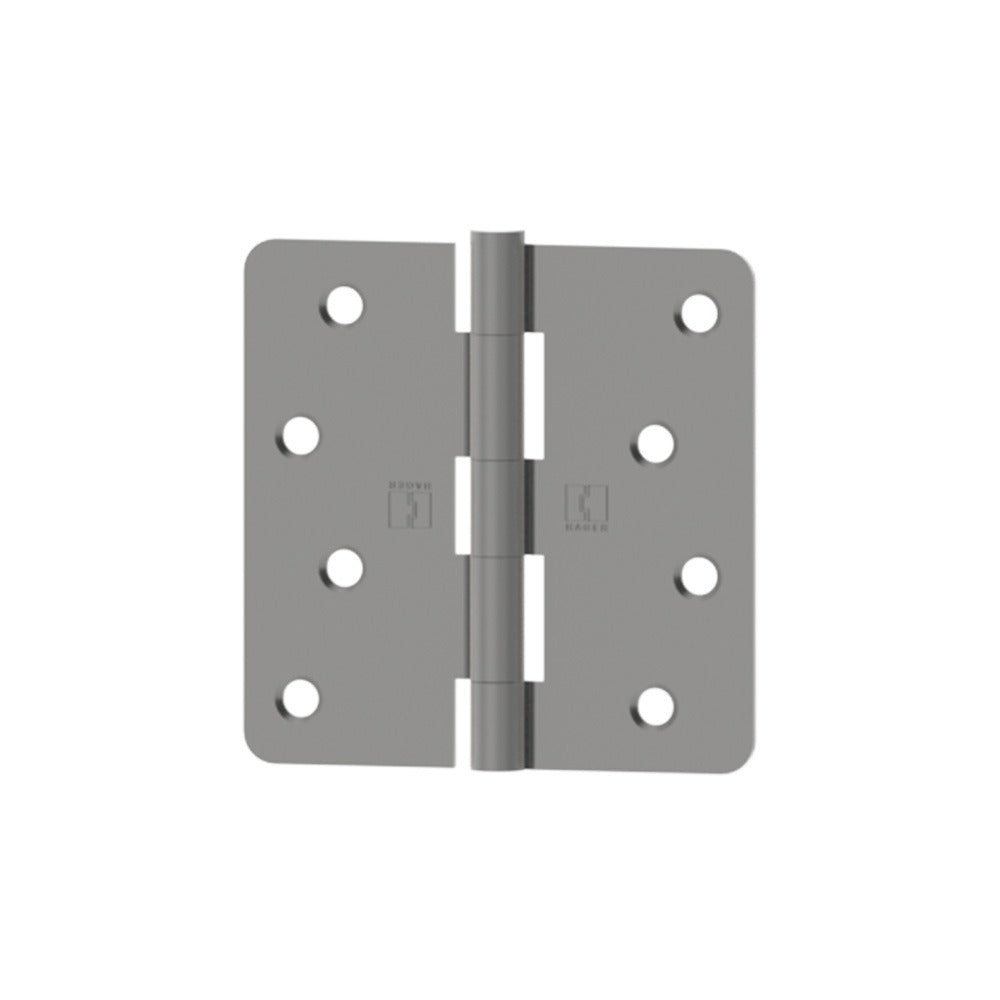

Hager Hinge RC174131215EA14 Full Mortise Hinge 3.5x3.5 Satin Nickel

Product Description

The HAGER HINGE RC174131215EA14 is a full mortise, plain bearing door hinge designed for residential interior and light-duty exterior door applications. It measures 3.5 inches by 3.5 inches with a 1/4-inch radius corner profile and ships in a satin nickel finish. Plain bearing construction suits standard residential traffic loads where a maintenance-free, cost-effective hinge is appropriate. At 0.4 pounds per unit, the hinge is lightweight while maintaining the structural integrity needed for typical hollow-core and solid wood residential doors. Locksmiths, door hardware installers, and general contractors are the primary tradespeople who specify and install this component.

This hinge is suited for residential door installations where a full mortise mount is required, meaning both the door edge and the door frame jamb receive routed pockets to seat each leaf flush. The 1/4-inch radius corner matches the most common router bit profile used in pre-hung residential door sets. The satin nickel finish coordinates with widespread residential hardware finish standards. Typical applications include interior passage doors, closet doors, and light-duty entry doors in single-family and multi-family residential construction.

Key Features

• Full mortise design requires routed pockets in door edge and jamb for a flush, clean installation
• Plain bearing construction provides reliable, maintenance-free operation for standard residential traffic
• 3.5 inches x 3.5 inches leaf size fits the most common residential door hinge cutout
• 1/4-inch radius corners match standard router bit profiles used in pre-hung door manufacturing
• Satin nickel finish offers a corrosion-resistant, brushed appearance compatible with common residential hardware sets
• Sold individually, with case quantity of 100 units available for volume orders

Compatibility

Designed as an OEM-style replacement or new-installation hinge for residential full mortise door applications requiring a 3.5 inches x 3.5 inches plain bearing hinge with a 1/4-inch radius corner profile in satin nickel finish.

Installation Notes

Installation is performed by door hardware installers, carpenters, or general contractors familiar with mortise hinge routing. Power down any electronic door hardware or access control systems before servicing the door assembly. Use a sharp chisel or router with a 1/4-inch radius corner template to achieve a flush mortise pocket; improper depth will cause door binding or misalignment. Verify door and frame alignment before final fastener seating.
