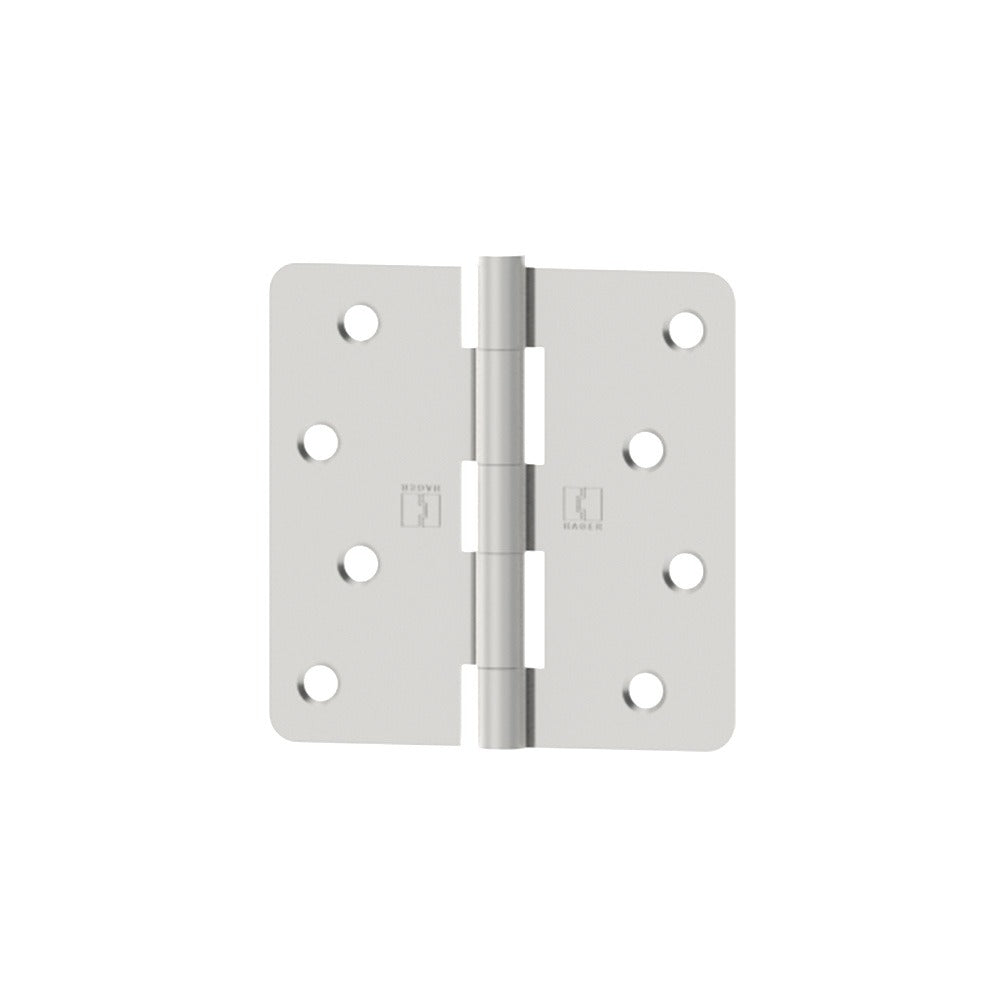

Hager Hinge RC154131232DEA14 Full Mortise Residential Hinge

Product Description

The HAGER HINGE RC154131232DEA14 is a full mortise residential hinge finished in satin stainless steel. Designed for standard door installations, it features a 1/4-inch radius corner profile and measures 3.5 inches by 3.5 inches, making it a direct fit for typical residential interior and exterior door applications. The satin stainless steel finish provides corrosion resistance suited to high-humidity or exterior-adjacent environments. Carpenters, door and hardware installers, and general contractors are the primary trades that specify and install this hinge. The unit ships individually and is also available in case quantities of 100.

This hinge is intended for full mortise installation on residential doors where a clean, flush-mounted appearance is required. The 3.5-by-3.5-inch leaf size is a common specification for standard 1-3/8-inch and 1-3/4-inch thick residential door slabs. The satin stainless steel finish is well suited to coastal, institutional, and high-moisture environments where finish durability matters. It is sold as a single unit (EA), making it practical for replacement jobs or small punch-list work as well as larger new-construction projects requiring individual unit counts.

Key Features

• Full mortise design for a flush, clean installation on standard residential door frames
• 3.5 x 3.5 inch leaf dimensions suit common residential door slabs
• 1/4-inch radius corner profile for a traditional, widely compatible look
• Satin stainless steel finish offers corrosion resistance in demanding environments
• Sold per each (EA) with case quantity of 100 for larger project ordering

Compatibility

Designed as an OEM-style full mortise residential hinge suitable for standard residential door applications requiring a 3.5 x 3.5 inch hinge with a 1/4-inch radius corner profile.

Installation Notes

Installation is typically performed by a carpenter or door hardware installer using a chisel and router to prepare the mortise pocket in both the door slab and the door frame. Ensure the door is properly supported and secure before removing existing hardware or installing new hinges. Follow local building codes and the door manufacturer's specifications for hinge quantity and placement. Verify leaf alignment and screw engagement before final closure of the door to ensure proper swing and latching.
