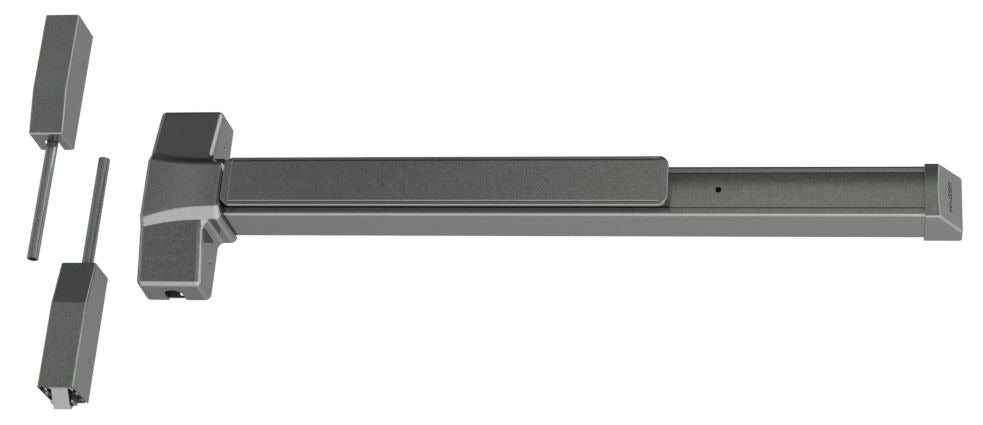

Hager Hinge 4501SVR368426D Surface Vertical Rod Exit Device

Product Description

The HAGER HINGE 4501SVR368426D is a surface-mounted vertical rod exit device designed for exit-only door applications. It fits 36-inch (3-foot) wide by 84-inch (7-foot) tall door openings and features a satin chrome finish. The device uses vertical rod hardware to latch at both the top and bottom of the door, providing positive engagement across the full door height. This type of exit device is standard on commercial egress doors where panic hardware is required and no entry from the exterior is permitted. Installation is typically performed by a licensed door hardware technician or commercial locksmith.

This exit device is suited for commercial and institutional buildings where code-compliant one-way egress is required. It is appropriate for use on single swinging doors in applications such as stairwell exits, corridor doors, and emergency egress points. The exit-only configuration means no exterior trim or cylinder is included, making it a clean solution for doors where re-entry is not desired or code-permitted. The satin chrome finish coordinates with standard commercial hardware finishes.

Key Features

• Exit-only function — no exterior entry hardware, supports one-way egress requirements
• Surface-mounted vertical rod design latches at top and bottom of door for full-height engagement
• Fits 36-inch wide by 84-inch tall door openings
• Satin chrome finish for a clean, durable commercial appearance
• Sold individually (each unit)
• Dimensions: 35.5 inches long x 10 inches wide x 4.8 inches tall

Compatibility

Designed for single-door commercial egress applications requiring surface vertical rod panic hardware on 36-inch x 84-inch door frames. Verify door prep and frame conditions before ordering.

Installation Notes

Installation should be performed by a qualified door hardware technician or commercial locksmith familiar with ANSI and local building code requirements for panic hardware and egress devices. Ensure all door hardware and access control power is disconnected before beginning work on the door assembly. Verify door frame dimensions, door thickness, and top and bottom rod strike compatibility prior to installation. Consult applicable building codes, including IBC egress requirements, to confirm this exit-only configuration is appropriate for the intended opening.
