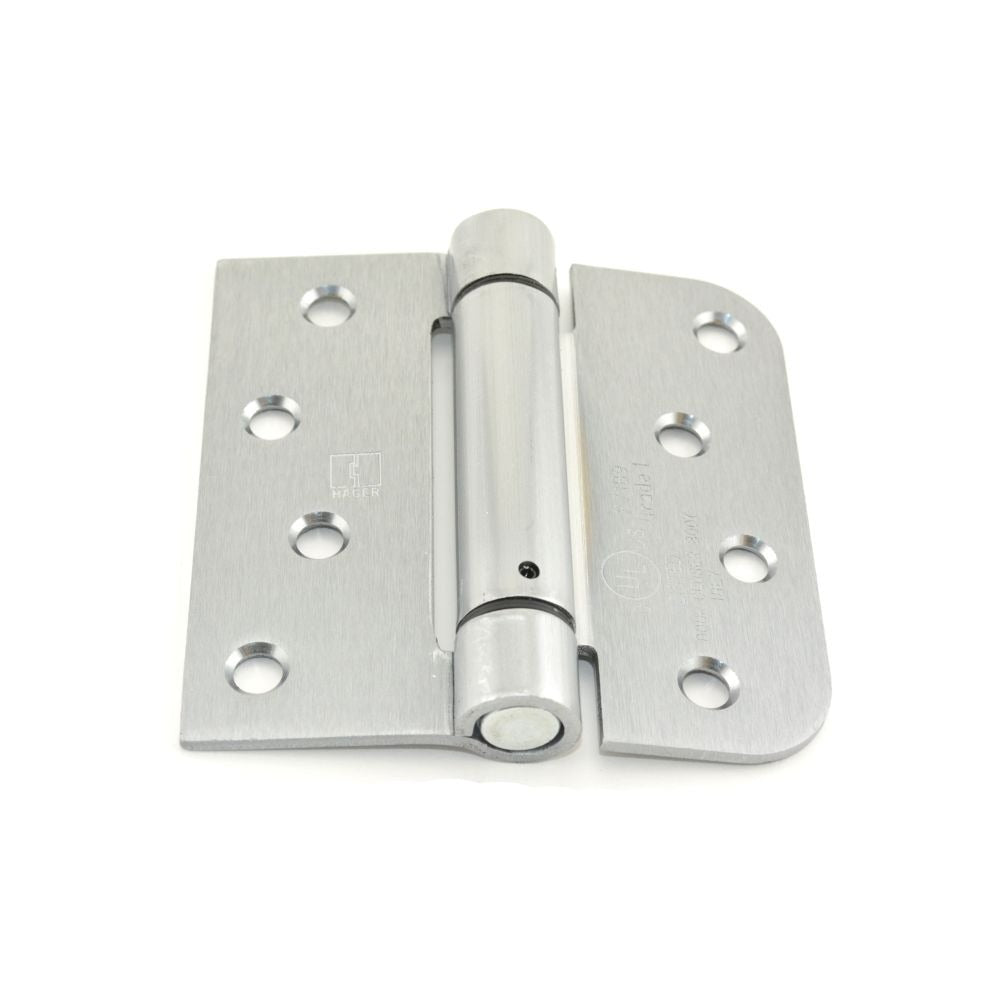

Hager Hinge 1754426D Full Mortise Spring Hinge Satin Chrome

Product Description

The HAGER HINGE 1754426D is a full mortise residential spring hinge manufactured from steel with a satin chrome finish. It measures 4 inches by 4 inches with a 5/8-inch radius corner profile. The spring mechanism provides automatic door-closing action, making it a practical choice for interior residential doors where self-closing function is required. Licensed carpenters, door hardware installers, and general contractors typically install this hinge as part of a complete door hardware assembly. The square corner body and mortise design require a precisely routed pocket in both the door edge and the door frame jamb for a flush, clean installation.

This hinge is suited for residential interior door applications where a self-closing hinge is needed without a separate door closer. The full mortise configuration is the standard installation type for pre-hung and retrofit interior doors in residential construction and light commercial settings. The satin chrome finish coordinates with common residential hardware finishes. Note that this item must be ordered in multiples of 2.

Key Features

• Full mortise design mounts flush into routed pockets on door edge and jamb
• Integrated spring mechanism provides automatic self-closing door action
• 4 inch x 4 inch leaf size suitable for standard residential interior doors
• 5/8 inch radius corner profile for a clean, traditional appearance
• Steel construction with satin chrome finish for durability and finish coordination
• Sold individually; must be ordered in multiples of 2

Compatibility

Designed as an OEM-style replacement or new-installation full mortise spring hinge for standard residential interior door applications requiring a self-closing hinge with a 4 inch x 4 inch mortise pattern.

Installation Notes

Installation requires routing a precise mortise pocket into both the door edge and the door frame jamb to accept the hinge leaf flush with the surface. A licensed carpenter or qualified door hardware installer should verify door thickness and frame material before installation. Disconnect any electrical hardware and ensure the door is properly supported before removing existing hinges. Follow local building codes for self-closing door requirements in applicable residential applications.
