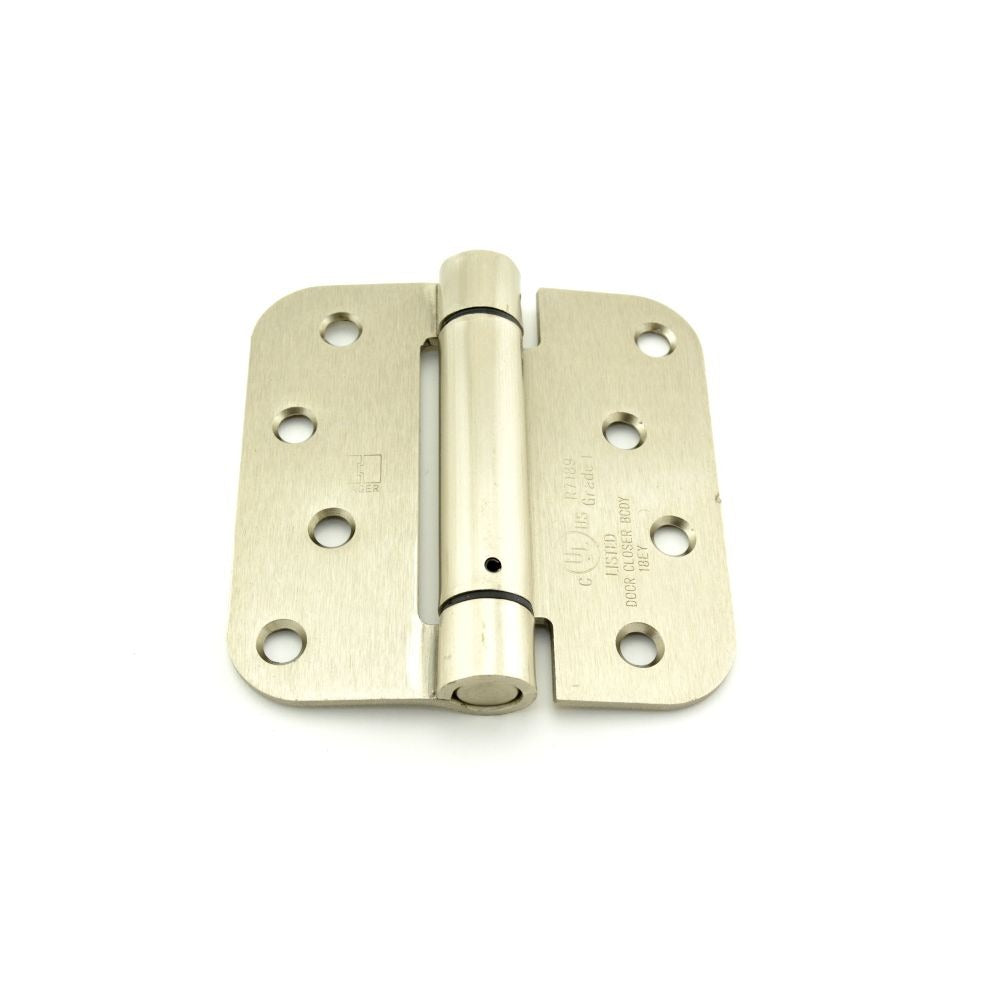

Hager Hinge 1752415 Full Mortise Spring Hinge 4x4 Steel Satin Nickel

Product Description

The HAGER HINGE 1752415 is a full mortise residential spring hinge designed for standard interior and light-duty door applications. Built from steel with a satin nickel finish, this hinge measures 4 inches x 4 inches with a 5/8-inch radius corner profile. The spring mechanism allows the door to self-close after each use, making it a practical choice for utility rooms, mechanical spaces, and residential passages where a door closer is not warranted. Licensed carpenters, door hardware installers, and general contractors are the primary trades that specify and install this hinge. At 0.78 pounds, the unit is lightweight but constructed to handle standard residential door weights.

This hinge is suited for residential door installations requiring a self-closing function without a surface-mounted or overhead closer. The full mortise design requires a routed pocket in both the door edge and the door frame, keeping the hinge leaves flush when the door is in the closed position. Typical applications include interior passage doors, closet doors, and utility room entries in single-family and multi-family residential construction. The satin nickel finish integrates with a wide range of door hardware finishes commonly specified in residential projects. Note that this item must be ordered in multiples of 2.

Key Features

• Full mortise mounting keeps hinge leaves flush with door edge and frame for a clean install
• Integrated spring mechanism provides self-closing function without a separate door closer
• 4 inches x 4 inches leaf size suitable for standard residential door weights and thicknesses
• 5/8-inch radius corner profile for compatibility with standard router templates
• Steel construction with satin nickel finish for durability and finish consistency
• Must be ordered in multiples of 2 to ensure paired installation per door

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential full mortise door applications requiring a 4-inch x 4-inch spring hinge with a 5/8-inch radius corner.

Installation Notes

Installation is performed by a licensed carpenter, door hardware installer, or general contractor. The full mortise design requires precise routing of hinge pockets into both the door edge and the jamb before mounting. Ensure the door is fully supported and the spring tension is set to the minimum required for reliable self-closing before final adjustment. Follow local building codes and the door manufacturer's hardware specifications when selecting hinge quantity and placement.
