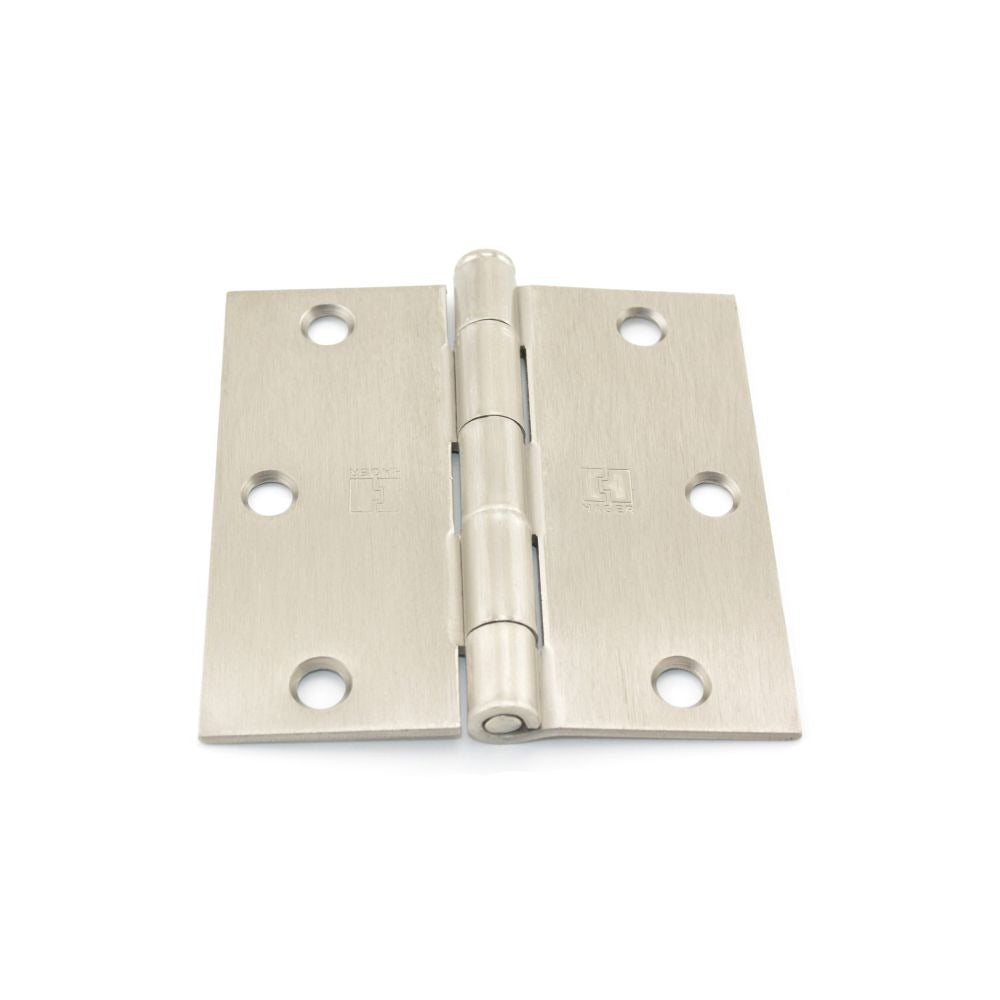

Hager Hinge 174131215EA Full Mortise Hinge 3.5x3.5 Satin Nickel

Product Description

The HAGER HINGE 174131215EA is a full mortise plain bearing residential hinge finished in satin nickel. Measuring 3.5 inches by 3.5 inches with a square corner profile, this hinge is designed for standard residential door installations where a clean, flush fit is required. It is constructed from steel for reliable strength in daily use. The plain bearing design suits light- to medium-duty residential applications where high-frequency swing cycles are not a primary concern. This hinge is sold individually per unit but must be ordered in multiples of two. Installation is typically performed by carpenters, door hardware installers, or general contractors during new construction or door replacement work.

This hinge is suited for interior and exterior residential doors requiring a full mortise mount, where both the door and the door frame are routed to accept the hinge leaf flush with the surface. The square corner geometry fits standard residential door preps. The satin nickel finish coordinates with common residential hardware finishes. At 0.5 pounds per unit, it adds minimal weight to the door assembly. Typical applications include entry doors, interior passage doors, and bedroom or closet doors in residential construction.

Key Features

• Full mortise design for flush, concealed installation in routed door and frame
• Plain bearing construction suitable for residential swing frequency
• Square corner profile matches standard residential door prep cutouts
• Steel construction for durable everyday performance
• Satin nickel finish for a clean, neutral appearance
• Must be ordered in multiples of two to complete a hinge pair

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential full mortise door applications requiring a 3.5 inch by 3.5 inch square corner hinge.

Installation Notes

Installation is performed by a qualified carpenter or door hardware technician. The door and frame must be properly mortised to accept each hinge leaf flush before fastening. Ensure the door is fully supported and the frame is plumb and square prior to hinge installation. Follow applicable local building codes for door hardware installation in residential construction.
