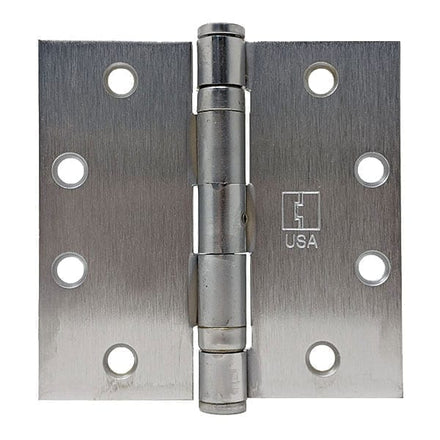

Hager BB1279 4.5 inches x 4.5 inches Ball Bearing Hinge (Non-Removable Pin) NRP

Product Description

The Hager BB1279 is a 4.5" x 4.5" full mortise, five knuckle ball bearing hinge with a non-removable pin (NRP). These security hinges are used with out-swinging doors with locking hardware, typically found on exterior doors that swing outward. A set screw in the barrel prevents removal of the hinge pin. Complies with NFPA80 requirements for use on fire-rated door assemblies.

• Non-Removable Pin (NRP)
• Full Mortise
• Five Knuckle
• Meets ANSI/BHMA A156 .1
• Certified to meet UL standards (3 Hour Fire-Rated)

Product Highlights

The Hager BB1279 is ideal for medium weight doors requiring medium frequency service. It features a non-removable pin for added security.

Product Information

Standard Information

• Brand: HAGER
• Manufacturer Part Number: BB1279 4.5 X 4.5 US26D NRP

Technical Specifications

• Brand: Hager
• Hinge Type: Full Mortise
• Size: 4.5" x 4.5"
• Knuckles: Five
• Bearings: Ball Bearing
• ANSI/BHMA Standard: Meets ANSI/BHMA A156 .1
• Usage: Medium Duty
• Gauge: 0 .134
• Fire-Rating: Certified to meet UL standards (3 Hour Fire-Rated)
• MPN: BB1279
• ANSI: A8112
• Screw Holes: Six (6) screw holes
• Hole Pattern: Template Hole Pattern
