Hager 5100 MLT ALM 5100 Series Door Closer Adjustable 1-6

Product Description

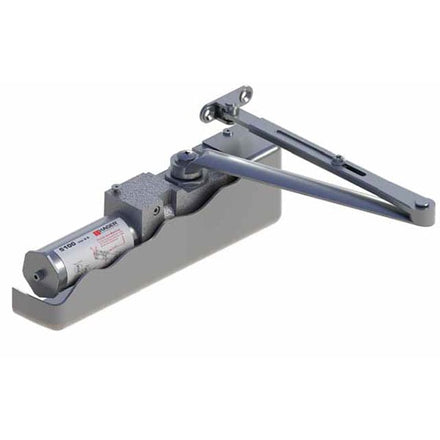

The HAGER 5100 MLT ALM 5100 Series Door Closer is a heavy-duty door closer constructed of cast iron, designed for high-use exterior and interior doors. It is engineered for reliability and superior performance in commercial environments. Ideal for schools, medical facilities, institutions, hospitals, and office buildings.

• Cast iron body
• Includes standard 5103 tri-pack arm
• MLT (Multi-Mount) – Regular, parallel-arm, and top jamb mount

Product Highlights

This door closer features separate and independent latch, sweep, and backcheck valves. It is UL listed and ADA compliant, suitable for doors up to 330 lbs.

Product Information

Standard Information

• Brand: HAGER
• Manufacturer Part Number: 5100 MLT ALM

Technical Specifications

• Brand: Hager
• ANSI/BHMA Standard: ANSI/BHMA A156.4, Grade 1 certified
• Usage: Heavy Duty
• Templating (Hole Pattern): 2-1/4" x 5"
• Fire-Rating: UL Listed - UL10c compliant for positive pressure
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Body Construction: Cast Iron Body
• Mounting Options: Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
• Spring Size: Adjustable Spring Size 1-6
• Cover: Full Cover
• Handing: Non-Handed
• Door Applications: Hollow Metal, Wood or Aluminum
• Size: 1-6 adjustable
• Certifications: BHMA Certified ANSI A156.4, adjustable sizes 1-6, ADA Compliant ANSI A117.1 Accessability Code, UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated, UL10B Neutral Pressure Rated
• Material: Cast Iron
• Recommended Temperatures: - 40 F (-42 C) and 150 F (66 C)
• Springs: One piece seamless steel spring tube, Double heat treated steel, tempered springs, Precision machined, heat treated steel piston
• Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Optional, Delayed action valve - Optional, Staked valves - Standard
• Arms & Brackets: Tri-Pack - Regular, parallel, and top jamb arm mount - standard, 15% power adjustment in standard arm for regular and top jamb mount
• Optional Arms: Hold Open Arm, Extra Heavy Duty Hold Open Stop Arm, Extra Heavy Duty Stop Arm, Extra Heavy Duty Arm, Extra Heavy Duty Hold Open Arm, Extra Heavy Duty Cushion Stop Arm, Extra Heavy Duty Hold Open Cushion Stop Arm
• Optional Brackets: Regular Arm Mount - Narrow Top Rail, Parallel Arm Mount - Narrow Top Rail
• Fasteners: Self-reaming self-tapping wood and machine screws, Sex nuts and bolts
• Door Thickness: 1-3/4" (44 mm) - Standard, 1-3/8" - 2-1/4" (36 mm - 57 mm) - Optional
• Finishes: ALM, BRZ, DBZ, GOL, Rust inhibiting primer - Standard
• Mount (Mnt): MLT - Multi-Mount
• Finish (Fin.): ALM - Sprayed Aluminum
• Size (Sze): ADJ - 1-6
• Arms (Arm): Main Arm
• Covers (Cover): FC - Full Plastic Cover
• Screw Packs (screws): 5104- Self-drilling wood/machine screws
• Closing Adjustment (Adj): BCK- Backcheck
• Lead Lined Cover: Not Lead Lined (Standard)
