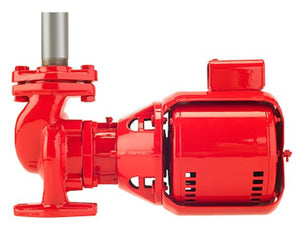

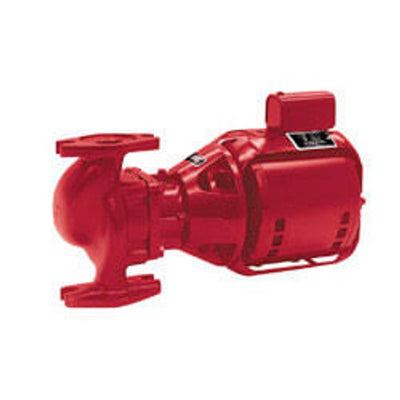

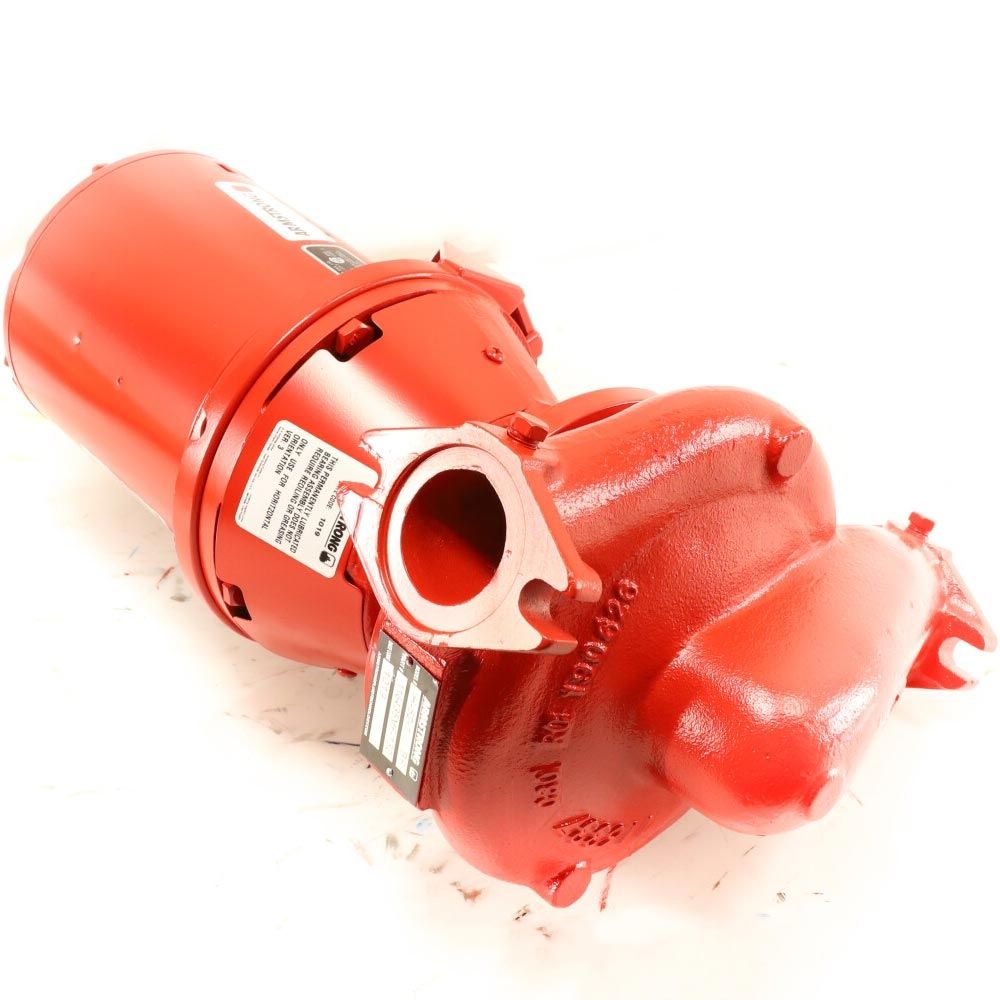

Armstrong Fluid Technology 116435MF-132 H52 Series Circulator Pump 1/3HP 115V 1Ph

Product Description

Discover the Armstrong Fluid Technology 116435MF-132, a robust H52 Series In-line Circulator Pump designed for efficient fluid circulation. Ideal for professional HVAC systems, this 1/3 horsepower single-phase pump operates on 115 volts and integrates seamlessly into hydronic heating and cooling systems, and other industrial applications.

• Simple modular construction makes maintenance and part replacement straightforward.
• Radially-split bronze-fitted body and oversized maintenance-free stainless steel shaft for long-term reliability.
• Efficient centrifugal impeller provides optimal fluid circulation.

Product Highlights

Featuring a radially-split body, this circulator pump remains in-line during servicing, which alleviates the need for pipe disconnections. Its unique design features a cast iron body and an impeller made from non-ferrous materials, ensuring durability in diverse operating environments. Ensures up to 52 gallons per minute flow rate with a maximum head of 26 feet.

Technical Specifications

• Brand: Armstrong Fluid Technology
• MPN: 116435MF-132
• Power: 1/3 HP
• Voltage: 115 V, 60 Hz, 1 Phase
• Max Operating Temperature: 230 degrees Fahrenheit
• Flow Rate: 0 - 52 GPM
• Maximum Head: 26 feet
• Connection Type: 1-1/4 inch Flanged
