H2Flow Controls PSP20-40-25 Emotron PSP20 Anti-Entrapment Automatic Pump 10-15 HP (3-Phase 480 V)

Product Description

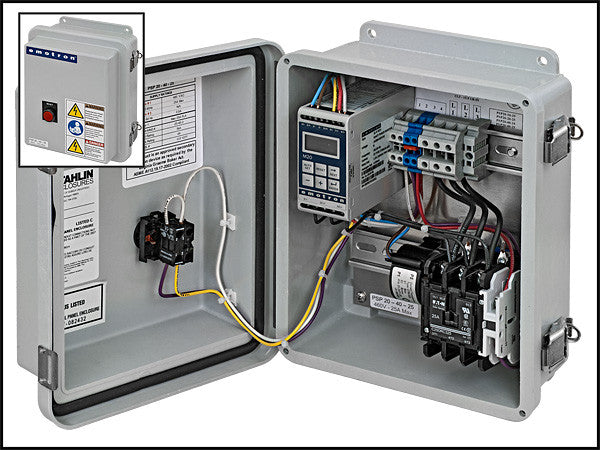

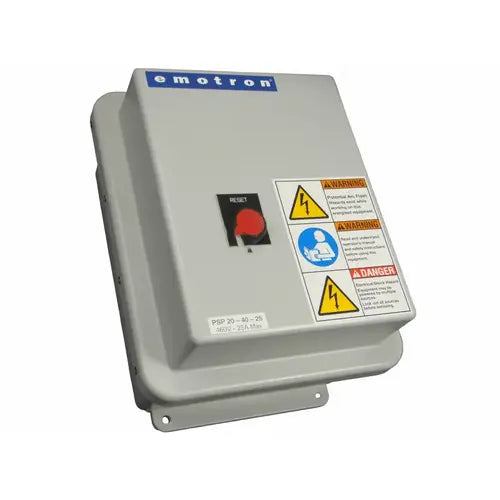

H2Flow Controls PSP20-40-25 is an Emotron PSP20 anti-entrapment automatic pump control that uses the pump motor as a sensor to detect entrapment conditions and automatically shut off 3-phase pool and spa pumps. The unit is supplied as a fully assembled panel to be installed between an existing pump control panel and the pump motor, and features patented AutoSet calibration, password protection, and ASME-A112.19.17 SVRS testing.

• Monitors the pump motor as a sensor and provides automatic shutoff for 3-phase pool and spa pumps.
• Patented AutoSet calibration enables quick programming and calibration in seconds; password protection prevents unauthorized tampering.
• Rated for 480 V systems, supports up to 25 A and 10–15 HP; ASME-A112.19.17 SVRS tested and approved.

Product Highlights

Motor-sensed anti-entrapment shutoff for 3-phase 480 V pumps; 0.1–25 A range; AutoSet calibration; ASME tested.

Product Information

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: PSP20-40-25

Technical Specifications

• Brand: H2Flow Controls
• MPN: PSP20-40-25
• Sub Brand: Emotron
• Function: Anti-entrapment automatic pump shut off (VGB automatic pump shut off)
• Phase: 3-Phase
• Input Voltage: 480 V
• Amp Range: 0.1 to 25 A
• Amperage Rating: 25 A
• Horsepower: 10 - 15 HP
• Standards/Approvals: ASME-A112.19.17 SVRS Tested and Approved
• Calibration: Patented AutoSet calibration (calibration in seconds)
• Protection Features: Password protection; no-nuisance trip guarantee
• Item: Automatic pump control panel
