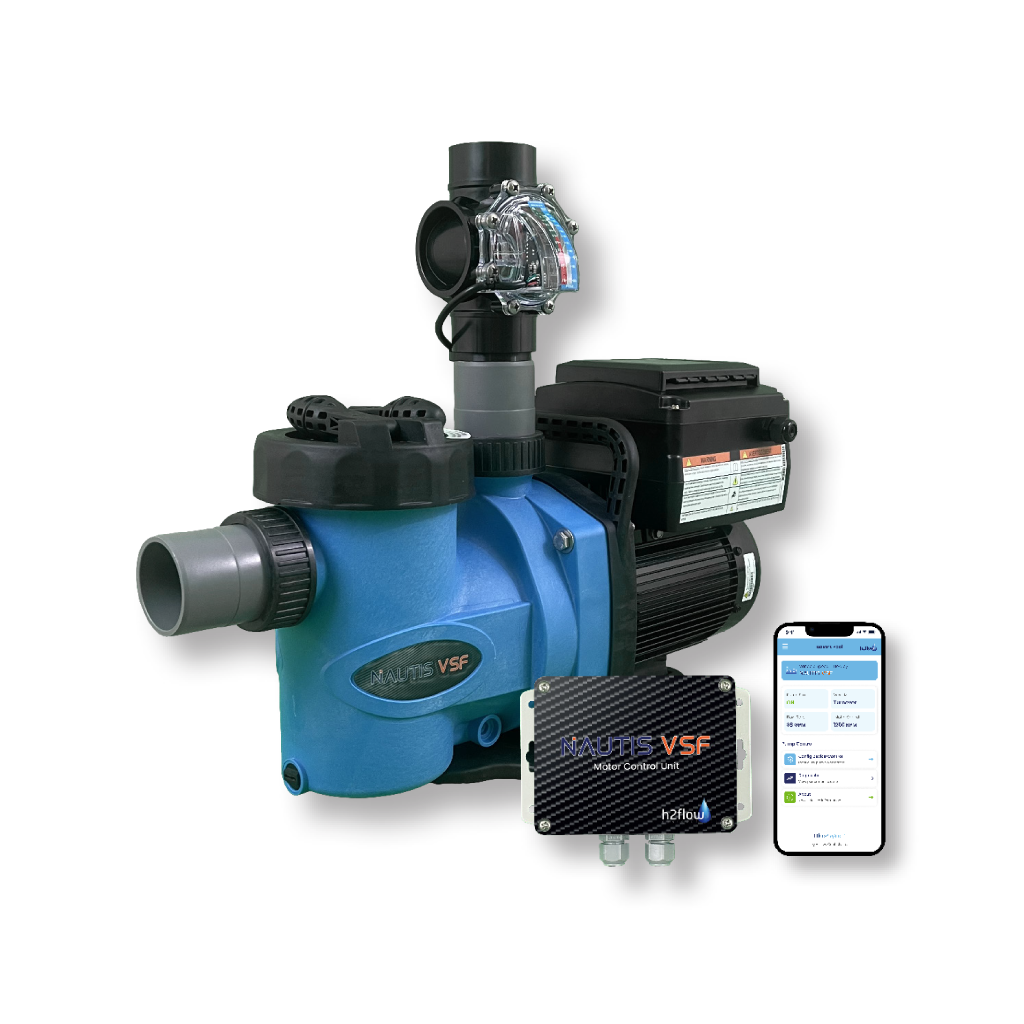

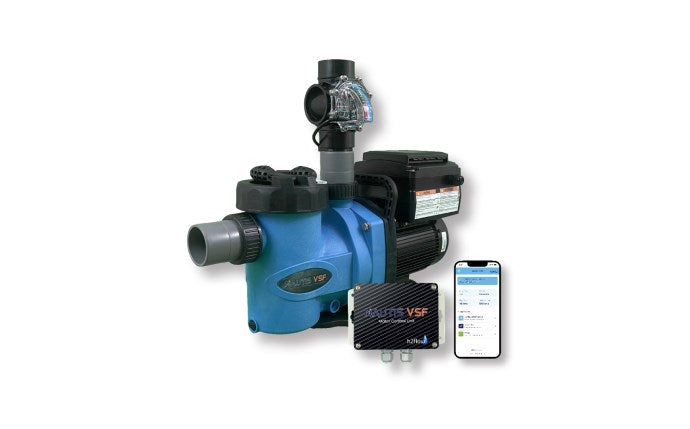

H2Flow Controls NAU-V270 Nautis VSF Pump 2.7HP (2.0 inch) Replacement Pentair WhisperFlo

Product Description

H2flow Controls NAU-V270 is the Nautis VSF 2.7 HP variable-speed pool and spa pump that uses Eco-Flow adaptive flow technology to maintain constant flow via an integrated FlowVis FV-2-N flow meter. The self-priming unit includes the Nautis MCU motor control, quick-disconnect 2.0 inch unions, a serviceable 4-bolt design, LED basket lid light, and the ability to run dry for up to one hour. It operates at 230V and 11.1A and is EnergyStar qualified.

• Adaptive Eco-Flow technology provides constant flow using an integrated FlowVis FV-2-N flow meter (2.0 inch).
• 2.7 HP variable-speed motor with Nautis MCU motor control; 230V input and 11.1 A current rating.
• Self-priming construction with quick-disconnect 2.0 inch unions, 4-bolt serviceable design, LED basket lid light, and can run dry up to one hour.

Product Highlights

2.7 HP variable-speed pool and spa pump with Eco-Flow constant flow, FlowVis FV-2-N meter, Nautis MCU, 2.0 inch unions, EnergyStar qualified.

Product Information

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: NAU-V270
• Country of Origin: United States

Technical Specifications

• Brand: H2flow Controls
• MPN: NAU-V270
• Model Name: Nautis VSF Pump
• Application: Pool, Spa
• Power: 2.7 HP
• Motor Speed: Variable
• Input Voltage: 230V
• Input Current: 11.1 A
• Port Size: 2.0 inches
• Port Connection: Quick-disconnect unions with internal threads
• Flow Meter: FlowVis FV-2-N (for 2-inch pipe)
• Control Unit: Nautis MCU motor control unit
• WEF: 7.8
• HHP: 1.405
• Weight: 48 lbs
• Self-Priming: Yes
• Run Dry Duration: Up to 1 hour
• Construction: 4-bolt serviceable design with lid lock ring and integrated handles
• Factory Testing: Factory wet tested
• Approvals: cUL, Intertek (conforms to NSF/ANSI Std.50), EnergyStar (applicable to 2.7THP model)
