H2Flow Controls NAU-V165 Nautis VSF Pump 1.65THP (2.0 inches Port) replacement for Hayward Super Pump Pentair SuperFlo WhisperFlo

Product Description

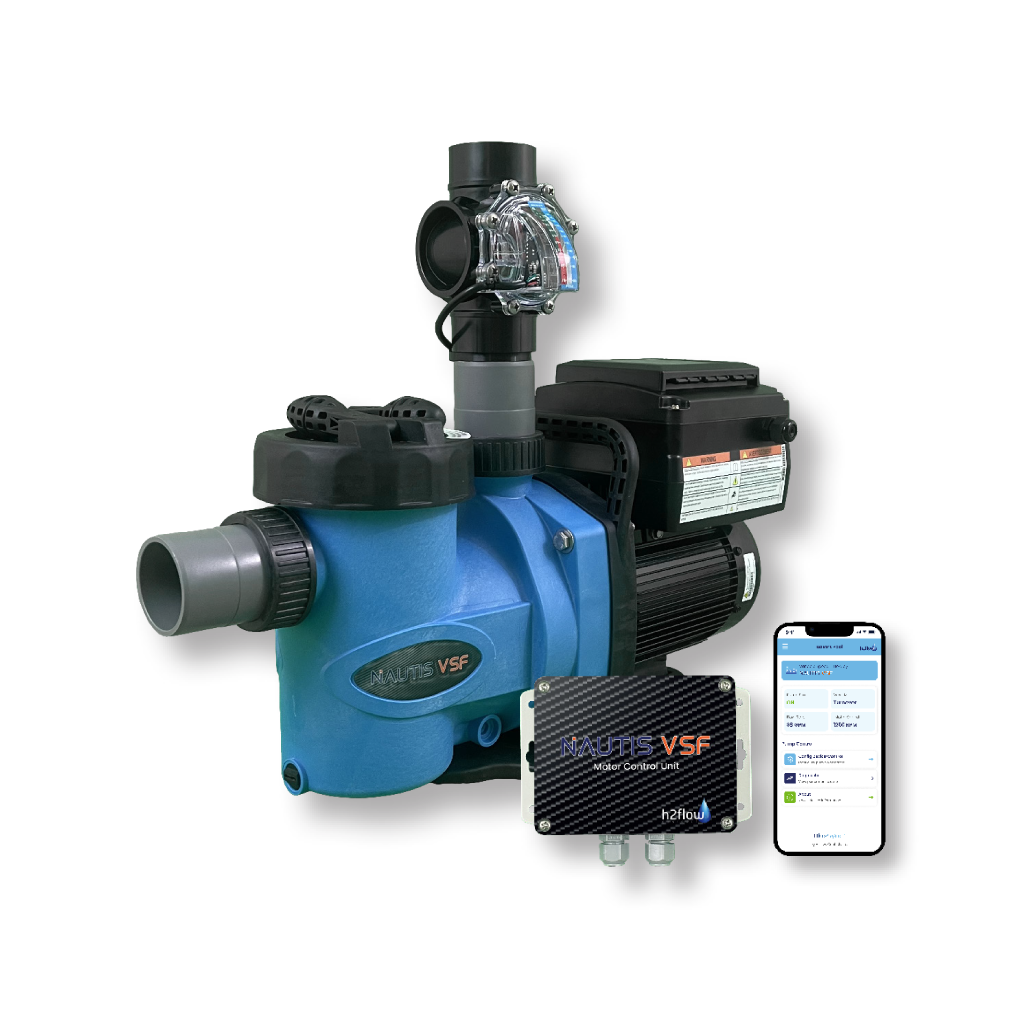

H2Flow Controls NAU-V165 is a Nautis VSF adaptive flow, self-priming variable-speed pump for swimming pools and spas. The unit provides Eco-Flow adaptive flow control for flow-based motor speed adjustment, integrates with BlueSync mobile app, and includes the Nautis MCU motor control unit and a FlowVis FV-2-N flow meter for 2-inch piping.

• Variable-speed, self-priming pump with Eco-Flow adaptive flow control and 1.65 total horsepower
• 2.0-inch ports, 115/230V capability, EnergyStar certification (applies to 1.65THP model), and factory wet tested
• Serviceable 4-bolt design with handle, quick-disconnect unions, LED basket lid light, and up to one hour dry-run tolerance

Product Highlights

Adaptive flow variable-speed pool and spa pump, 1.65THP, 2.0-inch ports, EnergyStar certified, drop-in replacement for common Super Pump and SuperFlo/WhisperFlo models.

Product Information

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: NAU-V165
• Country of Origin: United States

Technical Specifications

• Brand: H2Flow Controls
• MPN: NAU-V165
• Model Name: Nautis VSF Pump
• Total Horsepower: 1.65 THP
• WEF: 8.8 (NAU-V165)
• HHP: 0.940 (NAU-V165)
• Voltage: 115/230V (NAU-V165)
• Amps: 13.6/6.8 (NAU-V165)
• Port Size: 2.0"
• Weight: 44 lbs (NAU-V165)
• Included Control: Nautis MCU motor control unit
• Standard Flow Meter: FlowVis model FV-2-N for 2-inch pipe diameter
• Approvals: cUL; Intertek (conforms to NSF/ANSI Std.50); EnergyStar (applies to 1.65THP and 2.7THP models)
• Features: Eco-Flow adaptive flow control; serviceable 4-bolt design with handle; lid lock ring with handles; quick-disconnect unions; internal threads on suction and discharge; factory wet tested; LED light in basket lid; discrete switch inputs for automation; up to one hour dry-run capability; available riser for direct replacement of WhisperFlo and IntelliFlow models
• Connectivity: BlueSync mobile app integration
• Compatibility: Drop-in replacement for Hayward Super Pump, Pentair SuperFlo, and WhisperFlo
• Manufactured In: United States
