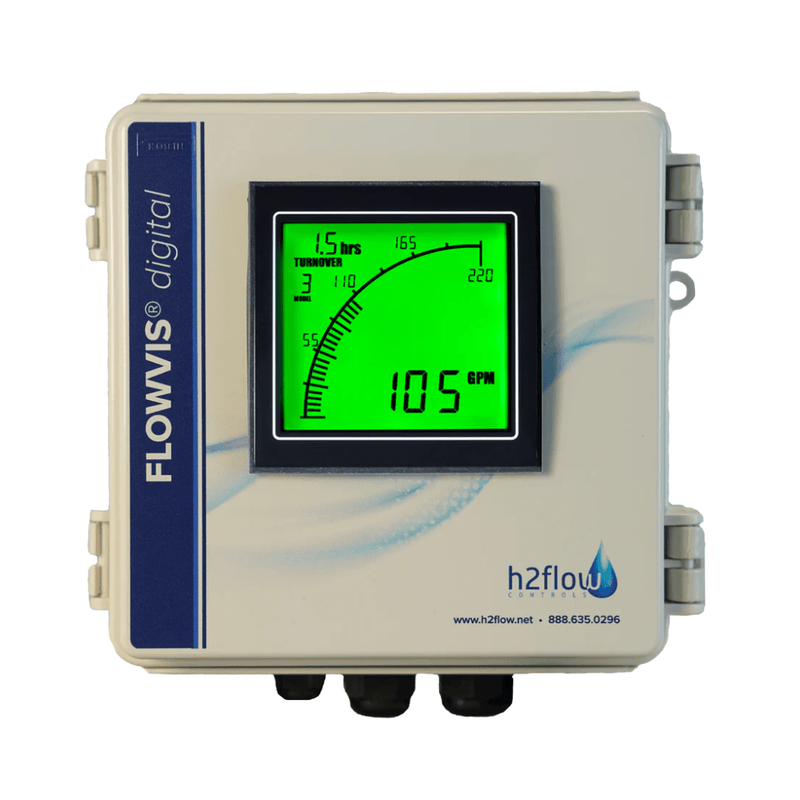

H2Flow Controls fv-d flowvis digital flow meter display 1.5 inches- 8 inches

Product Description

The H2FLOW CONTROLS FV-D FlowVis Digital flow meter is designed for accuracy and reliability. It boasts >98% accuracy and unparalleled reliability. Compatible with all analog FlowVis flow meters, it offers advanced functionality and accessibility. It features pool turnover rate functionality and the ability to interface with other equipment. Manufactured in the USA.

• Designed with accuracy and reliability in mind
• >98% accuracy
• Compatible with all analog FlowVis flow meters
• Ability to interface with a multitude of other equipment

Product Highlights

The FlowVis Digital flow meter offers advanced features, uncompromising build quality, and incredible value. It allows users to set flow rate alarms and offers a remote indication of the flow.

Product Information

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: FV-D
• Country of Origin: USA

Technical Specifications

• Brand: h2flow
• Part No.: FV-6, FV6
• Rating: NEMA 4X / IP66
• Display: LCD
• Sensor Cable Length: 20"
• Power Source: 120-240VAC, 0.5 AMPS
• Power Output: 12 VDC, 1.0 AMPS
• Low Voltage Cable Length: 10 feet
• Accuracy: Model dependent (>98% across the range)
• Analog Output: Scaled to 4mA = zero flow, 20mA = max flow rate limit of installed FlowVis
