H2FLOW Controls fv-6-l Flowvis Flow Meter 6 Inch Lpm

Product Description

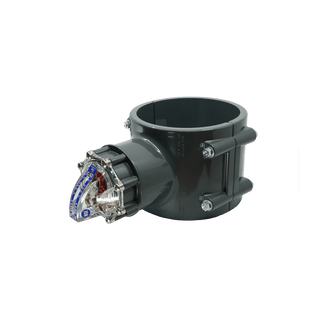

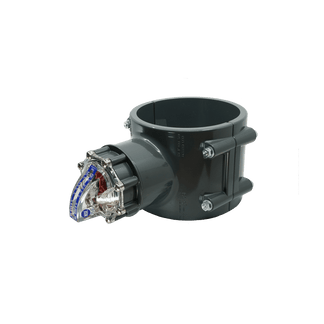

The H2FLOW CONTROLS fv-6-l is a precision inline flow meter designed for accurate flow measurement in gray water and potable water systems. The complete assembly includes a 6-inch saddle clamp sized for Schedule 80 pipe and uses an LPM (liters per minute) scale for readout. Rated to 50 psi, this meter suits residential and commercial plumbing applications where reliable flow data is required. Licensed plumbers and pool service technicians are the primary installers. The patented internal design eliminates the straight-pipe run requirements common with traditional flow meters, making installations in tight mechanical rooms or equipment pads far more practical.

The fv-6-l is suited for pool and spa recirculation systems, irrigation headers, and commercial gray water or potable water distribution lines using 6-inch Schedule 80 PVC pipe. Its ability to mount horizontally, vertically, or inverted gives installers flexibility when pipe routing does not allow for a preferred orientation. This makes it a practical choice on pump discharge lines, filter bypasses, and similar plumbing runs where space constraints limit fitting placement options.

Key Features

• Saddle clamp design fits 6-inch Schedule 80 pipe without cutting the main line for full replacement
• LPM scale provides direct flow readout in liters per minute
• 50 psi pressure rating suitable for standard residential and light commercial water systems
• No straight-pipe run requirement before or after the meter — install next to elbows and other fittings
• Mounts horizontally, vertically, or inverted to accommodate existing pipe layout
• Rated for gray water and potable water service

Compatibility

Designed for use with 6-inch Schedule 80 pipe in gray water and potable water plumbing systems. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the water system completely before mounting the saddle clamp to the pipe. Verify the pipe outside diameter matches the 6-inch SCH80 specification before tightening the clamp assembly. Do not exceed the 50 psi rated working pressure of the meter.

Technical Specifications

• Pipe Size: 6 inches
• Pipe Schedule Compatibility: Schedule 80 (SCH80)
• Scale: LPM (liters per minute)
• Pressure Rating: 50 psi
• Mount Type: Saddle Clamp
• Application: Gray water and potable water

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: fv-6-l
