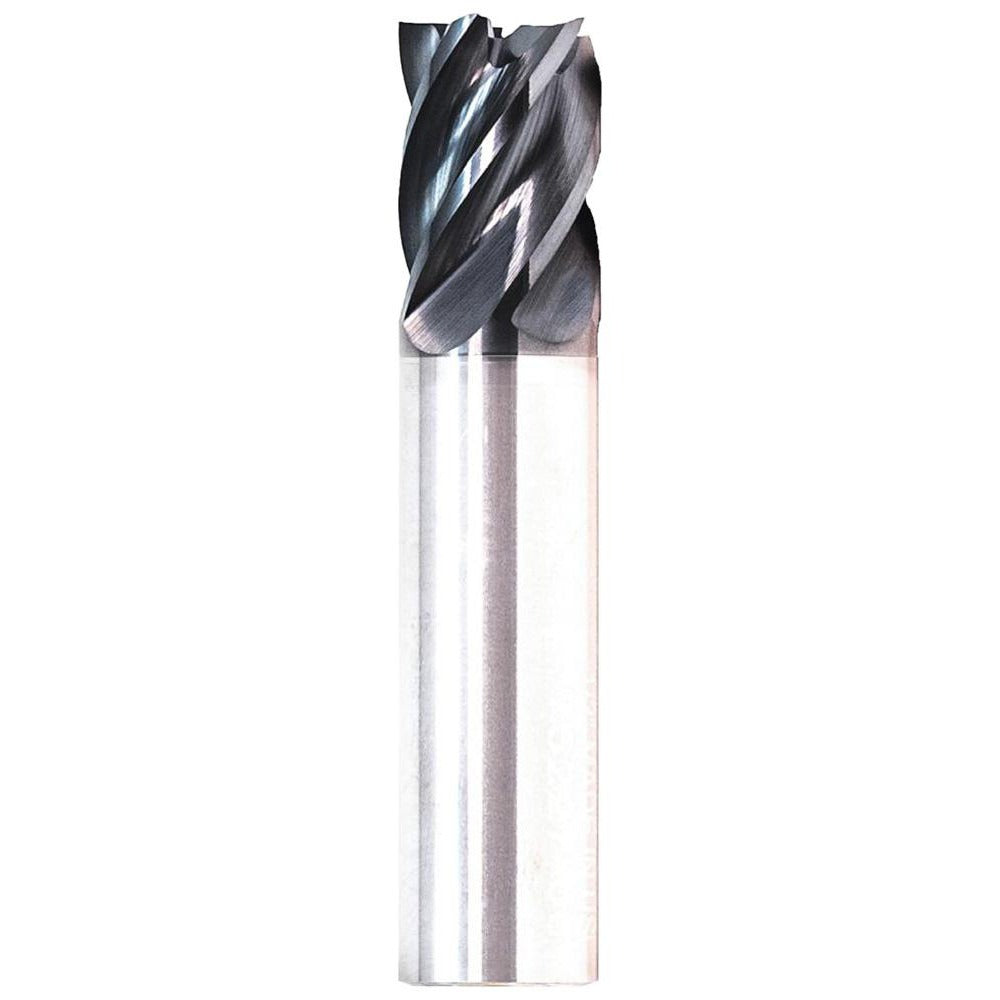

Gws 311987 Corner Radius End Mill 1.25 in 5 Flute Carbide

Product Description

The GWS 311987 is a solid carbide corner radius end mill engineered for demanding material removal in steel, stainless steel, superalloys, and titanium. Built to Series 2205 specifications, it features a 1.25-inch mill diameter, a 0.12-inch corner radius, and five flutes with a variable helix and variable index geometry. The FX3 AlCr-based coating delivers thermal resistance and extended tool life in high-heat cutting environments. At 6 inches overall length with a 2.625-inch length of cut, this single-end tool handles both roughing and finishing passes. It installs in standard end mill holders with a 1.25-inch straight cylindrical shank held to h6 tolerance.

This end mill is suited for CNC machining centers running ferrous and exotic alloys in aerospace, toolroom, die and mold, and general manufacturing applications. The right-hand helical flute geometry with normal pitch supports aggressive material removal rates while the corner radius reduces edge chipping and extends part surface finish quality. Cast iron is listed as a secondary workpiece material. The centercutting design allows plunge entry where the operation requires it.

Key Features

• Solid carbide submicron-grade substrate for rigidity and wear resistance in hard materials
• Variable helix and variable index geometry reduces harmonic chatter during high-feed cuts
• 0.12-inch corner radius protects the cutting edge and improves surface finish at part corners
• FX3 AlCr coating rated for steel, stainless steel, superalloys, and titanium
• Centercutting capable - supports direct plunge milling without a pre-drilled pilot
• Straight cylindrical shank at h6 tolerance for consistent runout in end mill holders

Compatibility

Designed for use with standard end mill holders. Primary workpiece materials are steel, stainless steel, superalloys, and titanium; secondary workpiece material is cast iron. Shank diameter is 1.25 inches with h6 tolerance for collet and hydraulic holder fitment.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Secure the shank fully within the end mill holder to the manufacturer-specified gauge line before tightening; never leave the shank partially engaged. Confirm spindle runout at the tool tip before cutting, as excessive runout accelerates corner radius wear and degrades surface finish. Follow machine tool builder guidelines for tool change lockout and spindle orientation before handling.
