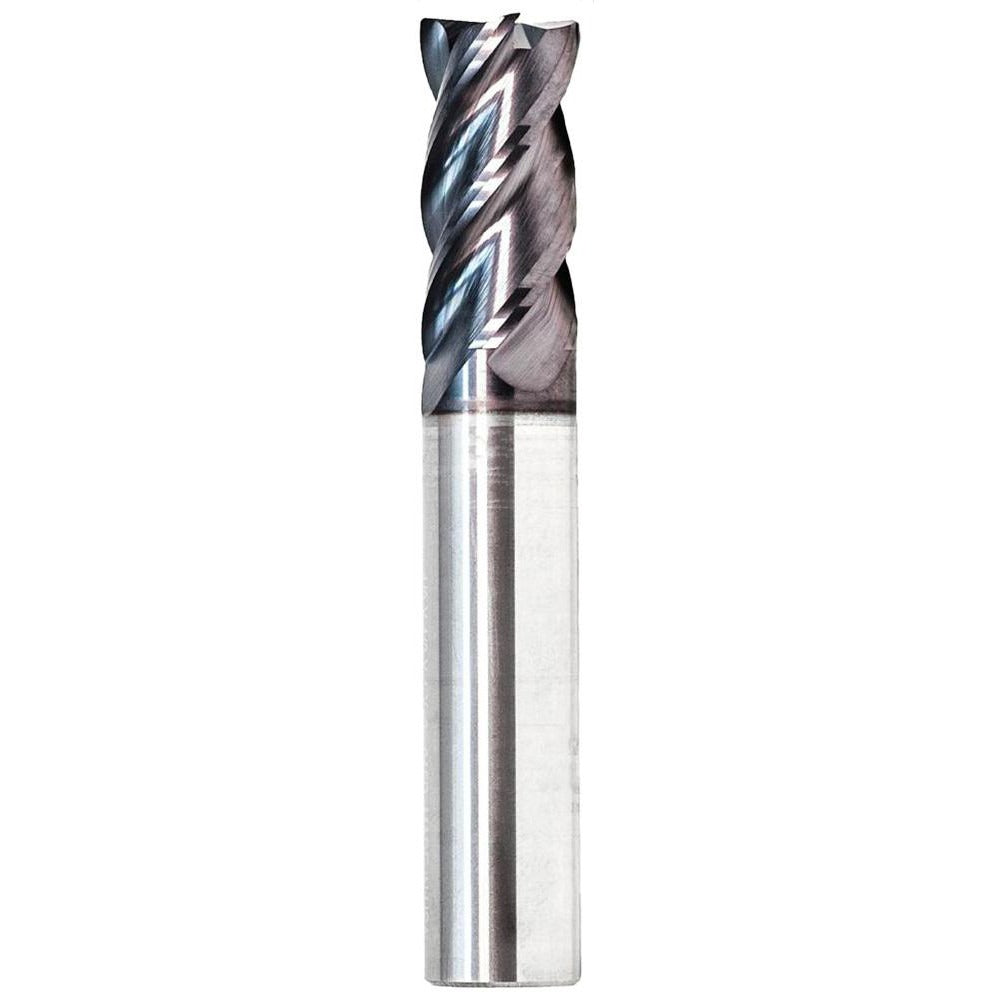

Gws 121428 Corner Radius End Mill 3/16 in 4 Flute Carbide

Product Description

The GWS 121428 is a solid carbide corner radius end mill designed for precision milling in demanding metalworking applications. It features a 3/16 inch (0.1875 inch) diameter with a 0.03 inch corner radius, a 5/8 inch length of cut, and a 2 inch overall length. The 4-flute, single-end geometry supports both roughing and finishing operations on a single tool. Variable index and variable helix angles reduce chatter and improve surface finish at higher feed rates. The straight cylindrical shank measures 3/16 inch in diameter with an h6 tolerance for precise toolholder fitment.

This end mill is suited for machining steel, cast iron, stainless steel, superalloys, titanium, and hard materials. The corner radius geometry reduces edge chipping and extends tool life compared to sharp-corner end mills, making it a practical choice for shops running production runs on difficult alloys. It is centercutting, allowing plunge entry, and the right-hand flute direction and right-hand cutting direction are standard for conventional CNC milling setups. Coolant-through is not supported; external coolant or air blast is the appropriate cooling method for this tool.

Key Features

• Solid carbide submicron-grade construction for rigidity and wear resistance in hard materials
• 0.03 inch corner radius reduces edge stress and chipping on ferrous and exotic alloys
• Variable index and variable helix geometry minimize harmonic vibration and chatter
• Centercutting design allows direct plunge entry without pre-drilling
• Single-end, 4-flute configuration supports both roughing and finishing in one tool
• Compatible with standard end mill toolholders via straight cylindrical shank with h6 shank diameter tolerance

Compatibility

Designed for use with standard end mill toolholders. Primary workpiece materials include steel, cast iron, superalloys, titanium, and hard materials. Secondary workpiece material is stainless steel.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. The tool must be seated fully and evenly in a clean, undamaged toolholder collet before tightening to prevent runout. Verify shank diameter tolerance compatibility with the toolholder before mounting. Always power down the spindle completely and confirm zero rotation before changing or inspecting end mills.
