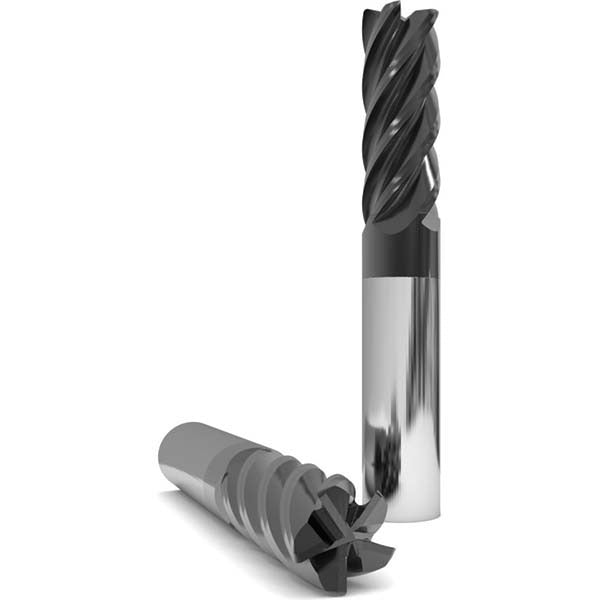

Gws 120969 Square End Mill 3/4 in 5 Flute Solid Carbide

Product Description

The GWS 120969 is a single-end square end mill designed for precision metal removal in demanding milling applications. Built from submicron-grade solid carbide, it measures 3/4 inches in diameter with a 2-1/4 inch length of cut and a 5-inch overall length. The five-flute geometry paired with a 38-degree variable helix delivers improved chip evacuation and reduced chatter at higher feed rates. An nACRo coating protects the cutting edges against heat and wear, extending tool life in abrasive and hard materials. This tool is installed and operated by machinists and CNC programmers working in job shops, production machining environments, and toolroom settings.

The GWS 120969 Series 1035 end mill is suited for milling ferrous and non-ferrous metals where extended reach is not required. The right-hand cutting and right-hand flute direction make it compatible with conventional CNC machining centers and manual knee mills running standard spindle rotation. The upcut flute geometry pulls chips away from the workpiece, reducing re-cutting and improving surface finish. Its 3/4-inch square shank seats cleanly in standard ER and side-lock toolholders of matching bore size.

Key Features

• Submicron solid carbide construction for rigidity and edge retention
• Five flutes with 38-degree variable helix for reduced vibration and improved chip flow
• nACRo coating provides thermal and abrasion resistance in hard and abrasive materials
• 2-1/4 inch length of cut supports deeper axial engagement without extended-reach tooling
• Right-hand cut, right-hand flute, upcut geometry for standard CNC spindle configurations
• Square shank compatible with common ER collet and side-lock toolholder systems

Compatibility

Designed for use in standard CNC machining centers and manual mills accepting a 3/4-inch square shank. Fits ER collet chucks and side-lock holders bored to 3/4 inches.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. The machine spindle must be fully stopped and the tool changer or spindle lock engaged before seating or removing the end mill. Ensure the shank is clean and the toolholder bore is free of chips or coolant residue before clamping. Follow the toolholder manufacturer's torque specifications for collet nuts or set screws.
