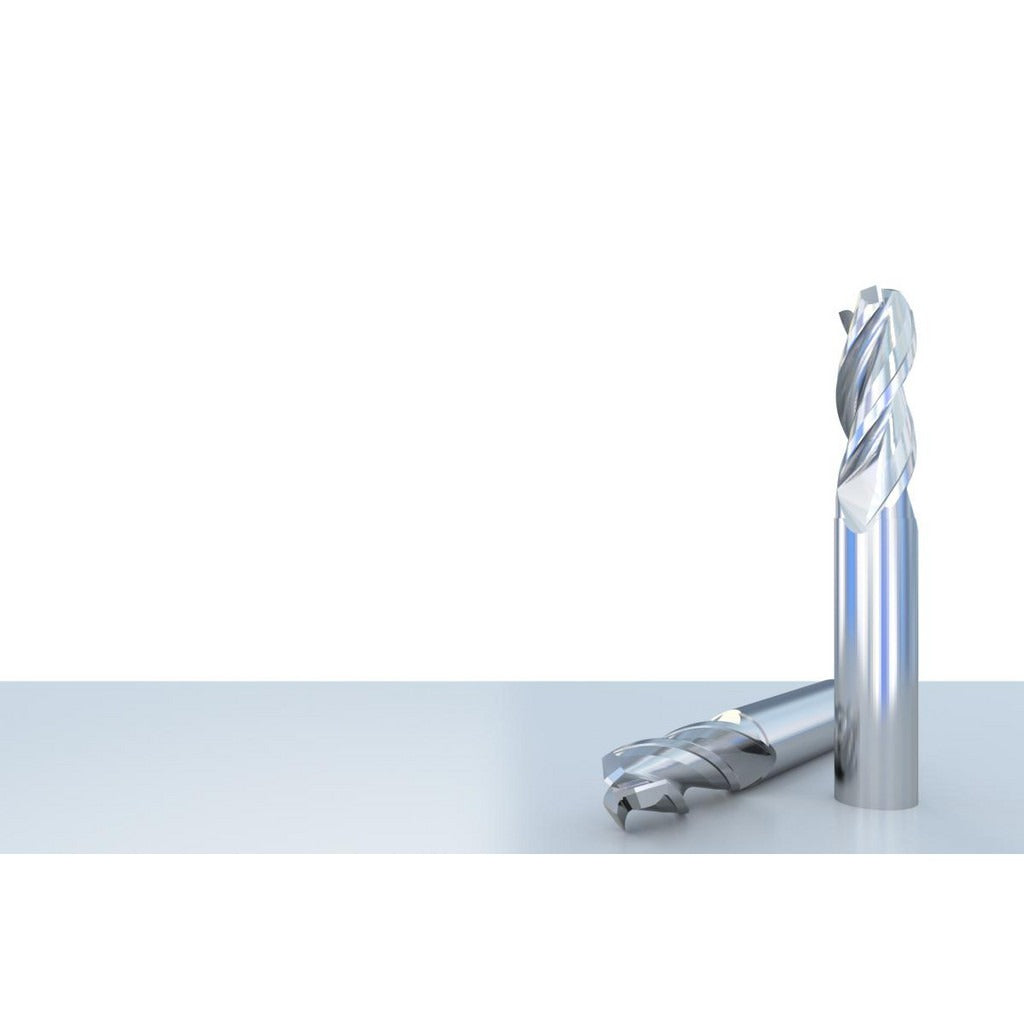

Gws 118024 Square End Mill 0.3 in 3 Flute Solid Carbide

Product Description

The GWS 118024 is a three-flute solid carbide square end mill from the Armory series, designed for precision milling operations in metalworking and machining applications. It has a 0.3 inch cutting diameter and a 0.75 inch length of cut, making it well suited for slotting, profiling, and peripheral milling on ferrous and non-ferrous materials. The substrate is submicron-grade carbide, which supports edge sharpness and wear resistance at higher feed rates. The bright/uncoated finish keeps the tool ready to use out of the box without additional prep. This tool is installed and operated by machinists and CNC programmers in job shop and production environments.

The GWS 118024 is used in vertical and horizontal milling machines, CNC machining centers, and manual knee mills. Its 37-degree right-hand helix and right-hand cutting direction produce smooth chip evacuation during climb and conventional milling passes. The single-end configuration and 5/16 inch shank diameter allow it to fit standard collet systems and end mill holders. It is appropriate for light to moderate material removal on aluminum, steel, and similar machinable alloys where a small-diameter, high-precision tool is required.

Key Features

• Submicron solid carbide substrate for edge retention and rigidity
• Three flutes with a 37-degree right-hand helix for efficient chip evacuation
• Centercutting geometry allows plunge entry into the workpiece
• Bright/uncoated finish - no post-purchase prep required
• Single-end design with a 5/16 inch shank for standard collet compatibility
• GWS Armory series construction for consistent dimensional tolerance

Compatibility

Designed for use in standard ER collets, milling chucks, and end mill holders accepting a 5/16 inch shank diameter on CNC and manual milling machines.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the spindle before seating or removing the tool from the holder. Ensure the collet bore is clean and free of chips before tightening to the manufacturer specification of the tool holder being used. Verify runout with a dial indicator after installation before beginning a cut - excessive runout shortens tool life and reduces surface finish quality.
