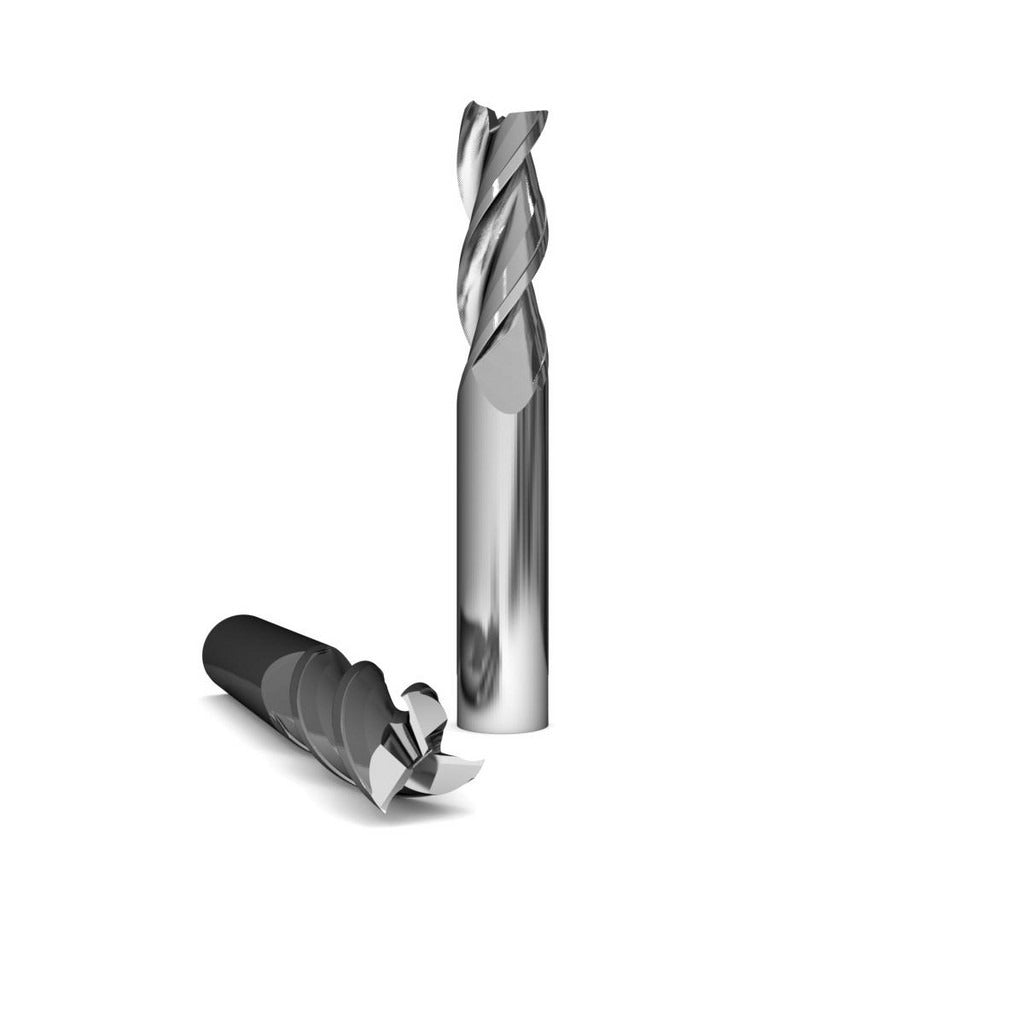

Gws 105059 Square End Mill 1/8 in 3 Flute Solid Carbide

Product Description

The GWS 105059 is a solid carbide square end mill designed for high-performance milling applications. It features a 1/8 inch cutting diameter, a 1/2 inch length of cut, and three right-hand flutes with a 37-degree helix angle. The ZrN (zirconium nitride) coating reduces friction and heat buildup, extending tool life in demanding cuts. Built from submicron-grade solid carbide, this end mill delivers the rigidity and edge retention needed for precision work in aluminum and other non-ferrous materials. It is a single-end, center-cutting tool with right-hand flute direction and an overall length of 1.5 inches.

This end mill is suited for CNC machining operations where tight tolerances and clean finishes are required. The 37-degree helix and upcut flute geometry are optimized for aluminum and similar soft-to-medium materials, promoting efficient chip evacuation and reduced built-up edge. The 1/8 inch shank diameter matches the cutting diameter, making it compatible with standard collet systems on vertical machining centers and CNC routers. It is used in job shops, tool rooms, and production environments where small-diameter precision milling is routine.

Key Features

• 1/8 inch cutting diameter with 1/2 inch length of cut for precise small-feature milling
• 3 right-hand flutes with 37-degree helix angle for efficient chip removal
• ZrN coating reduces heat and friction, extending tool life in non-ferrous applications
• Submicron-grade solid carbide construction for superior hardness and edge retention
• Center-cutting geometry allows direct plunge entry
• Upcut flute direction promotes chip evacuation away from the workpiece

Compatibility

Designed as an OEM-style replacement end mill for use with standard 1/8 inch collet systems on CNC machining centers and CNC routers. Part of the GWS Series 1025 Alumigator line.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the spindle before changing tooling. Seat the shank fully and squarely in the collet before tightening to the tool holder manufacturer's specified clamping procedure. Inspect the cutting edges for chips or wear before each use, and verify runout with a dial indicator after tool changes to ensure concentricity.
