Guy Gray 82413 3-1/8 x 8-5/16 x 7-7/8 in. Ice Maker F1807 Supply Box

Product Description

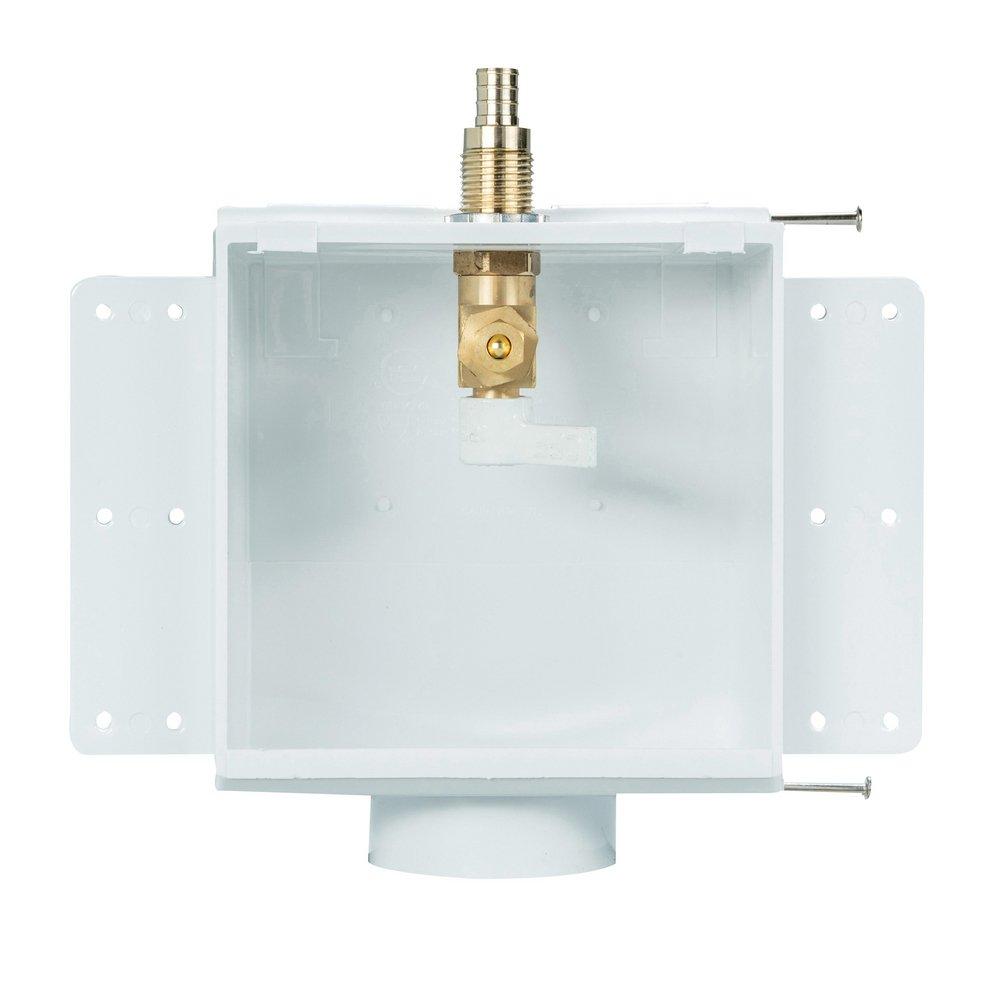

The Guy Gray 82413 is a supply box designed for ice makers. The dimensions are three and one-eighth inches wide by eight and five-sixteenths inches tall and seven and seven-eighths inches deep. This unit includes a snap-on frame and a forward-mounted valve for easy on and off operation. The box is suitable for various connections, including half-inch MIP, CPVC, and Rehau Everloc+ connections.

• Fire-rated recessed PVC resin design
• Includes an intumescent pad for safety
• Certified for valve compliance with ASSE 1010 and NSF standards

Product Highlights

Ideal for use with ice makers, washers, and other outlets. Comes with preloaded nails for quick installation and is Warnock Hersey certified.

Product Information

Standard Information

• Brand: Guy Gray
• MPN: 82413

Technical Specifications

• Faceplate dimensions: 8-5/16 inches wide x 7-7/8 inches high
• Rough opening: 6 inches wide x 3-1/8 inches deep x 6 inches high
• Material: PVC resin
• Certification: ETL Certified
• Compliance: ASSE 1010, NSF61-NSF/ANSI 372, ASME A112.18.1
