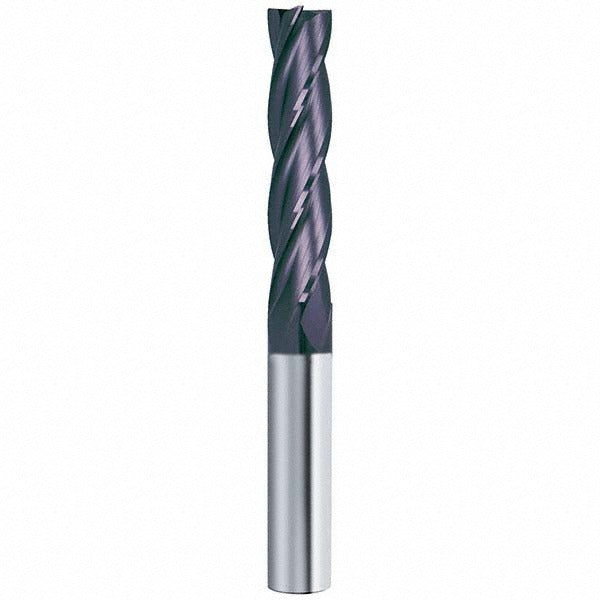

Guhring 9199570047600 Square End Mill 3/16 in 4 Flute Carbide

Product Description

The GUHRING 9199570047600 is a solid carbide square end mill engineered for precision milling in demanding metalworking applications. It features a 3/16 inch cutting diameter, four helical flutes, and a 30-degree helix angle that promotes efficient chip evacuation and smooth cutting action. The tool carries a FIREX coating, a proprietary hard finish that extends tool life and reduces heat buildup at the cutting edge. With a 3/4 inch length of cut and a 2.5 inch overall length, this is a single-end, centercutting tool capable of plunge entry and conventional or climb milling. It is sized for light to medium material removal in ferrous and non-ferrous stock.

This end mill is suited for CNC machining centers, knee mills, and manual mills where a 3/16 inch tool path is required. It handles slotting, profiling, and pocketing operations on steel, stainless, cast iron, aluminum, and similar engineering materials. The right-hand flute direction and right-hand cutting geometry are standard for most vertical milling setups. The 3/16 inch shank diameter matches the cutting diameter, making it compatible with standard collet chucks and end mill holders in that bore size. It is appropriate for job shops, production machining floors, and toolroom applications.

Key Features

• FIREX proprietary coating for extended tool life and thermal resistance at the cutting edge
• Four right-hand helical flutes with 30-degree helix angle for efficient chip evacuation
• Centercutting geometry allows direct plunge entry without a pre-drilled pilot hole
• Solid carbide construction provides rigidity and wear resistance in hard materials
• Single-end design with a 3/4 inch length of cut suitable for standard depth slots and profiles
• Right-hand cutting direction compatible with standard CNC and manual milling spindles

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard 3/16 inch collet chucks and end mill holders on CNC machining centers and conventional milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully into the collet or end mill holder to the recommended engagement depth before tightening. Verify spindle speed and feed rate against published cutting data for the workpiece material and coating type before starting the cut. Inspect the cutting edges for chips or wear before each use and replace the tool if damage is observed.
